6

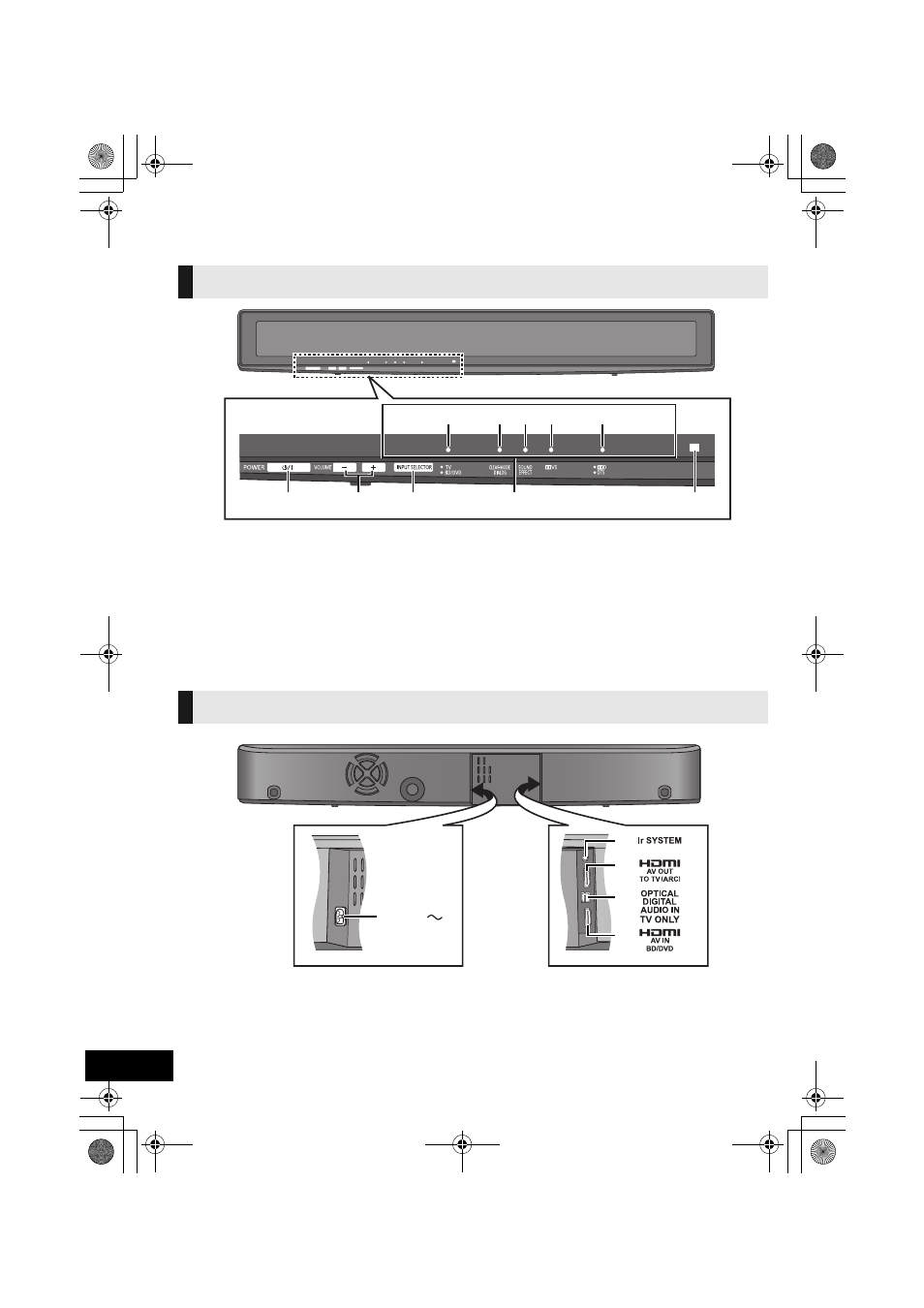

Control reference guide
1 Standby/on switch (POWER Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Adjust the Volume of this unit
3 Select the source
“TV”
!# “BD/DVD”
4 LED status indicators ( > 12, 13)
A Audio source indicator
B Clear-mode Dialog indicator
C Sound Effect indicator
D Dolby Virtual Speaker indicator
E Audio format indicator
5 Remote control signal sensor
Remote control operation range
Distance:
Within approx. 7 m (23 ft.)
Angle:
Approx. 10 o up and 30 o down, 30 o left and
right
1 AC IN terminal ( > 11)
2 Ir SYSTEM terminal
(Only for use with the optional IR Blaster. (
> 8))
3 HDMI AV OUT terminal ( > 10)
4 OPTICAL DIGITAL AUDIO IN terminal ( > 10)
5 HDMI AV IN terminal ( > 11)
Main unit (Front)
1 2 3 5 4
    
Main unit (Rear)
1
AC IN
2
3
4
5
