WHEELS & TIRES
KEY
PART
NO.
NO.
DESCRIPTION
1
59192
Cap Valve Tire
2
65139
Stem Valve
3
106222X
Tire F Ts 15 X 6 0 - 6 Service
4
59904
Tube Front (Service Item Only)
5
106732X427 Rim Asm 6"front White Service
6
278H
Fitting Grease (Front Wheel Only)
7
9040H
Bearing Flange (Front Wheel Only)
8
106108X427 Rim Asm 8"rear White Service
9
106268X
Tire R Ts 18x9.5-8 C Service
10
7152J
Tube Rear (Service Item Only)
11
104757X428 Cap Axle Blk 1 50 X 1 00
- -
144334
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY
PART
NO.
NO.
DESCRIPTION
KEY
PART
NO.
NO.
DESCRIPTION
12
173493
Decal Fender
14
160396
Decal V-belt Schematic 42"
16
145005
Decal Battery Danger/Poison
20
176396
Decal HP Engine
- -
138311
Decal Lift Handle
- -
133671
Pad Footrest
- -
176038
Manual Owner’s English
- -
176039
Manual Owner’s French
1
157163
Decal Instruction Operat English
2
158168
Decal Ins Strg Wh
3
158037
Decal Hood Rh
4
158038
Decal Hood Lh
6
170563
Decal, Warning
9
158166
Decal Fender Logo
10
157140
Decal Danger English
11
101892X
Decal Clutch/brake English
6
2
1
5,8
4,10
3,9
11
7

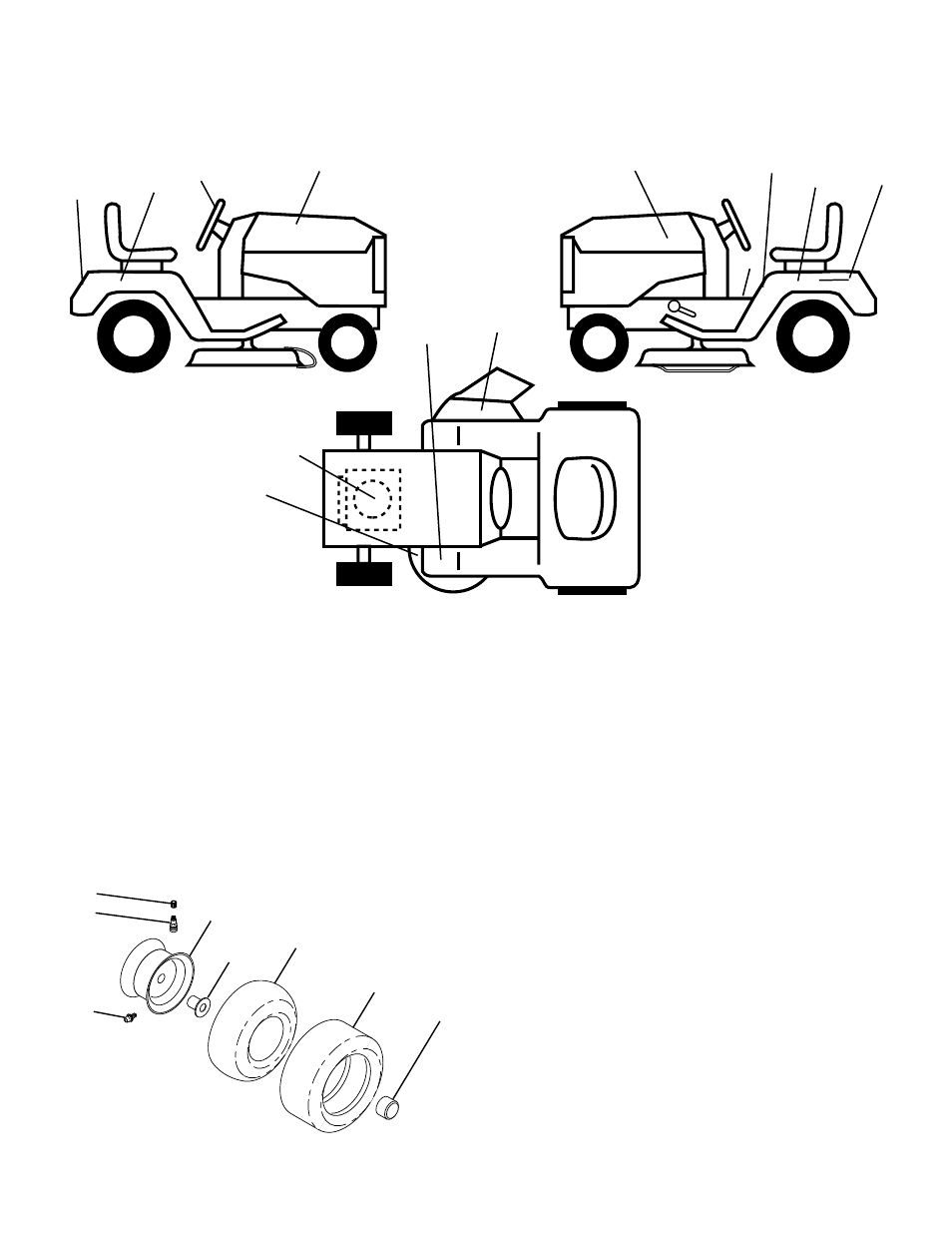

REPAIR PARTS
TRACTOR - - MODEL NUMBER PO14542B
DECALS
16
20
2
3
6
9
12
4
10
12
1
11
14
