9
English
DIG OUT OPT OUT
DIGITAL AUDIO OUT
PCM/MPEG2/AC-3/DTS
I
AUX/VCR
IN
II
TV OUT
MAINS
RIGHT SUBW.
REAR
RIGHT
FRONT
LEFT CENTER
MULTICHANNEL AUDIO OUT
REAR
LEFT
FRONT
L R (CVBS)
VIDEO OUT AUDIO OUT S-VIDEO OUT
(Y/C)
Y C B C R
MAINS (AC)
– connect to power source
OPT OUT (Digital audio out jack)
– connect to digital (optical) equipment
DIG OUT (Digital audio out jack)
– connect to digital (coaxial) equipment
Y C B C R (Video Out)
– connect to TV with Y C B C R inputs
TV OUT (TV)
– connect to TV with SCART
AUX/VCR IN (SCART)
– connect to VCR
S-VIDEO OUT (Y/C)
– connect to TV with S-Video (Y/C) inputs
VIDEO OUT (CVBS)
– connect to TV with CVBS video inputs
MULTICHANNEL AUDIO OUT
(For connection to a multichannel receiver)
– center speaker connection
– subwoofer connection
– front speakers connections
– surround speakers connections
AUDIO OUT (Left/Right)
– connect to amplifier, receiver or stereo system
Caution: Do not touch the inner pins of the jacks
on the rear panel connectors. Electrostatic
discharge may cause permanent damage to the
unit.
F
UNCTIONAL
O
VERVIEW

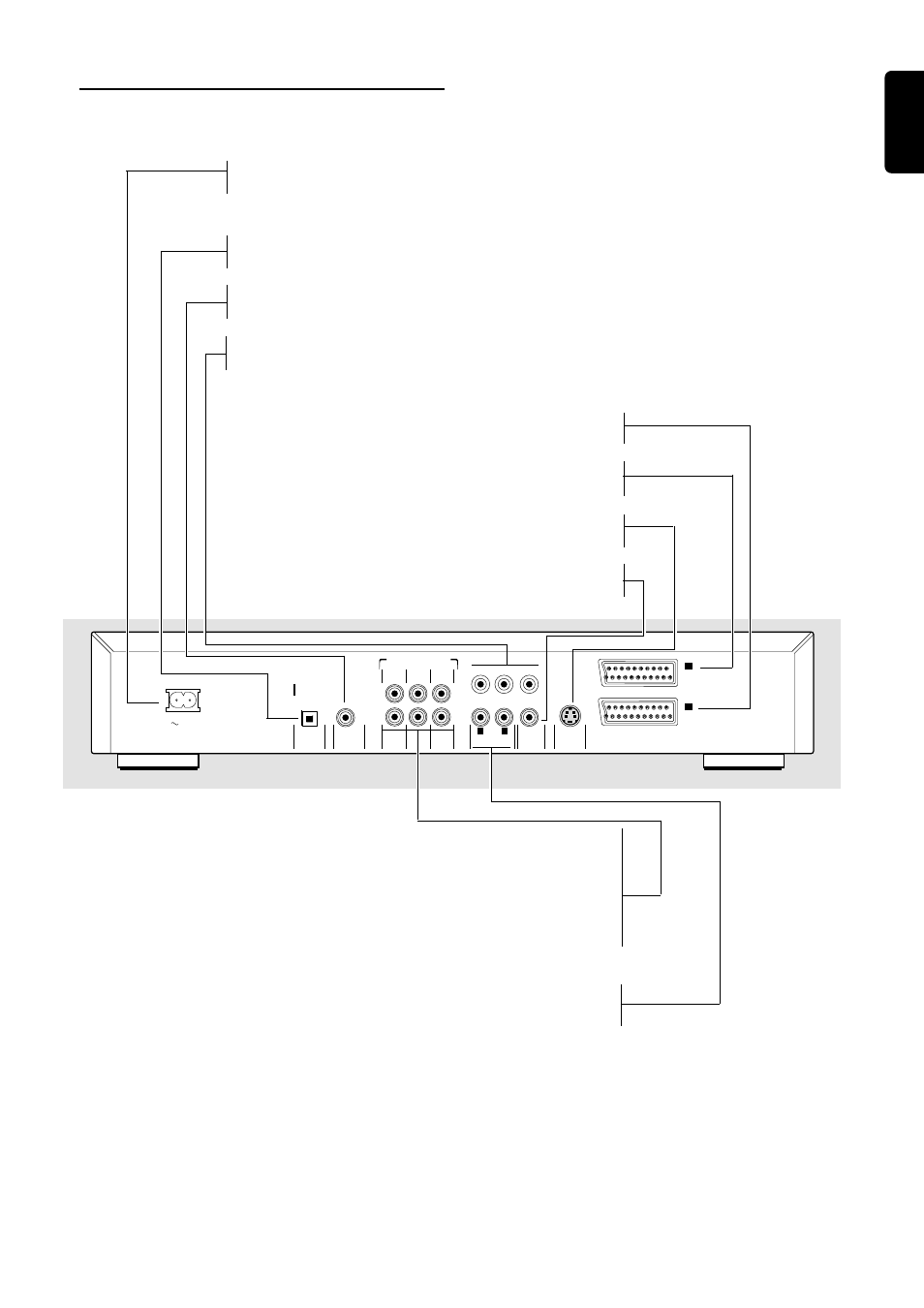

Rear panel
