S3.15 Leg Press Option Assembly Instructions
page 8
1 2 3 4 5 6
2. Assemble the Seat Pads and
Handle
A. Thread the T-handle into the Seat Frame and
wrench tighten.
B. Determine which Seat Pad you want to use as the
Back Pad. Attach it to the Seat Bracket Support
using
two 1-inch zinc bolts
two flat zinc washers
Wrench tighten.
C. Lift the T-handle and slide the Back Pad out of
the way to mount the Seat Pad and Handlebar.
D. Attach the Handlebar to the side of the Seat Frame
using
one 4
¹⁄₄-inch bolt
two flat washers
one locknut
Wrench tighten.
E. Secure the base of the Handlebar using
one 2 ¹⁄₂-inch bolt
two flat washers
one locknut
Wrench tighten.
F. Attach the Seat Pad to the Seat Frame using
two 2½-inch bolts
two flat washers
Wrench tighten.

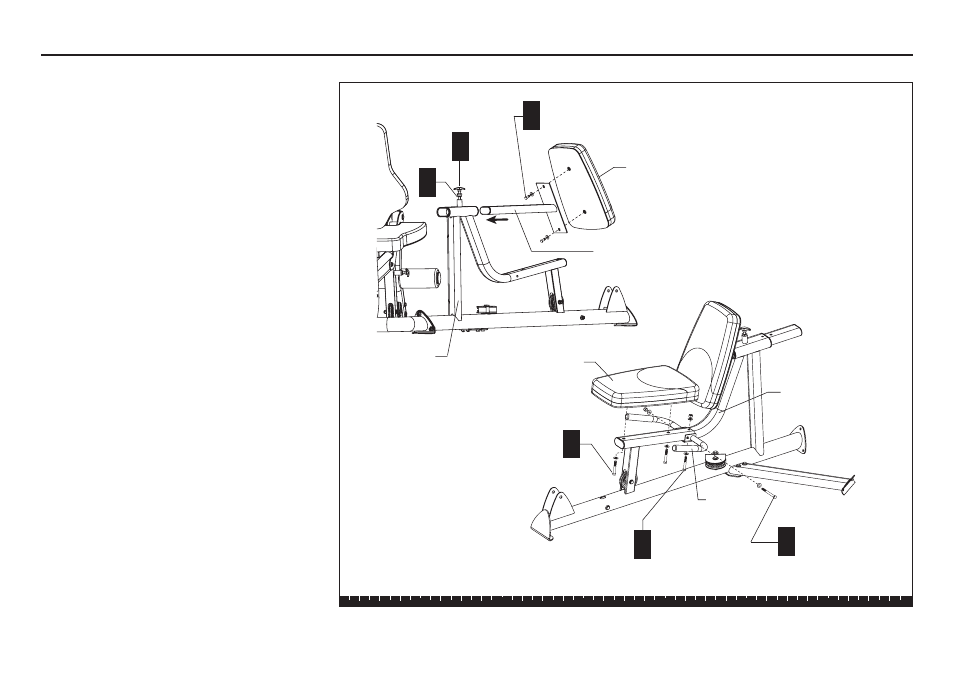

Step 2. Assemble the Seat Pads and Handle
A
1 - 4¹₄" bolt
2 - washers
1- locknut
B
2 - 1" zinc bolts
2 - zinc washers
D
T-handle
1 - 2¹⁄₂" bolt
2 - washers
1- locknut E
2 - 2½" bolt
2 - washers F
Back Pad
Seat Bracket Support
Seat Pad
Handlebar
Seat Frame
C
Seat Frame
