IntelliFlo Installation and User’s Guide

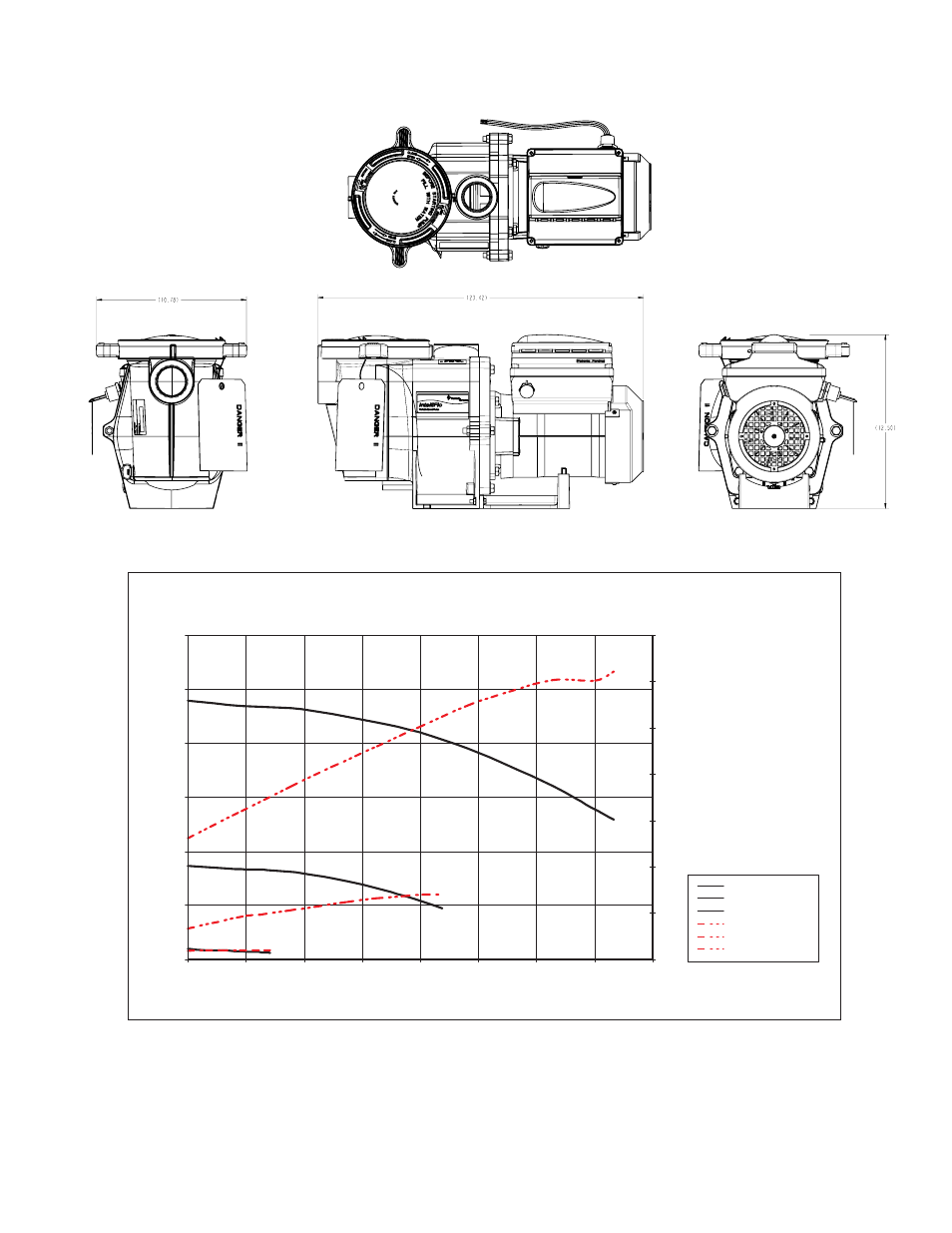

IntelliFlo Pump Dimensions
IntelliFlo Electrical Specifications
Circuit Protection: Two-pole 20 AMP device at the Electrical Panel.
Input: 230 VAC, 50/60 Hz, 3200 Watts
Intelliflo Flow and Power vs Flow Pump Curve
IntelliFlo ®
Flow and Power vs. Flow
