SPECIFICATION
1
RDM
PAUSE
2
RPT
MTL
SCN
3
4
5
AMS
6
TA
+
-
-
BD
+
SEL
-
TA
CD
PWR
CD
LUD
FULL LOGIC CASSETTE/RECEIVER/CD-R/W PLAYBACK HIGH POWER 35WX4
FF
TUNE
SEEK
TRACK
REW
CD - CH
DISC
+
-
-
DISC
POP
ROCK
FLAT
CLASS
LOC
LUD
WF
INT
RPT
RDM
MTL
MUT
CH
1
2
3
4
5
6
7
8
9
10
20
11
12
13
14
15
16
17
18
19

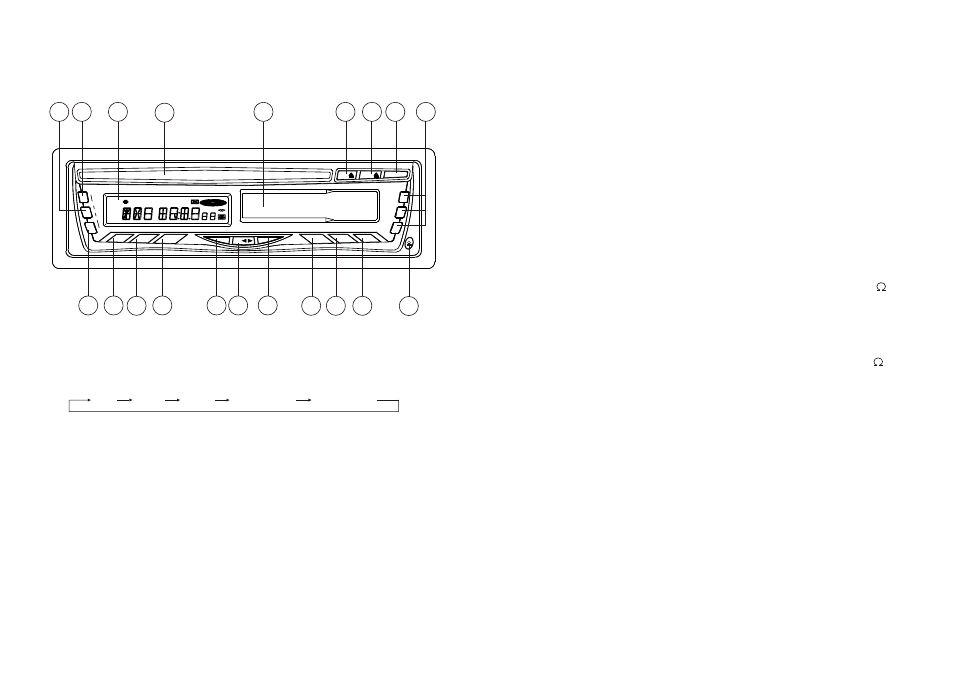

LOCATION AND FUNCTION OF CONTROLS
1. BAND BUTTON
Press it to switch from tape, CD player or CD changer mode to radio, and
the LCD screen will be shown as below:
FM 1 FM 2 FM 3 MW(AM) 1 MW(AM) 2
2.19. TUNE/SEEK/TRACK UP OR DOWN, FF/RW BUTTONS
In radio mode, press the + or - button, it will start automatic tuning and
stop at the next receivable station; press the + or - button for more than
2 seconds to research for the higher or lower frequency station.
In tape mode, press the + or - button to fast forward or rewind the tape,
and press TAPE button to resume normal tape playing.
In CD player or CD changer mode, press the + or - button to skip to the
beginning of the next track or one of the track currently playing. Press the
- button twice to skip to the beginning of the previous track. Press and
hold the + or - button for more than 2 seconds to search quickly (with
sound) in the forward or reverse direction, and press it again to resume
normal playing.
3. LCD (LIQUID CRYSTAL DISPLAY)
WOOFER
GENERAL
Power Supply The Main Unit..................DC 13.8 Volts.Negative Ground
Maximum Output Power........................................................4 x 50W
Unit Dimension.............................................178(W) x 167(D) x 50(H)
FM TUNER SECTION
Frequency Range.......................................87.5MHz - 108.0MHz(USA)
Usable Sensitivity......................................................................10dB
Frequency Response(+/- 3dB)......................................50Hz - 12.5KHz
I.F. Rejection...........................................................................100dB
Image Rejection.........................................................................65dB
Signal-to-Noise Ratio..................................................................60dB
Selectivity.................................................................................65dB
Stereo Separation.....................................................................30dB
Capture Ratio.............................................................................2dB
Antenna Impedance....................................................................75
AM TUNER SECTION
Frequency Range..........................................530KHz - 1720KHz(USA)
Usable Sensitivity(S/N 20dB).....................................................20uV
I.F. Rejection.............................................................................80dB
Image Rejection........................................................................75dB
Antenna Impedance...................................................................75
TAPE SECTION
Wow&Flutter............................................................................0.1%
S/N Ratio(Normal)....................................................................52dB
Separation................................................................................50dB
Frequency response.......................................................50Hz - 15KHz
CD SECTION
Disc size.......................................................................................5"
Channels...................................................................2-channel stereo
Sampling frequency...............................................................44.1KHz
D/A converter...................................................................Twin. 1- bit
Pickup...........................................Optical 3-beam semiconductor laser
Output filter.............................................................................Active
Frequency response........................................................5Hz - 20KHz
Dynamic range..........................................................................85dB
Signal-to-noise ratio...................................................................90dB
Wow and flutter..............................................Below measurable limits
Channel separation(1 KHz).........................................................85dB
