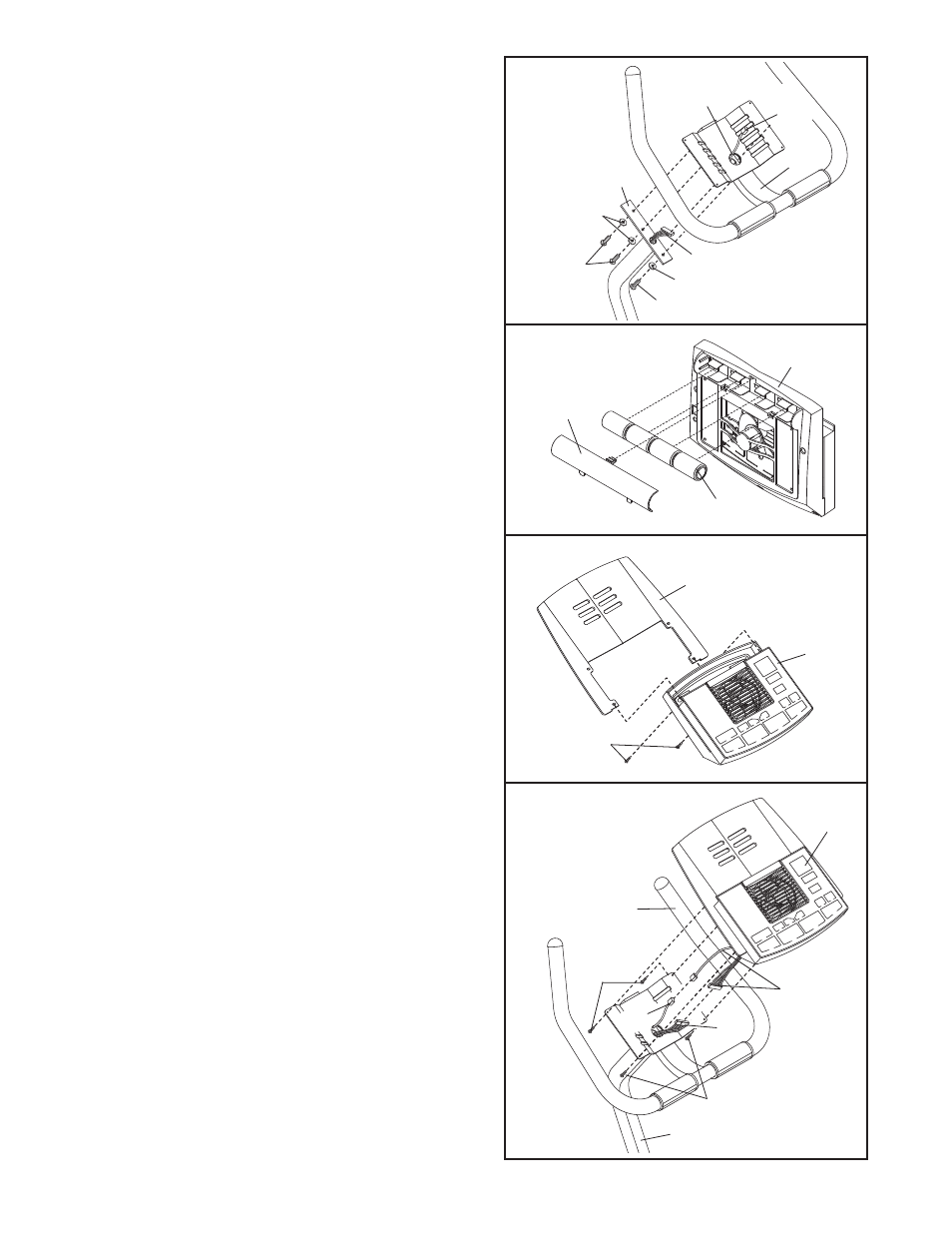

4. While another person holds the Handlebar (7) near
the Handlebar Post (6), feed the Upper Wire
Harness (16) and the Pulse Sensor Wire (45) up
through the indicated hole in the Handlebar. Attach
the Handlebar to the Handlebar Post with three
M8 x 25mm Button Screws (19) and three M8 Split
Washers (28).
6. Insert the Bookrack (8) into the slots in the Console
(9). Attach the Bookrack with two M4 x 25mm
Screws (20). Be careful not to pinch the wires in
the Console.
8
20
9
4
6
7. While another person holds the Console (9) near
the Handlebar (7), connect the Pulse Sensor Wire
(45) and the Upper Wire Harness (16) to the corre-
sponding wires on the Console.
Insert all excess wiring downward into the
Handlebar Post (6). Attach the Console (9) to the
Handlebar (7) with four M4 x 16mm Screws (21).
Be careful not to pinch the Pulse Sensor Wires
(45) or the Upper Wire Harness (16).
7
6
Console
Wires
9
21
21
7
6
28
19
19
28
16
7
Hole
45
16
45
5. The Console (9) requires four “D” batteries (not
included); alkaline batteries are recommended.
Press the tab on the battery cover and remove the
battery cover. Press four batteries into the battery
clips; make sure that the batteries are oriented
as shown by the diagram inside the battery
clips. Then, reattach the battery cover.
9
Battery
Cover
Batteries
5
