Quick Reference Guide 3

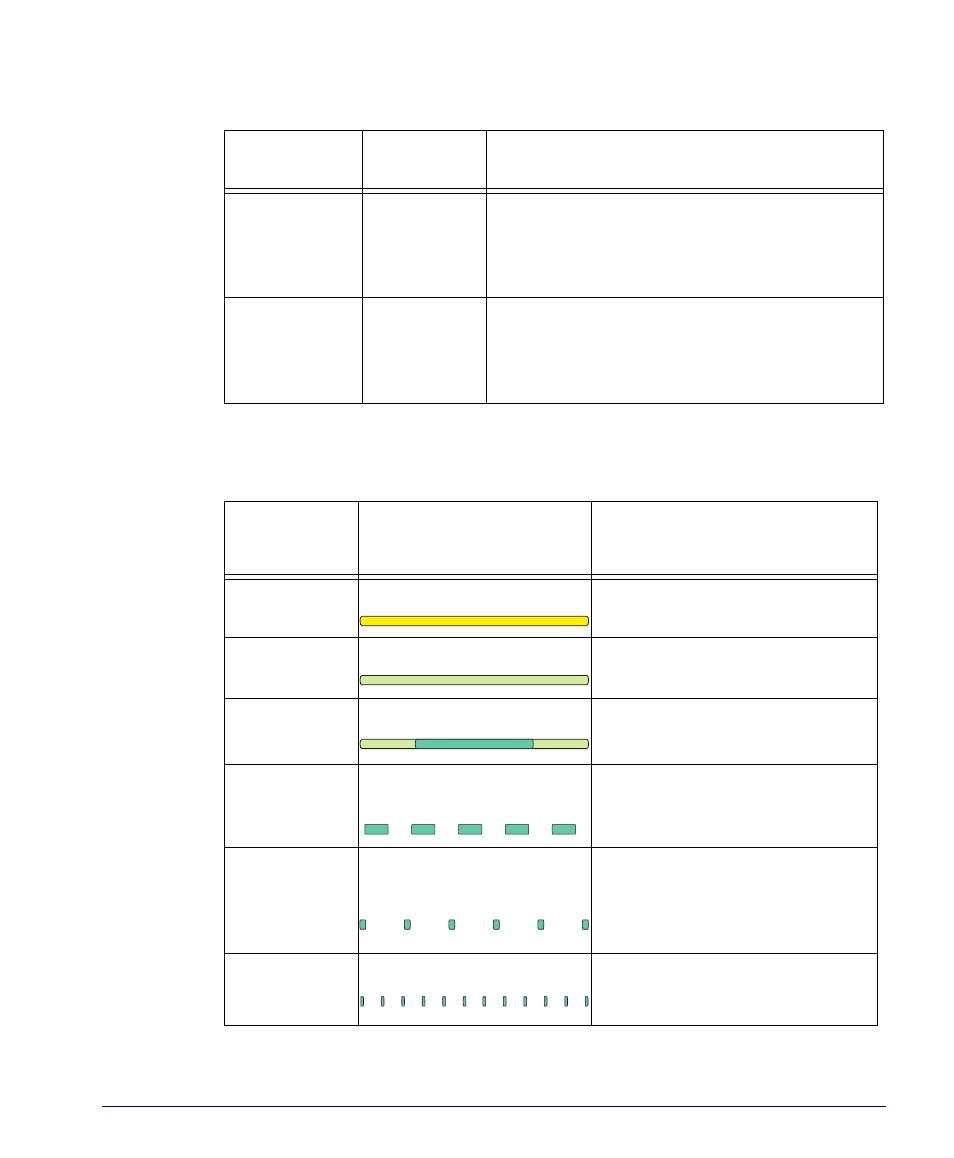

Table 1. Scale Zero Push Button Functions
Table 2. Green and Yellow LED Functions
PRESS
DURATION
FUNCTION COMMENT
Momentary Zero Scale
When programmed to do so, the yellow LED should be
lit when no weight is on the scale, indicating scale at
zero. If it is not, press the switch to zero the scale. The
unit will sound a “click” upon pressing the button.
4 Seconds
Scale Diag-
nostics Mode
a
a. By standard default, this function is normally disabled to prevent accidental activation
by users.
This mode allows system support personnel to trouble-
shoot problems with the scale. Momentarily press the
Scale Zero Push Button or cycle power to exit Scale
Diagnostics Mode.
LED
INDICATION
DURATION COMMENT
Scale at Zero
a
Yellow LED on steady The scale is at rest and reads zero
weight.
Scanner Active
a
Green LED on steady and dim The scanner is ready for operation.
Scanning is immediately available.
Good Read
Indication
a
Green LED - bright flash Indicates a bar code has been read
and decoded.
Program Mode
Indication
Green LED - Continuous flash-
ing Indicates the scanner is in Label Pro-
gramming Mode. Cycle power to exit
Programming Mode.
Sleep Mode
Indication
Green LED blinks at a
2-second rate
The scanner motor and/or laser have
automatically switched off and the unit
has entered Sleep Mode due to
extended inactivity.
Host Disabled
1 second off, 1/10 second on
Host has disabled scanning.
