Parasound HCA-2200II - Manual (Page 3)

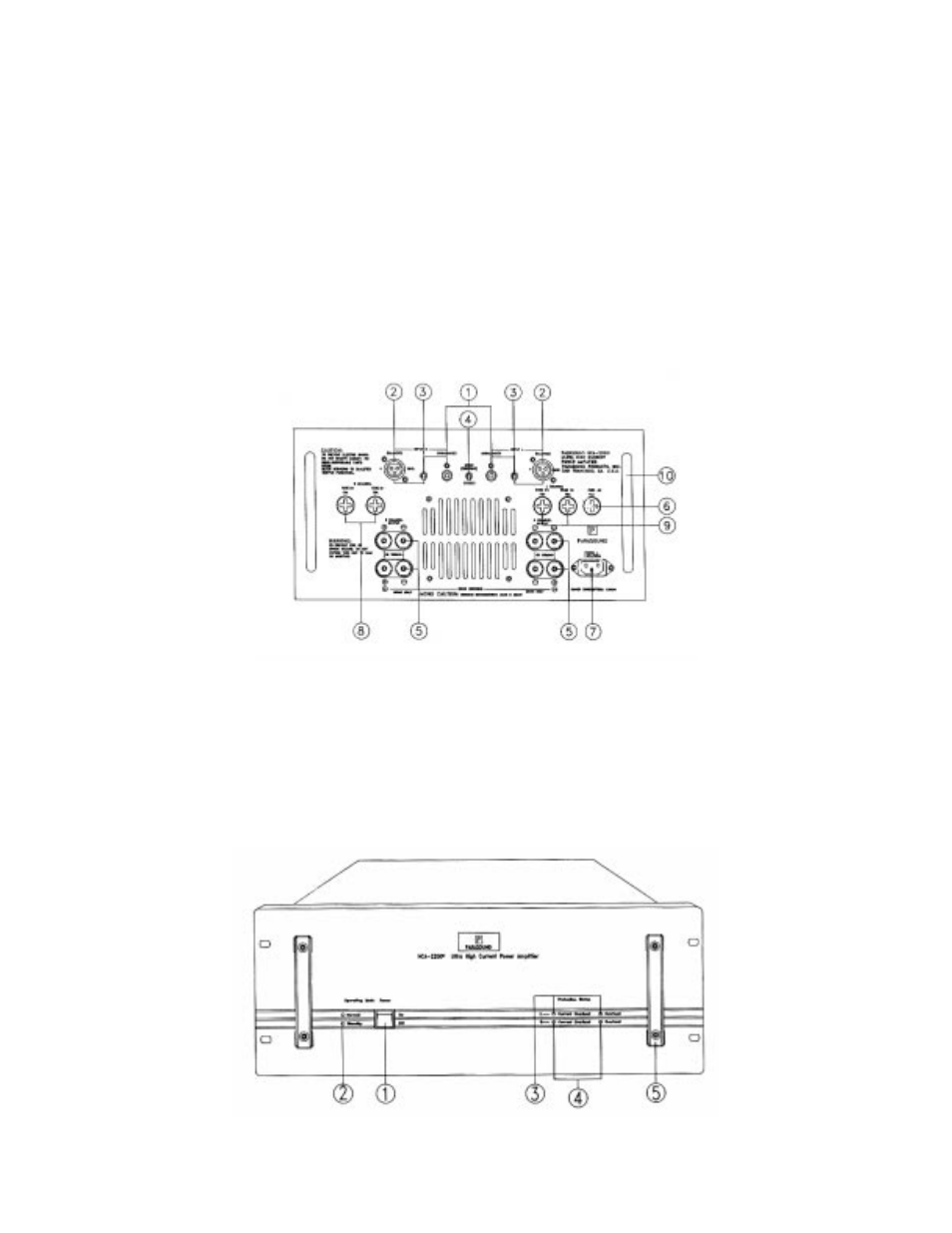

Rear Panel
1. Input Jacks - RCA type for unbalanced lines
2. Input connectors - XLR type for balanced lines
3. Input selector switches - balanced or unbalanced inputs
4. Mono Bridging Selector
5. Speaker Terminals
6. Main Fuse
7. AC Power cord receptacle
8. Right channel B+, B- rail fuses
9. Left channel B+, B- rail fuses
10. Carry handles
Front Panel
1. Power Switch
2. Standby-Operation LEDs
3. Left, Right channel Current Overload LEDs
4. Left, Right channel Overheat LEDs
5. Carry handles
