7
ASSEMBLY
TO ROLL TRACTOR OFF SKID (See Operation
section, page 10, for location and function of
controls)
• Press lift lever plunger and raise attachment lift lever to
its highest position.
• Release parking brake by depressing clutch/brake pedal.
• Place freewheel control in freewheeling position to
disengage transmission (See “TO TRANSPORT” in the
Operation section of this manual).
• Roll tractor forward off skid.
• Remove banding holding discharge guard up against
tractor.
TO DRIVE TRACTOR OFF SKID (See Opera-
tion section, page 10, for location and func-
tion of controls)
WARNING: Before starting, read, understand and follow
all instructions in the Operation section of this manual. Be
sure tractor is in a well-ventilated area. Be sure the area in
front of tractor is clear of other people and objects.
•
Be sure all the above assembly steps have been
completed.
• Check engine oil level and fill fuel tank with gasoline.
• Place freewheel control in "transmission engaged" po-
sition.
• Sit on seat in operating position, depress clutch/brake
pedal and set the parking brake.
• Place motion control lever in neutral (N) position.
• Press lift lever plunger and raise attachment lift lever to
its highest position.
• Start the engine. After engine has started, move throttle
control to idle position.
• Release parking brake.
• Slowly move the motion control lever forward and slowly
drive tractor off skid.
• Apply brake to stop tractor, set parking brake and place
motion control lever in neutral position.
• Turn ignition key to "OFF" position.
Continue with the instructions that follow.

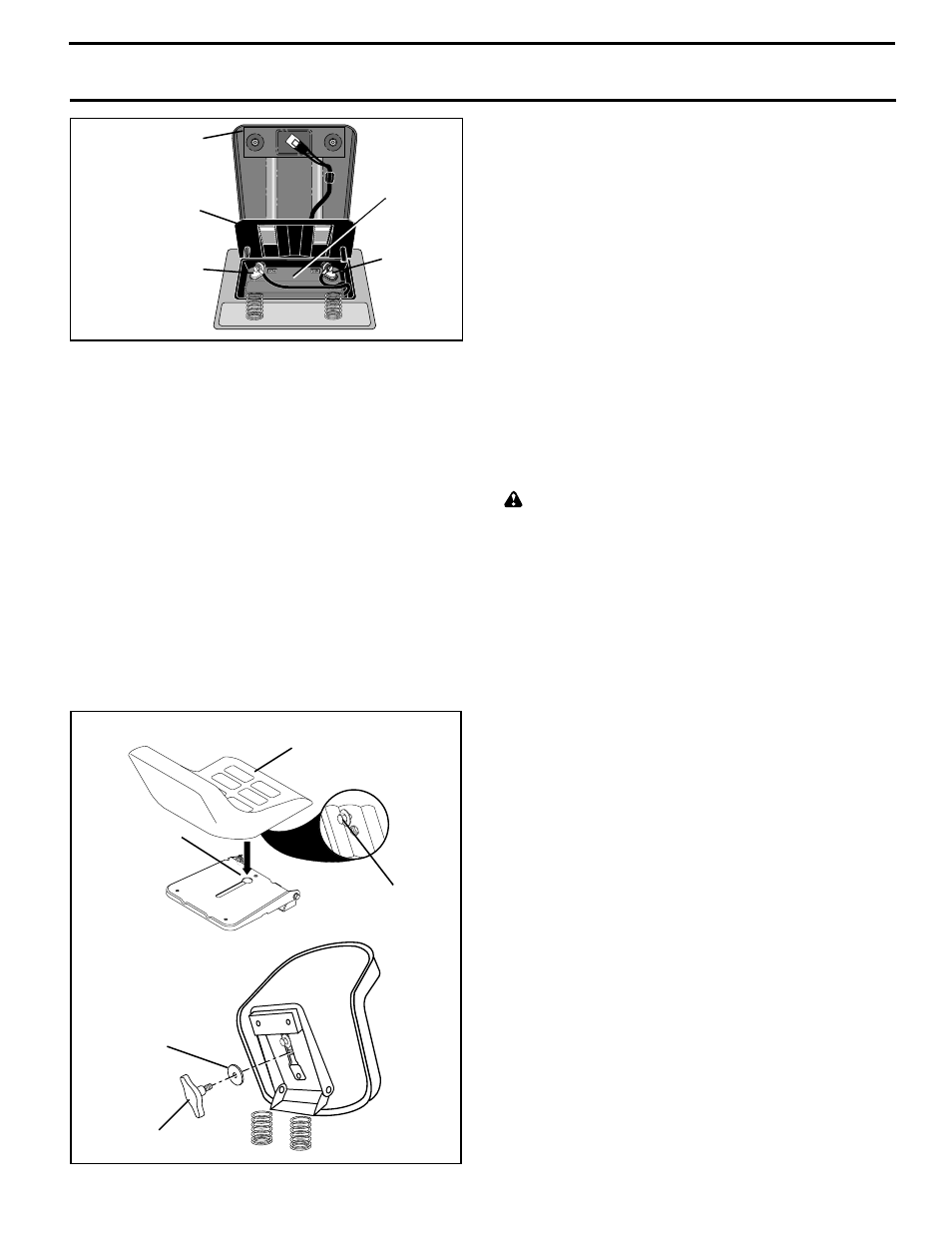

FIG. 2
BATTERY
BOX DOOR
SEAT PAN
LABEL
TERMINAL
TERMINAL
SEAT PAN
SHOULDER
BOLT
ADJUSTMENT
KNOB
FLAT WASHER
SEAT
FIG. 3
NOTE: You may now roll or drive your tractor off the skid.
Follow the appropriate instruction below to remove the
tractor from the skid.
3)
Adjust seat before tightening adjustment knob.
•
Remove adjustment knob and flat washer securing seat
to cardboard packing and set aside for assembly of seat
to tractor.
• Pivot seat upward and remove from the cardboard
packing. Remove the cardboard packing and discard.
• Place seat on seat pan so head of shoulder bolt is
positioned over large slotted hole in pan.
• Push down on seat to engage shoulder bolt in slot and
pull seat towards rear of tractor.
• Pivot seat and pan forward and assemble adjustment
knob and flat washer loosely. Do not tighten.
• Lower seat into operating position and sit on seat.
• Slide seat until a comfortable position is reached which
allows you to press clutch/brake pedal all the way down.
• Get off seat without moving its adjusted position.
• Raise seat and tighten adjustment knob securely.
