Polaroid LCD-1550 User Manual
Page 13
23
4

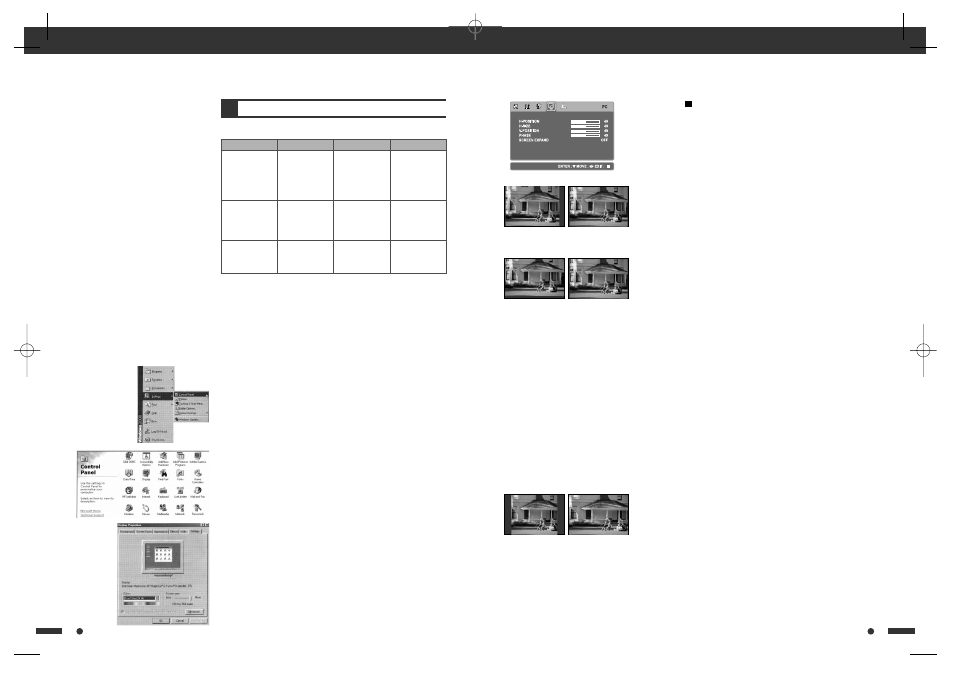

PC ADJUSTMENT
(ONLY IN PC MODE)
Press MENU (
) button to display the MENU screen.
Select “PC” by pressing VOL (
œ/√) buttons and press CH down
(
†) button to enter into the items below.
H-POSITION
1 Move to “H-POSITION” by pressing CH (
…/†) buttons.
2 Press VOL (
œ/√) buttons to adjust the horizontal position of
displayed image.
V-POSITION
1 Move to “V-POSITION” by pressing CH (
…/†) buttons.
2 Press VOL (
œ/√) buttons to adjust the vertical position of
displayed image.
H-SIZE
1 Move to “H-SIZE” by pressing CH (
…/†) buttons.
2 Press VOL (
œ/√) buttons to adjust the horizontal size of
displayed image.
PHASE
(Fine image adjustment in PC monitor mode)
1 Move to “PHASE” by pressing CH (
…/†) buttons.
2 Press VOL (
œ/√) buttons to adjust the phase to get a clearer
picture.
SCREEN EXPAND (only 17” wide model)
1 Move to “SCREEN EXPAND” by pressing CH (
…/†) buttons.
2 Press VOL (
œ/√) buttons to select screen expand type. You
can select a Screen Expand successively that has its own
aspect ratio.
MENU adjustment
PC mode input format
Resolution
V freq. (Hz)
H freq. (KHz)
640*480
60
31.5
640*480
72
37.9
640*480
75
37.5
640*480
85
43.3
720*400
70
31.5
800*600
60
37.9
800*600
75
46.9
800*600
85
53.7
800*600
72
48.1
1024*768
60
48.4
1024*768
70
56.5
1024*768
75
60.2
VGA
SVGA
XGA
In case of inputting the PC signal other than above signals,
“OUT OF RANGE” will appear on the screen.
Before adjustment, please setup your PC software...
Even if your actual display-settings screen looks different from
the windows below, basic setup methods will be applied in
most of the cases.
1 First, click on “Settings” on the Windows Start menu.
While “Settings” is selected, move the cursor to submenu
“Control Panel”
.
2 When the control panel screen appears, click on “Display”
and a display dialog box will appear.
3 Navigate to the “Settings” tab on the display dialog-box.
The correct setting of size (resolution) is “1024 x 768
pixels”
. (optical resolution)
Check the vertical frequency of your PC. (Available vertical
frequency at 1024*768 mode : 60Hz, 70Hz, 75Hz)
before adjustment
after adjustment
before adjustment
after adjustment
expand OFF
expand ON
MENU adjustment
22
