10 www.pridemobility.com Power Tote P-100 Lift System
I I I . I N S T A L L A T I O N

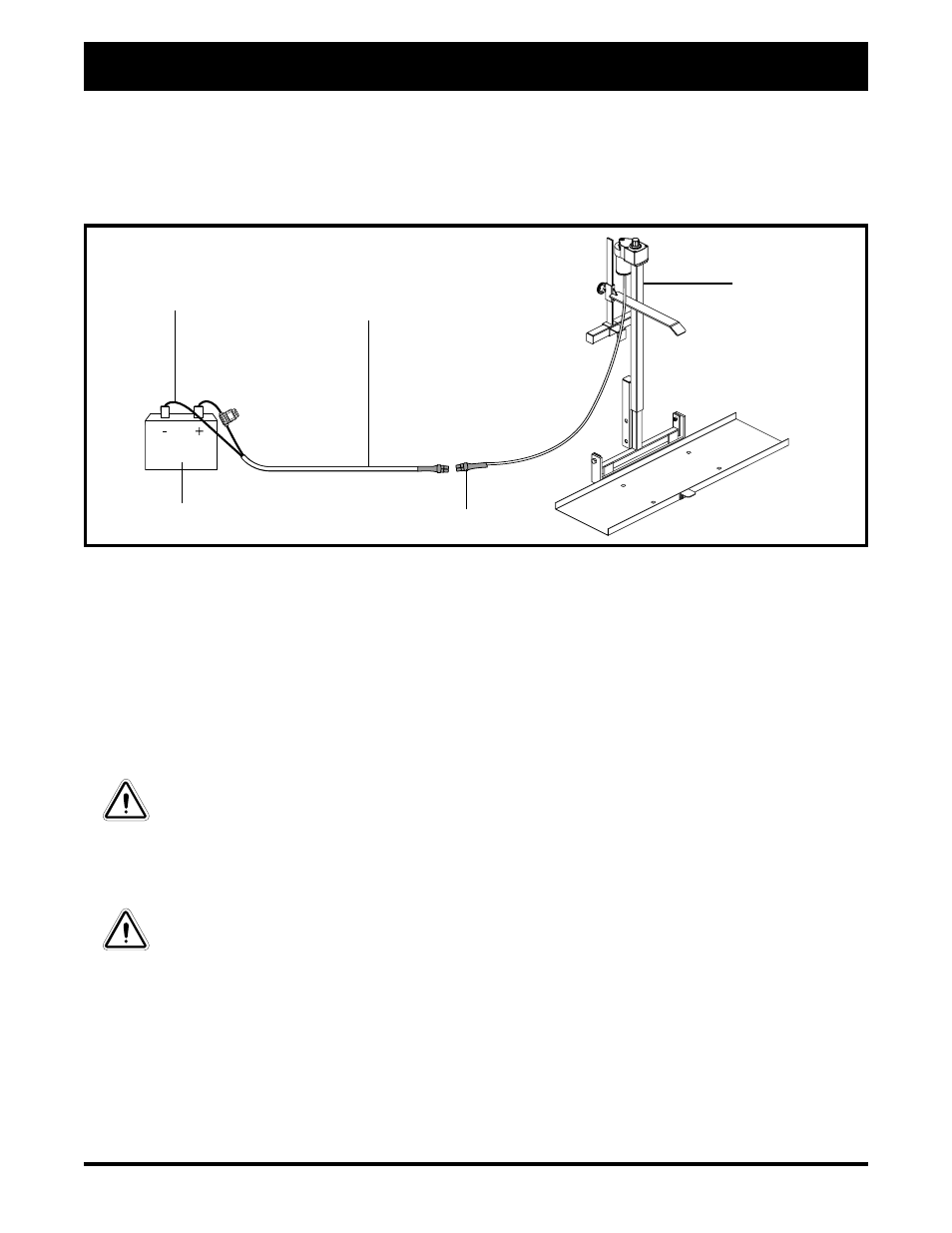

Figure 5. Wiring Harness Installation
VEHICLE BATTERY
WIRING HARNESS
LIFT FRAME
LIFT WIRING CONNECTION
Follow these steps to route the Power Tote P-100 Lift System wiring harness:
1. Route the lift system wiring harness (starting at the lift) through the interior of the vehicle until you reach the
automobile battery. See figure 5. You will typically find pass through points at the rear lighting assemblies,
which will enable you to route the cable through the trunk and under the back seat.
2. Conceal the harness behind or under the interior panels of the vehicle (there should be existing holes). Be
certain that the harness is protected with a rubber grommet when passing it through the metal panels and into
the engine compartment.
3. Inside the engine compartment, secure the harness to the firewall and the inner fender with plastic wire ties. Use
care not to cause abrasions to the wiring harness. It is important to secure the wiring harness at various points
along its run of the vehicle.
WARNING! Do not cut or shorten the wiring harness. If the harness is too long, coil the
excess wire and secure it with plastic wire ties.
4. Connect the red wire to the positive (+) terminal and the black (grounding) wire to the negative (-)
terminal of the vehicle battery.
WARNING! Before operating the lift, inspect the wiring harness for proper routing and
grounding. Improper routing can cause damage to the harness, and improper grounding
can cause damage to the electrical system.
GROUNDING WIRE
