2.0 Connect the Smart-DTA to your local network
You must connect the Smart-DTA to an IP network that provides a DHCP server. Using the included black Ethernet
cable, connect the Smart-DTA RJ-45 Ethernet WAN port, labeled
ETH
(see
figure 1
), to an Ethernet hub or switch
on the same network as your PC. The Ethernet WAN interface is configured as a DHCP client.

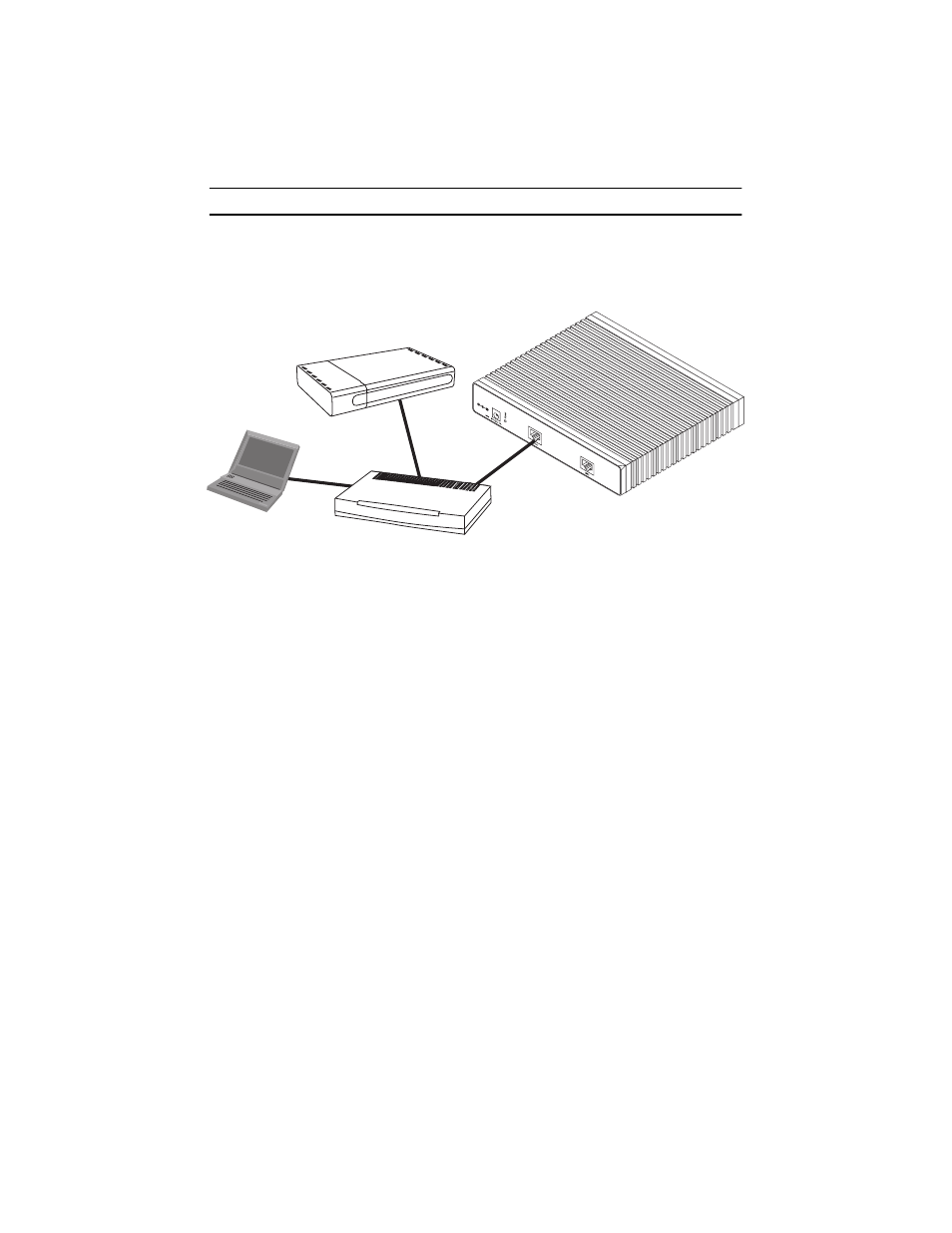

Figure 1.
Connecting the Smart-DTA to the network via a hub or switch
DHCP
Server
Ethernet Hub
or Switch
Smart-DTA
PC
ETH
port
