POULAN PARTS LIST R R POULAN PRO PARTS LIST PARAMOUNT PARTS LIST
R
PARTS LIST
NEW

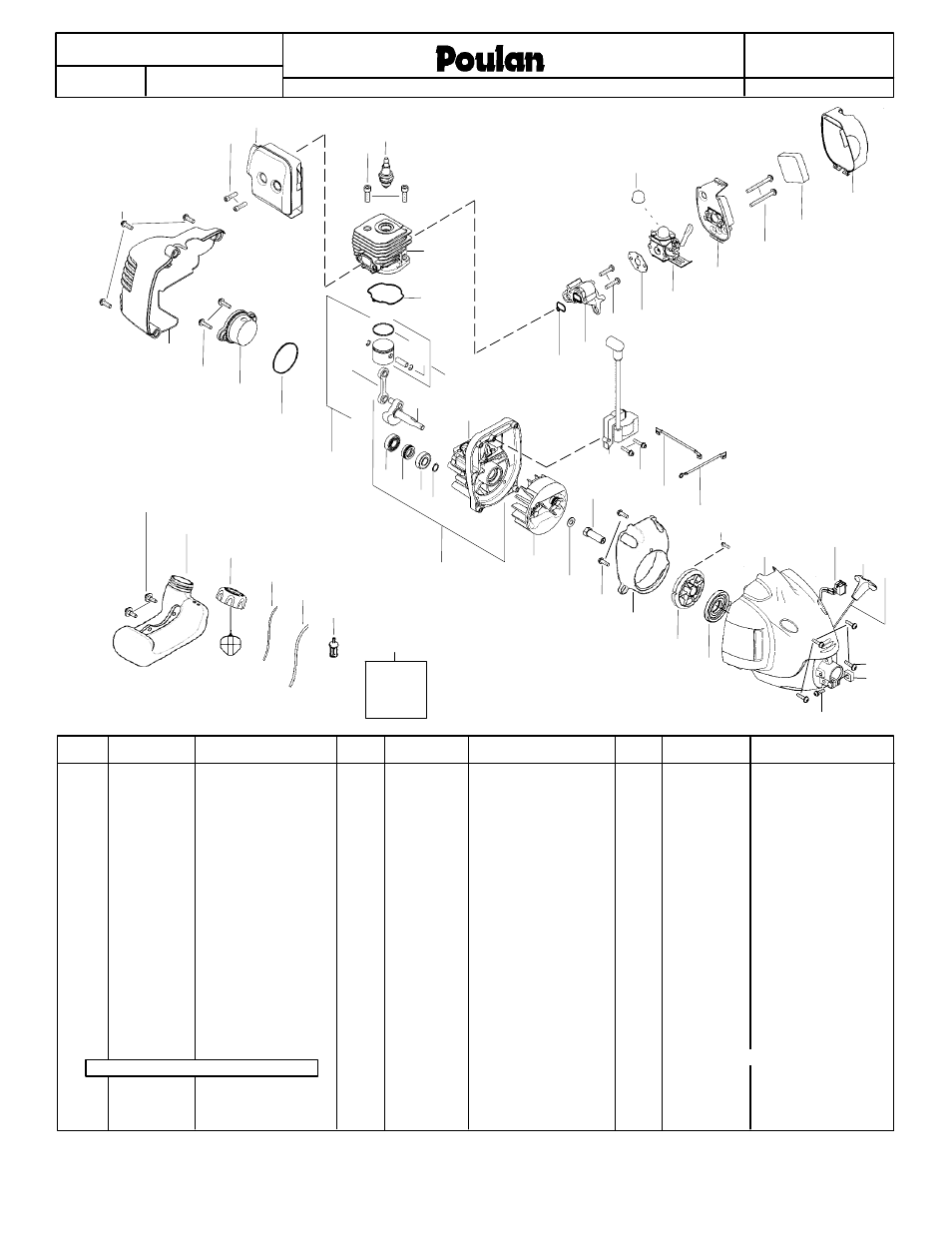

2 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
545012638
P4500F
DATE
1/14/09
r
1. 530015880 Screw
2. 530058982 Bolt--Muffler
3. 530057863 Assy--Muffler/Shield
(Incl. 2)
4. 530015953 Screw--Cylinder
5. 952030249 Spark Plug (RCJ 6Y)
6. 530012541 Cylinder
7. 530071750 Seal--Cylinder (kit)
8. 530055120 Piston Ring
9. 530015162 Retainer--Piston Pin
10. 530071357 Kit -- Piston (Incl. 8, 9)
11. 530012555 Assy--Crankshaft
12. 530012582 Assy--Crankcase
(Incl. 44,45,46)
13. 530071750 Seal--Cyl/Carb.(kit)
14. 530057547 Adapter--Carb.
15. 530016441 Screw
16. 530071750 Gasket--Carb. (kit)
17. -------- Kit--Carb.
530071811 Zama (C1U--W19)
545081807 Walbro ( WT--670)
18. 530058709 Bulb -- Purge
19. 530059246 Air Box
20. 530016429 Screw
21. 530036575 Foam--Air Filter
22. 530058912 Cover--Air Box
23. 530039234 Ignition Module
24. 530027953 Coupling--Drive
25. 530016357 Screw
26. 530014663 Assy--Leadwire
27. 530014662 Assy--Ground Wire
28. 530016391 Screw
29. 545008209 Assy.--Fan Hsg
30. 545081869 Kit--Switch
31. 530058742 Handle--Starter
32. 530071798 Kit -- Rope
33. 530016386 Screw
34. 530016382 Nut 12--24
35. 530016381 Screw 12--24
36. 530042086 Spring--Starter
37. 530071797 Kit--Starter Pulley
38. 545080601 Baffle
39. 530015880 Screw
40. 530015828 Washer--Flat
41. 530054115 Assy--Flywheel
42. 530071751 Assy--C’case & C’shaft
(Incl. 11,12,43)
43. 530015941 Retain. Ring--C’shaft
44. 530055728 Outer Bearing
45. 530019264 Seal--C’case
46. 530032125 Inner Bearing
47. 530071785 Kit -- Piston / Rod
(Incl. 10,48)
48. 530069945 Kit--Conn. Rod Assy
49. 530071750 O--Ring--C’case (kit)
50. 530058738 Assy--Plug (incl.49)
51. 530016386 Screw
52. 530058737 Shroud--Rear
53. 530016445 Retainer--Tank
54. 530058847 Assy--Fuel Tank (incl.
filter, lines & fuel cap)
55. 530058743 Assy--Fuel Cap
56. 530069247 Kit--Fuel Line (Small)
57. 530069216 Kit--Fuel Line (Large)
58. 530095646 Assy--Fuel Pickup
59. 530071750 Kit--Engine Gasket
(Incl. 7,13,16,49)
530057827 Choke Lever -- Zama
530058662 Choke Lever -- Walbro
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
59
Engine
Gasket
Kit
‘
= NEW PART NUMBER FOR THIS IPL n
= REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
3
2
1
51
50
55
56
53
54
4
5
7
10
8
9
11
12
46
45
44
43
42
25
23
24
26
27
41
40
37
36
29
33
32
31
30
17
19
20
21
22
16 15
14
13
6
57
58
28
48
49
38
52
39
34
35
(Note: Repair kits are not available for this carburetor)
Not Shown
18
47
