ScreenLogic Video & Lighting Protocol Adapter User’s and Installation Guide
Contents
ScreenLogic Video and Lighting Protocol Adapter Connection Diagram . 2
Connecting the ScreenLogic Video & Lighting Protocol Adapter ............ 3
Installing the ScreenLogic Video & Lighting protocol adapter ................. 4
Configuring the System ....................................................................... 5
Configuring the Video Camera(s) for the first time ................................ 6
Using the Video Camera Interface ......................................................... 9
Installing the Lights for the first time ................................................... 10
Using the Lights Interface ................................................................... 13
1
ScreenLogic Video & Lighting Protocol Adapter
Using the SceenLogic Video & Lighting Protocol adapter with your
existing ScreenLogic system you can control up to four color video
cameras to monitor your pool/spa and home areas via your ScreenLogic
interface device or PC at home or remotely over the Internet. Also, using
a Lighting Powerline Interface Module you can control any number of
outside and inside lights.
Features:
•
Remotely monitor your property via video cameras
• Control outside lights (pathway, front door, entry hallway, stairwells,
garage entryway, etc.)
• Control lights inside the home
• Log on anywhere via your laptop or PC for full control
• Compatible with all IntelliTouch systems
Supported Video Cameras and Light Switches
The following video camera models and Powerline Control systems are
supported for use with the ScreenLogic Video & Lighting Protocol adapter:
- Panasonic video camera Models: BL-C1A, BL-C111A, BB-HCM311A,
BB-HCM331A, KX-HCM110A,
BB-HCM381A

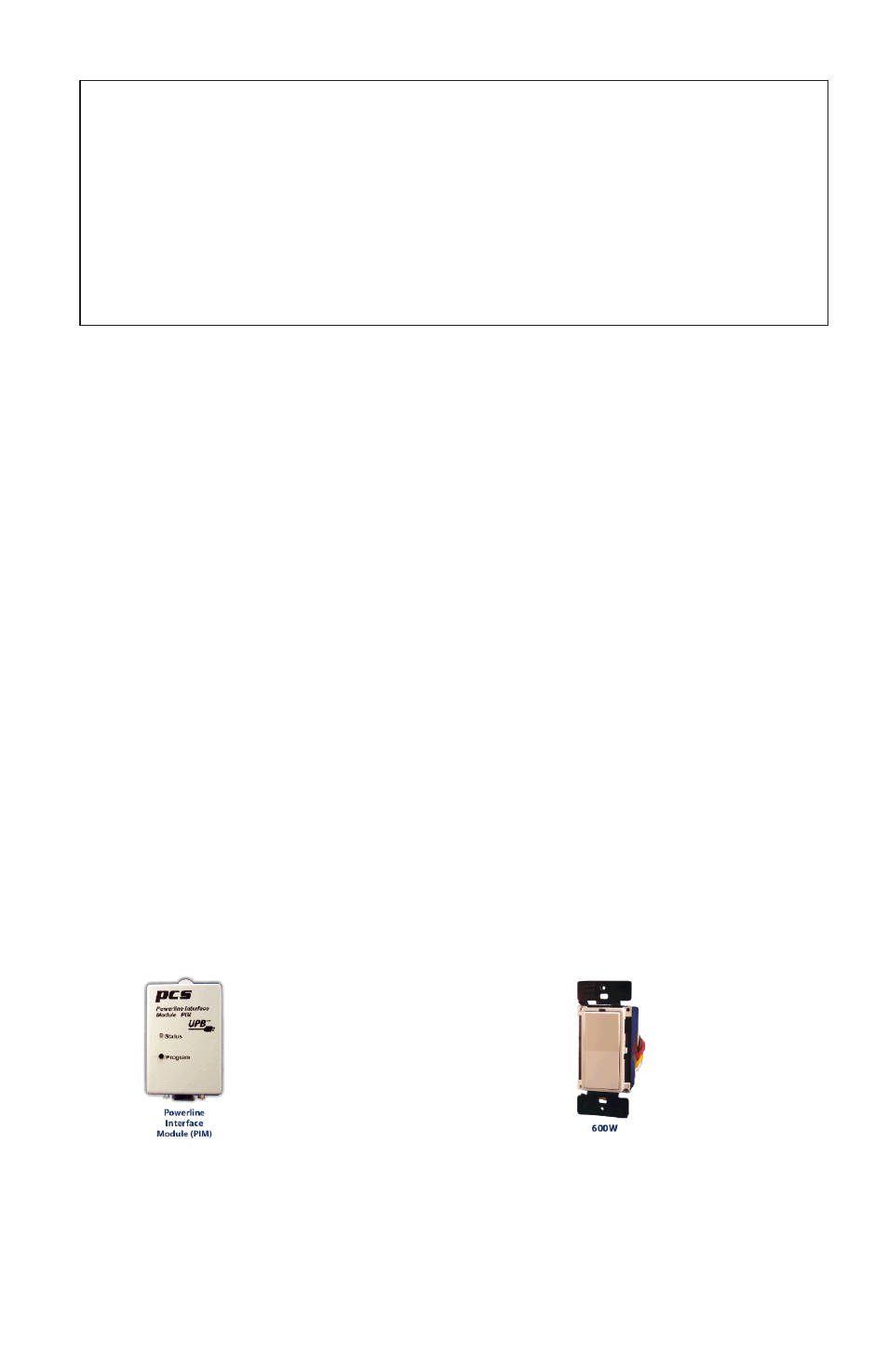

- Powerline Control Systems, PulseWorx PCS models:
Powerline Interface Module
(PIM) - Model PIM-R
(Serial Interface) Wall Switch Dimmer (600W)
Model # WS1D6
Note: Panasonic video cameras are widely available for sale on the Internet
Note: PCS light switches *
are compatible with
incondescent light bulbs
only. Lights with florescent
light bulbs cannot be
used.
Note: (*) PCS light switches are widely available on the Internet. Refer to the
following links: http://www.hometech.com/brains/upb.html#PO-PIMR
http://www.hometech.com/modules/upb.html#PO-WS1D6W
