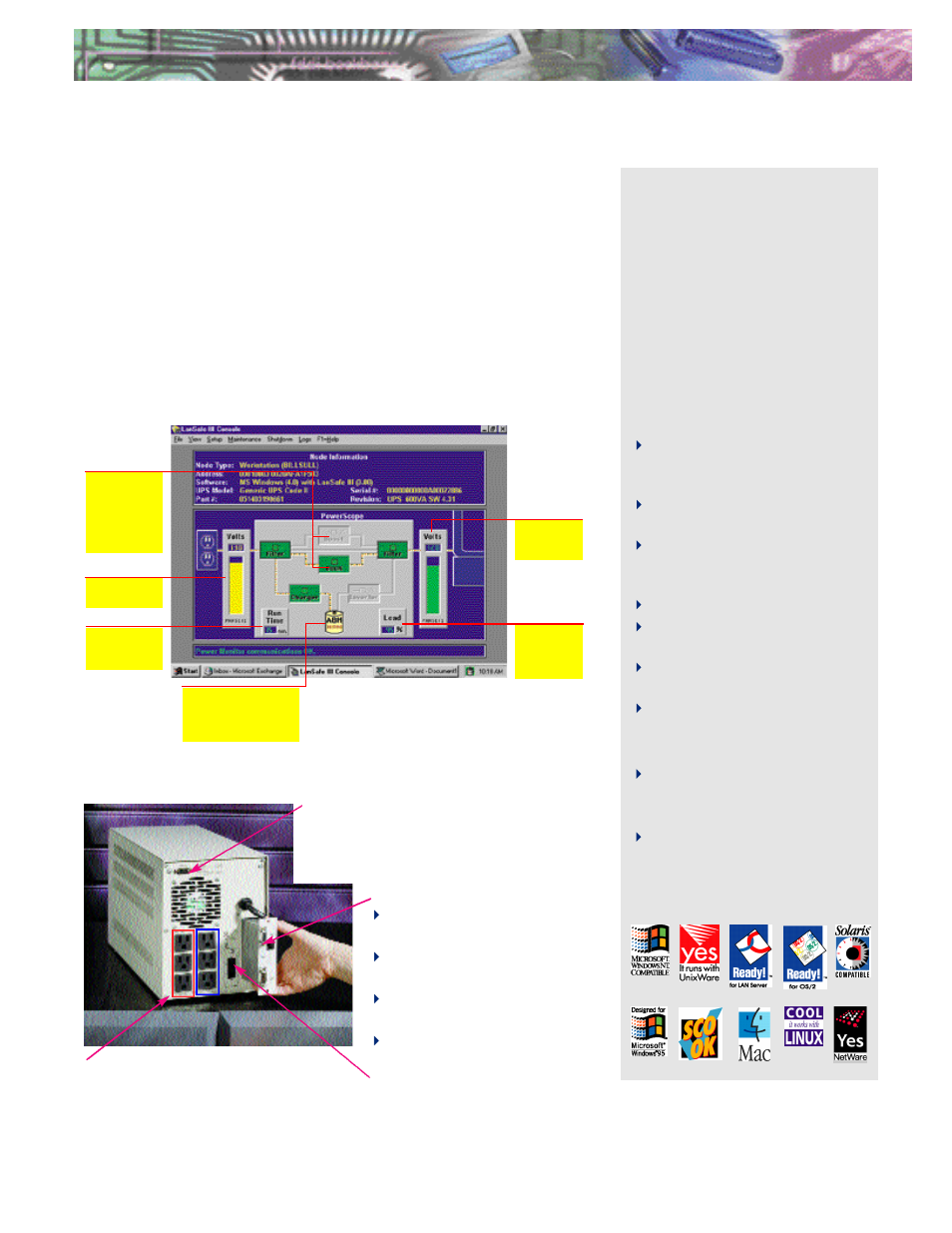

Rear Panel Display (1000 and 1500 VA)
The Powerware 5105 has one of the widest
input voltage windows and tightest output
regulations available. This innovative
mechanism corrects input voltage
variations as low as -35% or as high
as +20% of nominal voltage.
Powerware 5 105 Overview
Indicates use of
Buck/Double
Boost voltage
regulation with
proprietary
control circuitry
Utility power
input voltage
Remaining run
time while on
battery
Shows Advanced Battery
Management (ABM TM ) in
action — preserving the
life of your battery
Load capacity
to evaluate
UPS
utilization
Output voltage
to the
computer
Network Transient Protector: isolates your
modem, fax machine, and other electronic
equipment from “back door” power surges
(230 Vac models accomodate one 10Base-T
network cable)
Load Segments: receptacles are divided into Load
Segments that are controlled independently with LanSafe
III and FailSafe III power management software.
To preserve battery power during a power outage for
more critical equipment connected to
LoadSegment 1 ,
shut down Load Segment 2 supporting less critical
equipment (1000 & 1500 VA models only)
Power Management
Software
LanSafe III/FailSafe III power
management software is bundled with
all Powerw a re 5105 models. During
extended power failures, Powerw a re ’s
exclusive SafetyNet
™ s e q u e n t i a l
shutdown offers network administrators
automatic orderly shutdown of all
network devices, including multiple
servers and workstations.
F e a t u r e s
P re s e rve data integrity system-wide
with SafetyNet
™ prioritized, sequent i a l
shutdown of all network devices
Reduce cost per device for power
p rotection with UPS G ro u p s
Receive system-wide control via
c ro s s - p l a t f o rm functionality and
s u p p o rt for other manufacturers’ UPSs
Test networked UPSs from one node
D e t e rmine overall operating enviro n-
ment with extensive graphical displays
Stay informed of power problems by
pager and e-mail
Analyze power conditions with
voltage logging
Operating Systems
FailSafe III Standalone Solutions:
Windows 95/98, OS/2, Windows 3.x,
and Windows NT
LanSafe III Network Solutions:
Windows 95/98, OS/2, UNIX,
Novell NetWa re, Windows NT,
and Macintosh
Communication Port:
serial connection for
interface with LanSafe
III and FailSafe III
power management
software
Powerware’s Buck/Double Boost voltage
regulation ensures consistent input voltage
to your critical load. If the input voltage is
too high, the Powerware 5105 bucks the
voltage instantaneously (demonstrated in
the LanSafe III and FailSafe III PowerScope
view below) or boosts the voltage if it is
too low.
Buck/Double Boost Voltage Regulation
PowerComm™ Installable Options (1000 & 1500
VA models only):
Connect UPS SL card adds direct control
and monitoring capabilities in
SNMP-based networks
PowerPlexer card provides communication
ports for up to 3 computers attached to
different Load Segments on the UPS
MultiUPS card provides communication
ports for up to 3 UPSs connected to a single
network device
USBInterface Unit allows you to connect the
UPS to Windows 98 computers
