8
Small
Hole
71

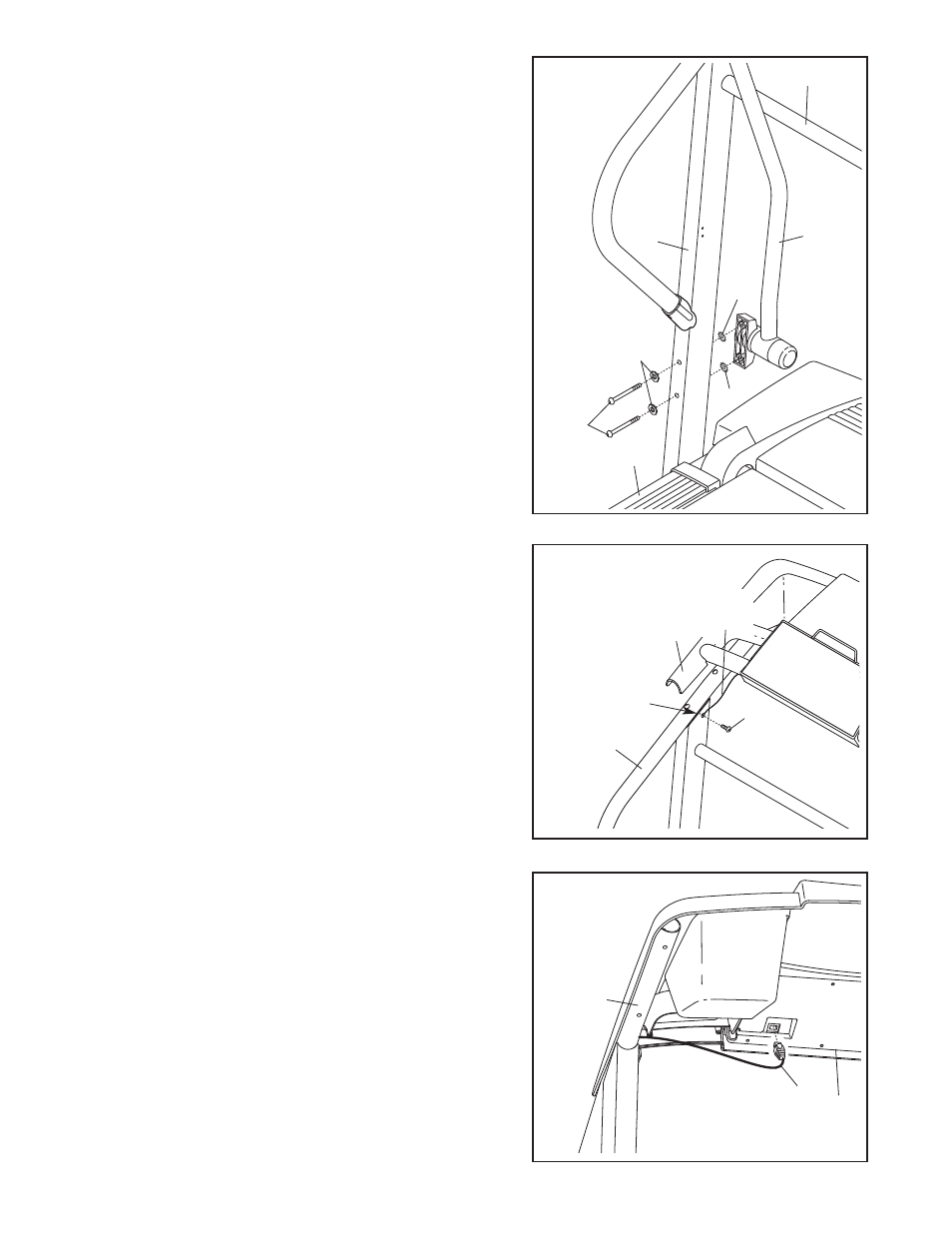

6. Hold the Console Base (47) near the Left Handrail (71).
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75).
47
75
Ground
Wire
42
7. Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the Console Base (47).
The connector should
slide easily into the socket and snap into place. If the
connector does not slide easily and snap into place, turn
the connector and then insert it.
72
47
5. Attach the Left Upper Body Arm (24) to the left Upright
(69) with two 3 1/2” Bolts (45), two Washers (38), and
two Star Washers (106) as shown. Make sure that the
Left Upper Body Arm is on the indicated side of the
crossbar.
Attach the Right Upper Body Arm (not shown) to the
other Upright (not shown) in the same way.
Lower the Left Upper Body Arm (24) and the Right Upper
Body Arm (not shown) toward the Foot Rails (98). 24
106
106
Crossbar
38
69
45
98
5
6
7
