11. Install the center handrail. Loosen the four fasteners in the handrail clamp
bracket with the hex key provided. See Diagram 9, #1. The center handrail is
packaged in two pieces. Install one side at a time by following these steps:
a. Insert a handrail end cap. See Diagram 9, #2.
b. Slide the end of the handrail into the center clamp and rotate the handrail
so that it falls inside the end cap. See Diagram 9, #3.

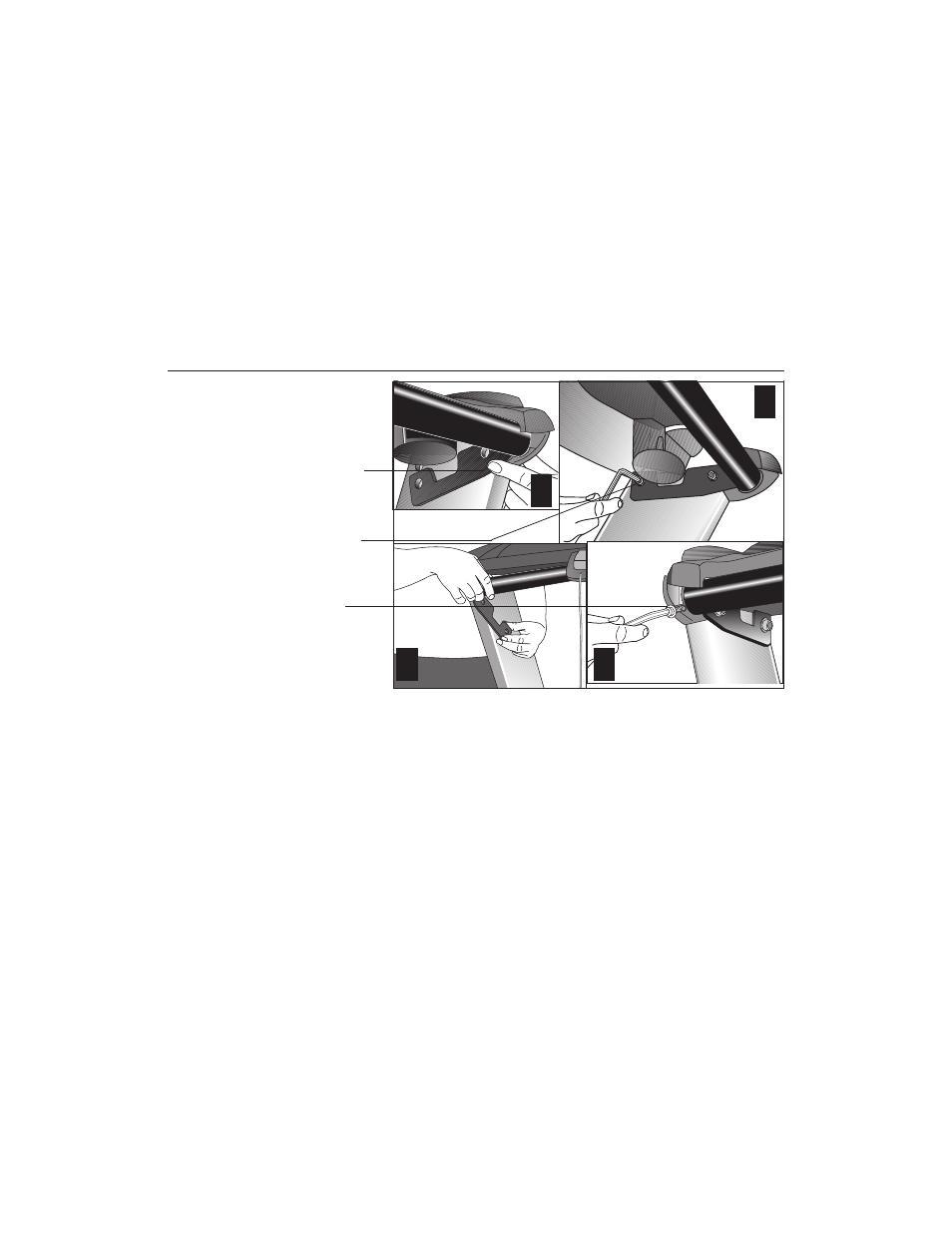

Diagram 10 Secure the display
console and center
handrail.
Handrail end cap
screw (C) with
washer (F)
(left side)
Center handrail
mounting bracket
(right side)
1-inch screws (G)
with washers (D)
(right side)
c. Align the center handrail’s mounting bracket with the holes in the upright
support. See Diagram 10, #1. Insert two 1-inch screws (G) with washers
(D) and finger tighten. See Diagram 10, #2. Do not securely tighten the
screws until both sides of the center handrail have been attached. See
Diagram 10, #1 and #2.
d. Align the mounting holes in the handrail with the end cap. Place a washer (F)
on screw (C) and insert the screw. Finger tighten. See Diagram 10, #4.
e. Follow steps 9a. through 9d. on the opposite side.
2
1
4 3
