NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

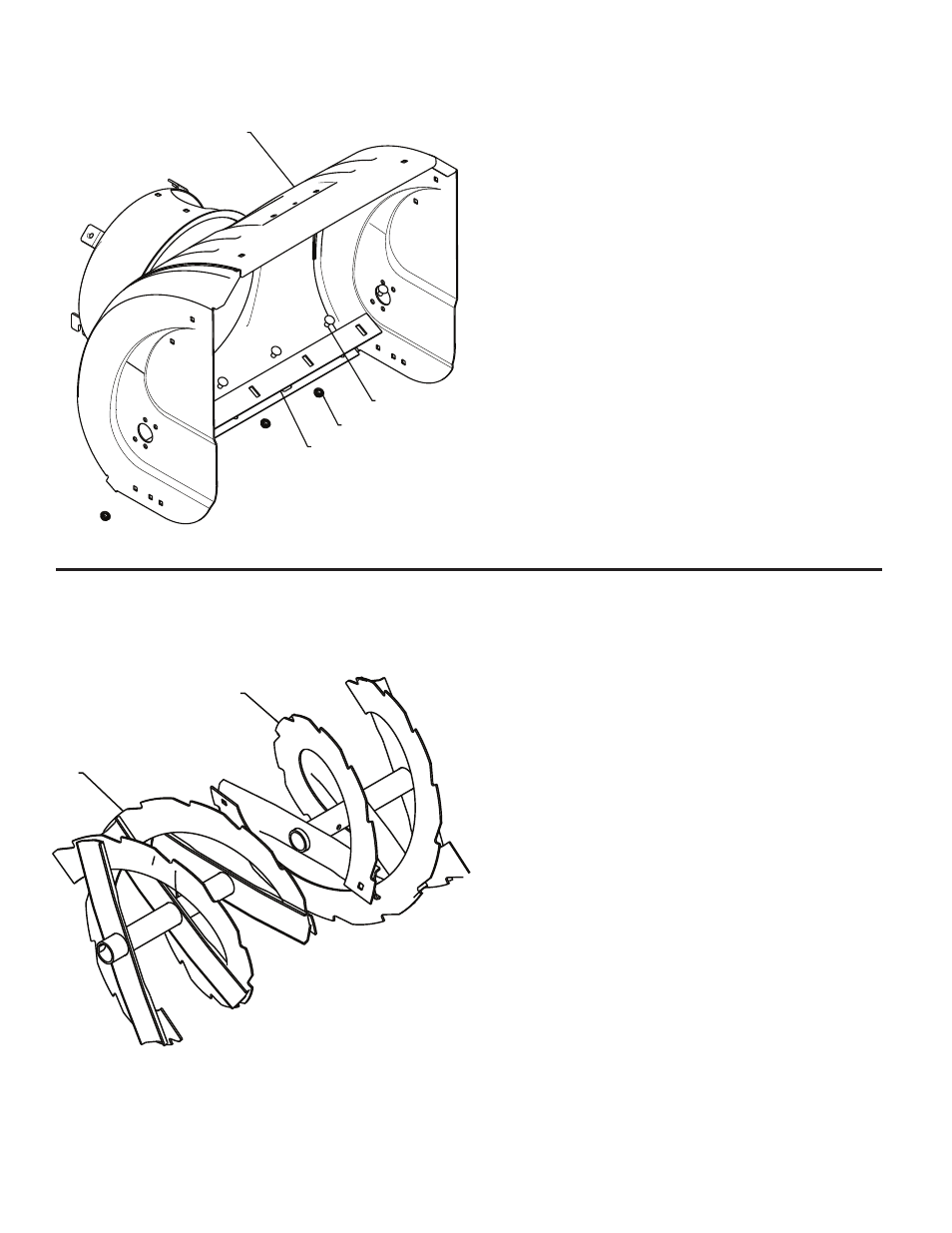

REPAIR PARTS SNOW THROWER - - MODEL NUMBER PR624 (96192004200)
AUGER HOUSING / IMPELLER ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1
2
3 (5x)
4 (5x)
01.07.001-A
1 404928X421 AUGER HOUSING
2 404931X431 SCRAPPER BAR
3 72270505 CARRIAGE BOLT 5/16−18 X .625
4 155377 NUT 5/16−18
2
1
01.07.017-A
1 420493X479 AUGER ASSEMBLY LH 24
2 420494X479 AUGER ASSEMBLY RH 24
