Part Names and Functions
English
Part Names and Functions

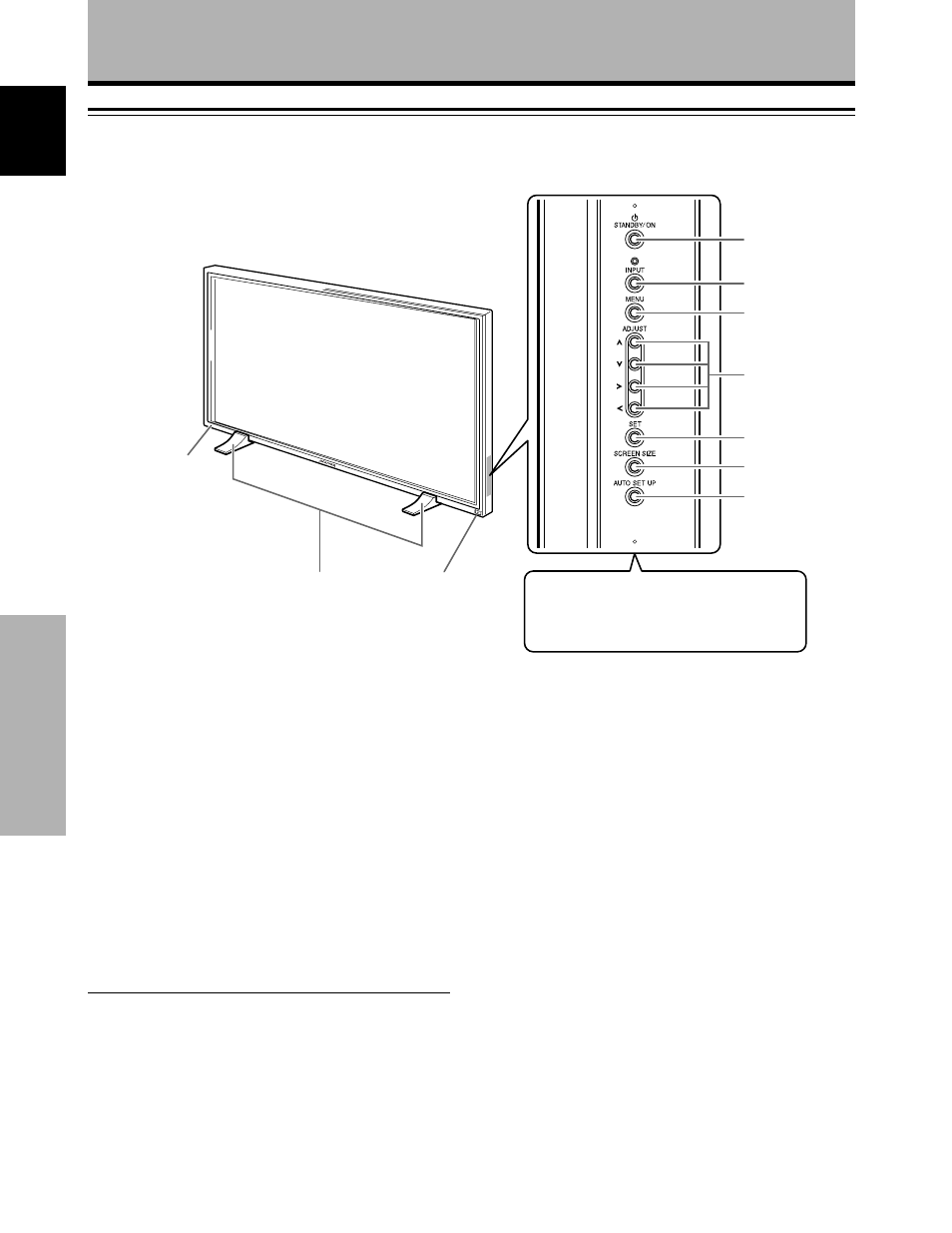

Main Unit
Main unit
1
Display stand
2
Remote control sensor
Point the remote control toward the remote sensor to
operate the unit (page 8).
3
STANDBY/ON indicator
This indicator is red during standby mode, and turns
to green when the unit is in the operation mode
(page 19).
Flashes green when Power-Management function is
operating (page 24).
The flashing pattern is also used to indicate error
messages (page 33).
Operation panel on the main unit
4
STANDBY/ON button
Press to put the display in operation or standby mode
(page 19).
5
INPUT button
Press to select input (page 19).
6
MENU button
Press to open and close the on-screen menu (pages
17 to 30).
7
ADJUST ( 5/∞/3/2) buttons
Use to navigate menu screens and to adjust various
settings on the unit.
Usage of cursor buttons within operations is clearly
indicated in the on-screen display (pages 17 to 30).
8
SET button
Press to adjust or enter various settings on the unit
(pages 17 to 30).
9
SCREEN SIZE button
Press to select the screen size (page 21).
0
AUTO SET UP button
When using computer signal input, automatically sets
the POSITION and CLOCK/PHASE to optimum values
(page 26).
2
3
1
4
5
6
7
8
9
0
Note
When optional speakers have been connected,
the operation panel on the main unit will not be
operable.
Main unit
Operation panel on the main unit
