S shield for use with trimmer head
S semi-automatic trimmer head
S shoulder strap with warning
S brush blade
S handlebar
Examine parts for damage. Do not use dam-
aged parts.
NOTE: If you need assistance or find that
parts are missing or damaged, call
1-800-554-6723.
It is normal for the fuel filter to rattle in the
empty fuel tank.
Finding fuel or oil residue on muffler is normal
due to carburetor adjustments and testing
done by the manufacturer.
ASSEMBLY
WARNING: If received assembled,
repeat all steps to ensure your unit is properly
assembled and all fasteners are secure.
TOOLS REQUIRED
S 2 hex key wrenches (provided)
S adjustable wrench or large pliers
S phillips screwdriver

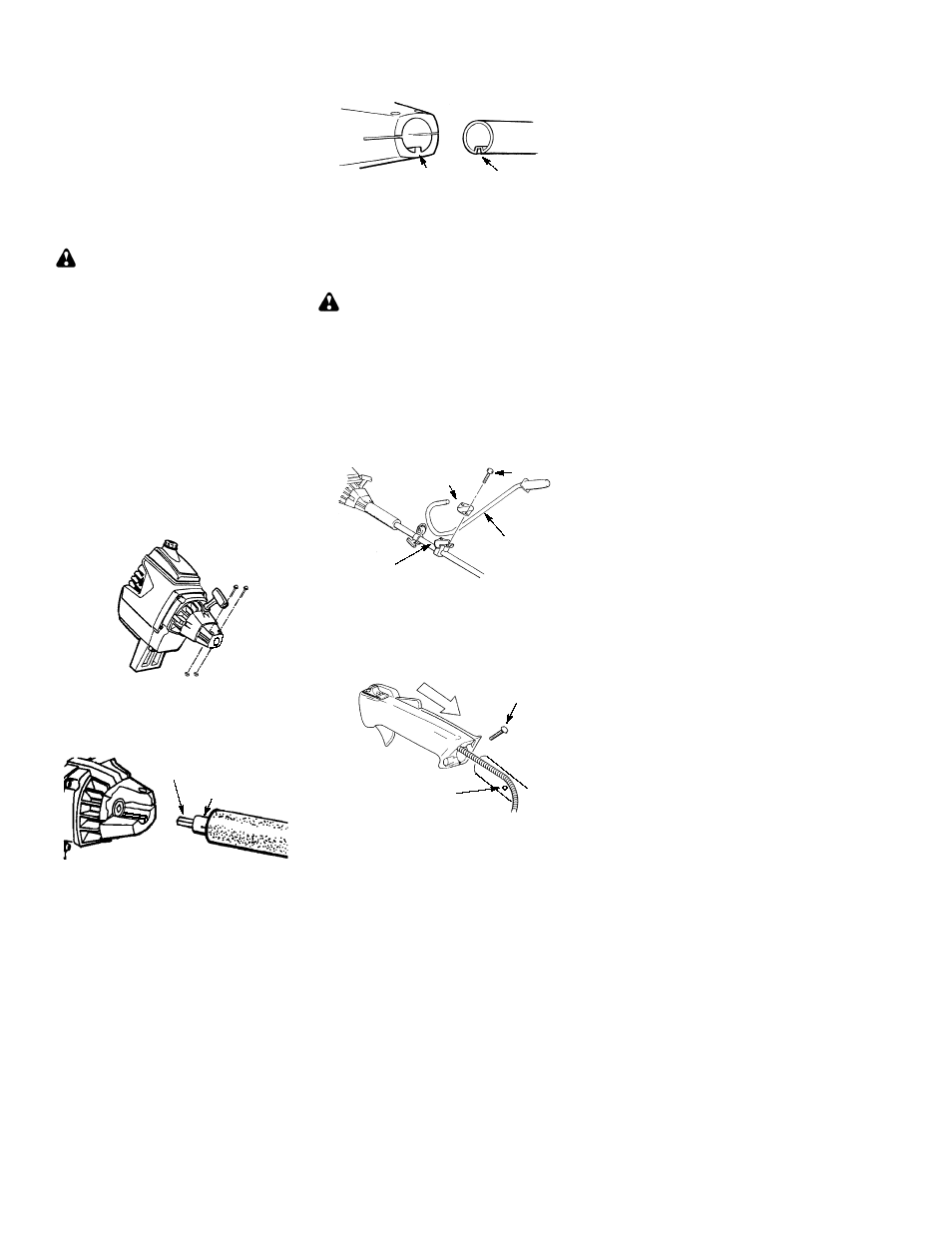

ATTACHING THE TUBE
NOTE:
Illustrations within this section will help
in identifying the assembly steps. Be sure to
read each section and review the illustrations,
before you begin.
NOTE: A drive shaft is located in the center of
the tube. Make sure this shaft does not fall out
of the tube. Dirt on the shaft will significantly
reduce the life of the unit. If this shaft falls out,
clean, relubricate , and re-install.
S Insert the 2 tube assembly screws and nuts
as illustrated. Keep loose at this time, you
will tighten them during a later step.
S Some units may include a plastic cover over
the end of the tube. If your unit includes any
covering, remove the cover at this time.
S Pull about 1/2 inch of the drive shaft out of
the inside of the tube.
Pull about 1/2 inch from tube
Tube
NOTE: The end of the drive shaft is square.
This square end fits inside a square hole in a
shaft inside the engine. Look inside the end of
the engine and you will see the square hole in the
shaft.
NOTE: The end of the tube has a groove that
aligns with a ridge in the engine opening. Lo-
cate the groove and ridge.
Groove Ridge
S Align the groove in the tube with the ridge in
the engine opening. Insert the tube into the
opening.
S Firmly push the tube into engine until it will no
longer go into the opening.
S Tighten the screws, using one of the hex
keys provided with the unit.
ATTACHING THE HANDLEBAR
DANGER: The barrier portion of the
handlebar must be isntalled as shown to pro-
vide a barrier between operator and the spin-
ning blade.
S Locate the decal on the handlebar. This de-
cal includes two arrows. Position the han-
dlebar on the mounting bracket between
these arrows.
S Position the bracket cover over the handle-
bar. Again make sure the handlebar is be-
tween the arrows.
S Insert screws and hand tighten only. These
screws will be tightened later.
Bracket Cover
Screw
Mounting
Bracket
Handlebar
ATTACHING THE CONTROL
HANDLE TO THE HANDLEBAR
NOTE:
Make sure the wire going to the con-
trol handle is routed below the tube and re-
mains on the right side of the handlebar and
the tube.
S Remove screw from control handle.
Screw Hole
Screw
S Slide handle onto the right side of the han-
dlebar and align the screw hole.
S Re-insert screw and tighten securely.
NOTE: Make sure the control handle is on
the right side of the unit as shown in the il-
lustration below, and the On/Stop switch is lo-
cated on the top of the control handle.
