Part identification chart – ProForm PFBE19000 User Manual
Page 5
5

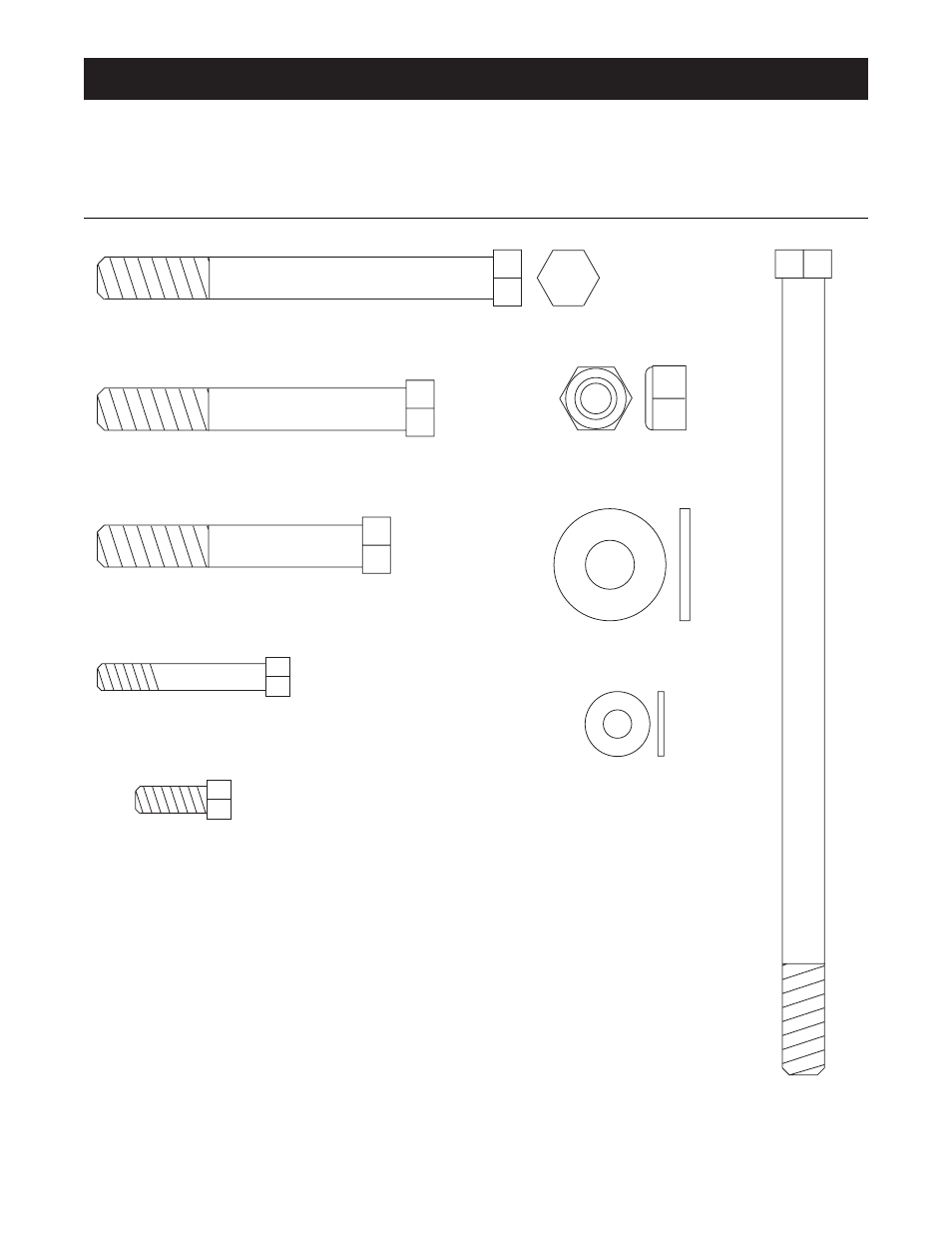

This chart is provided to help you identify the small parts used in assembly. The number in parenthesis below
each part refers to the key number of the part. The second number refers to the quantity needed for assembly.
Important: Some parts may have been pre-assembled for shipping purposes. If you cannot find a part in
the parts bags, check to see if it has been pre-assembled.
M10 Nylon Locknut (11)Ð10
M6 Washer (38)Ð4
M10 x 70mm Bolt (32)Ð1
M6 x 16mm Bolt (26)Ð6
M6 x 38mm Bolt (39)Ð4
M10 x 60mm Bolt (42)Ð2
M10 x 90mm Bolt (23)Ð6
M10 Washer (6)Ð6
M10 x 180mm Bolt (28)Ð1
Part Identification Chart
