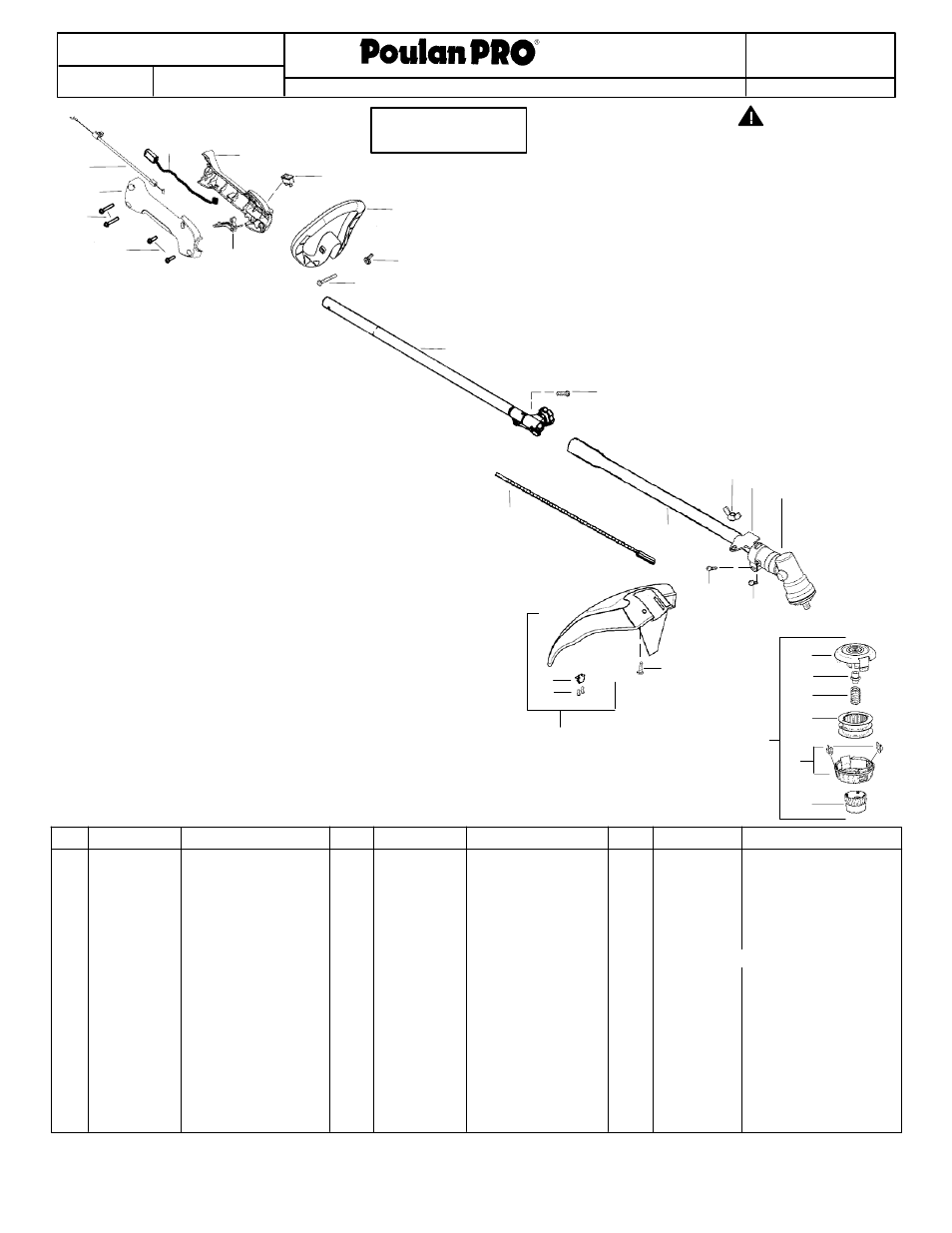

POULAN PARTS LIST R R POULAN PRO PARTS LIST PARAMOUNT PARTS LIST
R
PARTS LIST
Replaces
1 Note: Illustration may differ from actual model due to design changes
PARTS LIST NO.
PAGE NO.
MODEL(s)
545014347 PP125
DATE
3/31/09 545014347 -- 12/09/08
All repairs, adjustments
and maintenance not
described in the Opera-
tor’s Manual must be
performed by qualified
service personnel.
WARNING
= NEW PART NUMBER FOR THIS IPL n = REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL) K
Ref. Part No. Description Ref. Part No. Description Ref. Part No. Description
28. 537338801 Spring P25
29. 952711631 Assy--Wound Spool
30. 545003365 Kit--Cover and Eyelet
31. 537419601 Knob P25
545186741 Operator Manual
545209101 Decal--Shaft Warning
545167703 Decal--Upper Shaft
15. 530057554 Bracket--Shield
16. 530096099 Gearbox
17. 530096218 Flexshaft--lower
18. 530071789 Kit--Lower Shaft
19. 530016014 Screw
20. 530015775 Screw
21. 530015820 Bolt
22. 530052286 Limiter--Line
23. 530015814 Screw
24. 530071997 Kit--Shield Assy.
(Incl. 22,23)
25. 537419202 Assy--TNG7 (Incl. 26,
, 27,28,29,30,31)
26. 537419302 Housing
27. 537419801 Adapter
1. 530059759 Assy--Throttle Cable
2. 530057541 Hsg.--Throttle (RH)
3. 530016406 Screw
4. 530015814 Screw
5. 530054183 Assy.--Wire
6. 530059760 Hsg. Throttle (LH)
7. 530069572 Kit--Switch
8. 545077601 Trigger--Throttle
9. 530057546 Handle--Assist
10 530016152 Wingnut
11. 530015786 Bolt
12. 530071791 Kit--Upper Shaft
(Incl. flex, clamp & 13)
13. 530016344 Screw
14. 530016152 Wingnut
Not Shown
5
13
12
10
11
9
6
8
3
1
2
7
4
25
26
27
29
30
31
28
17
15
16
22
23
14
24
19
20
18
21
n
TYPE 1
