TSMS-5/16RK
Specifications
5
Rev. 04/05
Ph: 800-421-6511 www.picomacom.com
Rack-Mounted 14V/18V Satellite Multiswitch
Specifications
Frequency Range 40-2150 MHz
Antenna In 40-806 MHz
Satellite In 950-2150MHz
Insertion Loss
(Antenna In)
-1.5 dB max. 40-806 MHz
Gain (Satellite In) 2 dB min. 950-1750 MHz
0 dB min. 1751-2150 MHz
Isolation
Cross Polarization -25 dB min. 950-2150 MHz
Out to Out -14 dB min. 40-806 MHz
-28 dB min. 950-2150 MHz
Sat In to Sat In -35 dB min. 950-2150 MHz
Stop Band Attenuation 15 dB min. Ant port @ 950 MHz
15 dB min. Sat port @ 806 MHz
Return Loss
Input / Output -5 dB min. 40-806 MHz
-8 dB min. 950-1450 MHz
-6 dB min. 1451-2150 MHz
Input Capability
1 dB Compression
Antenna In
106 dBuV min. at 67.25 MHz Input
Satellite In 108 dBuV at 950 MHz Input
LHCP/RHCP
Switching Point
14.0 – 15.0 Vdc
22 KHz
Switching Point
150 – 300mVp-p Square Wave Test Signal
Output 22KHz Signal 22 ±4 KHz
Characteristic
Frequency Amplitude
650 ± 250 mV p-p
Impedance 75 ohms All Ports
Power Input 120 Vac ±10%, 60 Hz, 140 mA
Dimensions 19˝(L) x 5.5˝(D) x 1.75˝(H)
Weight 4.8 lbs.
Ordering Information
TSMS-5/16RK DIRECTV Phase 3 ODU Compatible 5 Input 16 Output

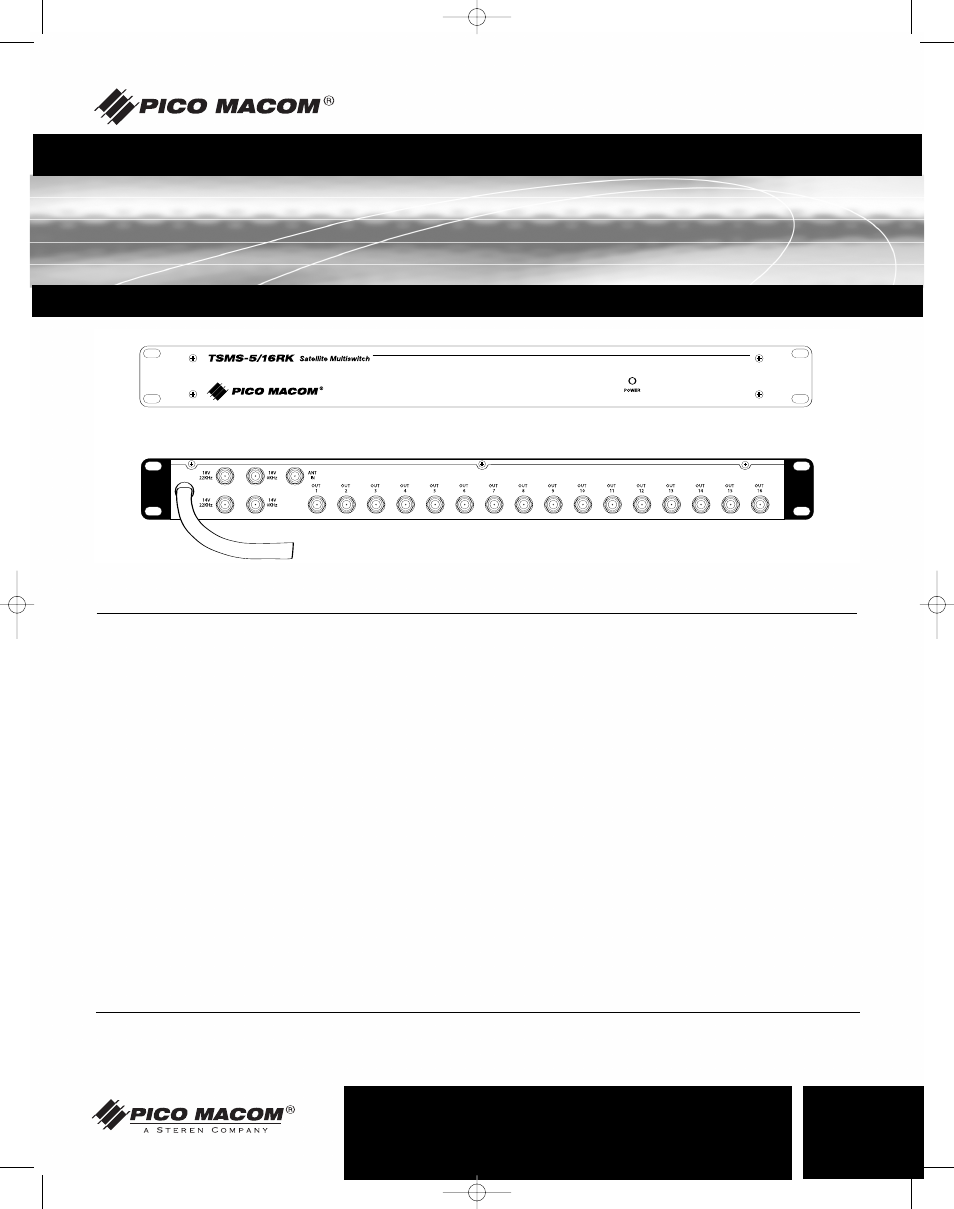

Front View
Rear View
