16
English

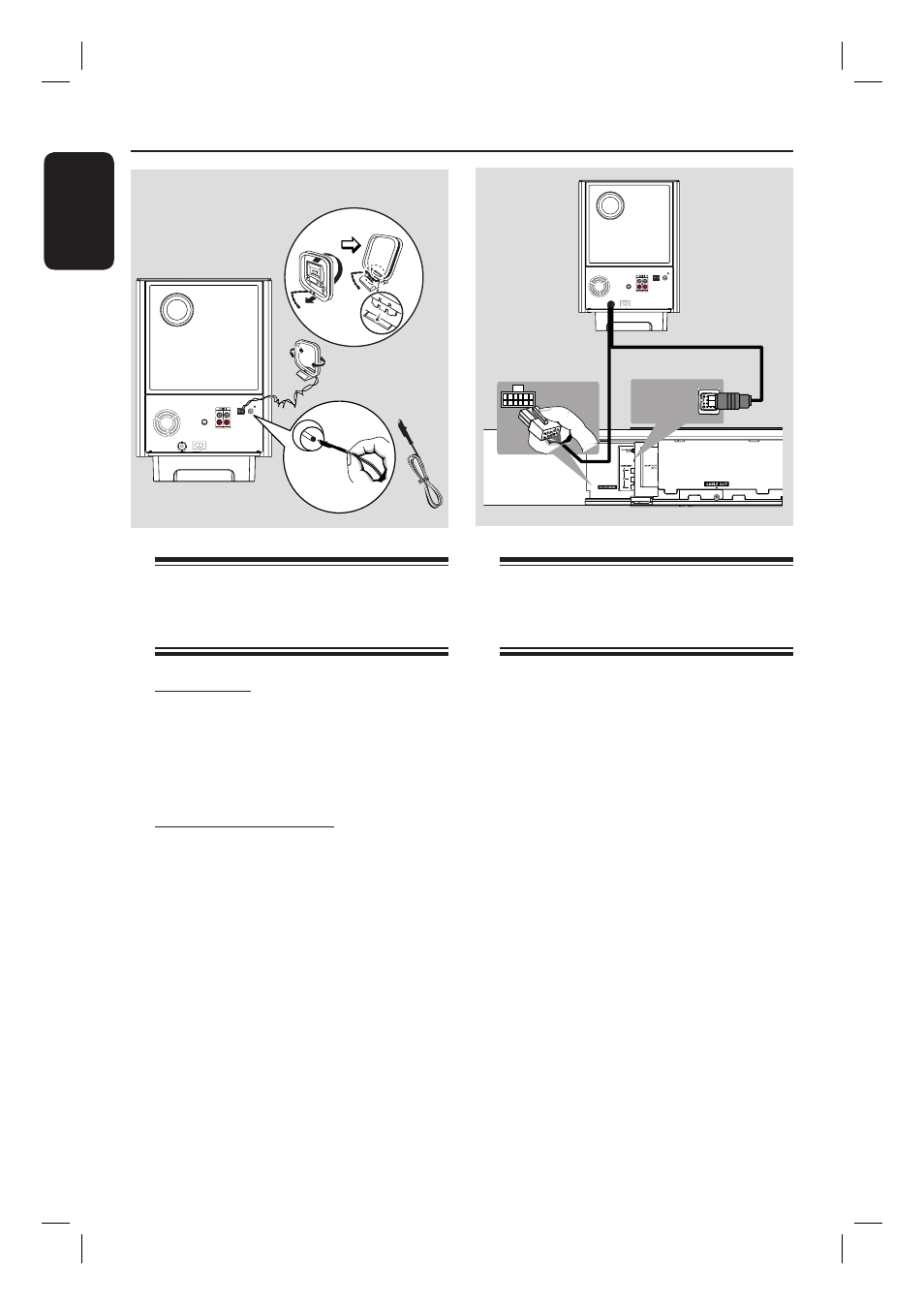

Step 3: Connecting the
FM and AM/MW
antennas
FM antenna
A Connect the FM antenna (supplied) to
the FM 75 Ω socket.
B Attach the other end of the FM antenna
to a wall.
AM/MW loop antenna
A Stand the AM/MW loop antenna upright
to fi x its claw into the slot.
B Connect the AM/MW loop antenna to
the AM/MW socket.
C Place the AM/MW loop antenna on a
shelf, or attach it to a stand or wall.
Helpful Hints:
– Adjust the position of the antennas for
optimal reception.
– To avoid interference, position the antenna
away from the electronic equipment.
– For better FM stereo reception, connect an
external FM antenna (not supplied).
Basic Connections
(continued)
Step 4: Connecting the
subwoofer to the
main unit
A Unwind the subwoofer’s TO MAIN
UNIT interconnect cable.
B Connect the white end of the
interconnect cable to the
LOUDSPEAKERS socket on the main
unit.
C Connect the black end of the
interconnect cable to the TO
SUBWOOFER socket on the main
unit.
TO SUBWOOFER
TO SUBWOOFER
TO MAIN UNIT
MW
FM/MW ANTENNA
COAXIAL DIGITAL IN AUX 1 AUX 2
FM 75
R
L
MAINS
Ñ LOUDSPEAKERS
TO MAIN UNIT
AM/MW FM/AM/MW ANTENNA
SPEAKERS
COAXIAL
DIGITAL IN
AUX 1 AUX 2
RIGHT LEFT
FM 75
R
L
MAINS
fi x the claw
into the slot
FM antenna
AM/MW antenna
