23
PREP
ARA
TION

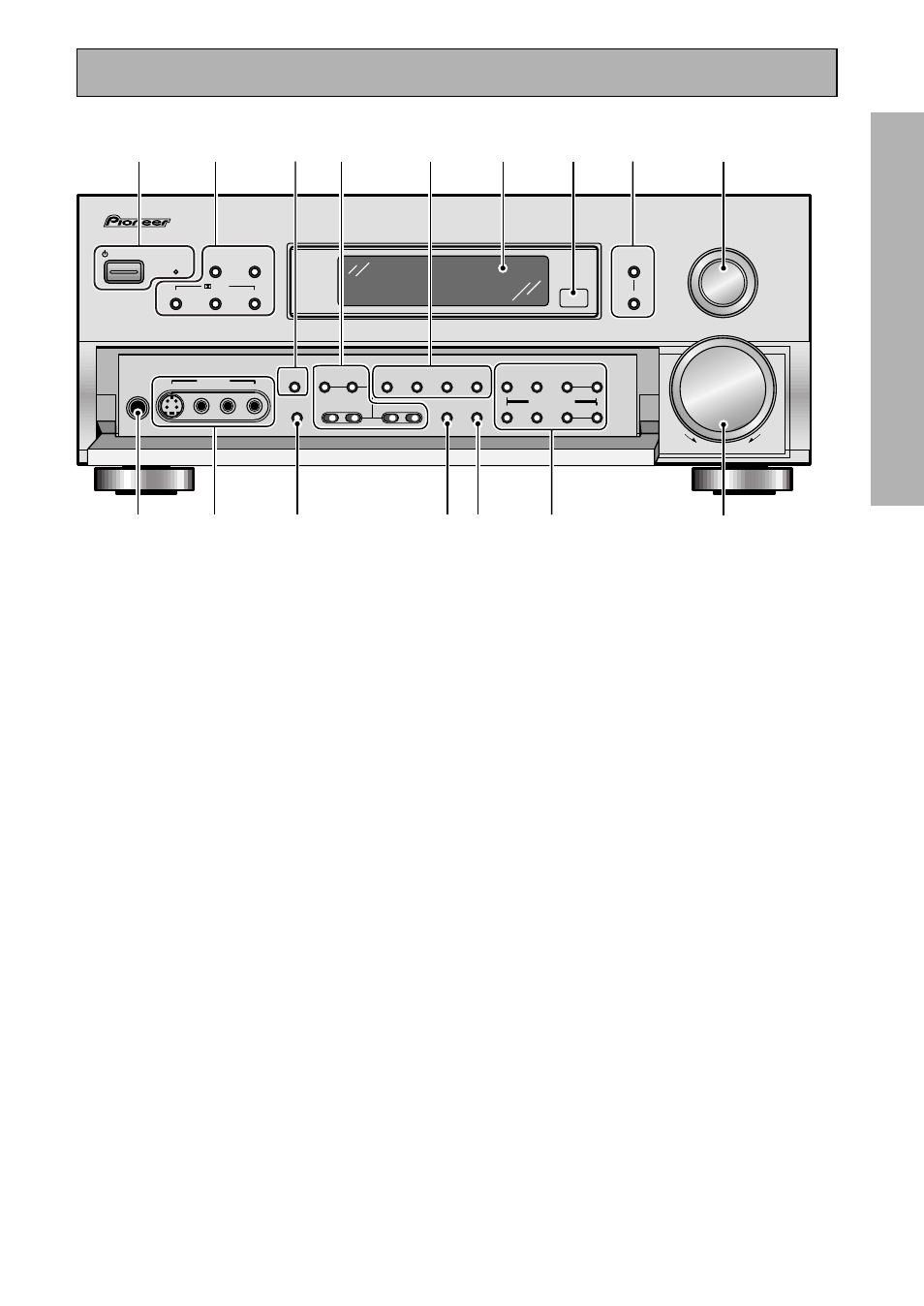

Displays & Controls
3 MULTI CH INPUT (See p.40, 51)
Use to hook up an external component that can
decode other types of signals and input them
into the VSX-37TX/36TX.
4 TONE control buttons
TONE button
This button has two functions. Firstly, it
switches between TONE ON and TONE
BYPASS, which bypasses the tone circuitry.
Secondly, you need to press the button before
using the CHANNEL SELECT buttons to adjust
the BASS & TREBLE (cannot be used in THX or
MULTI CH IN modes).
CHANNEL SELECT button
Switches the tone adjust controls between the
FRONT, CENTER, SURROUND and SUR-
ROUND BACK speakers. You can then use the
BASS and TREBLE controls to adjust the
sound.
BASS (–/+) button (See p.50)
Use to adjust low frequencies.
TREBLE (–/+) button (See p.50)
Use to adjust the high frequencies.
5 LOUDNESS button (See p.49)
Switches the LOUDNESS mode on or off
(cannot be used in THX or MULTI CH IN
modes).
DIGITAL NR button (See p.48)
Switches the DIGITAL NR on or off (cannot be
used in THX or MULTI CH IN modes).
SIGNAL SELECT button (See p.47)
Use to select the type of signal being input into
the receiver. Press SIGNAL SELECT repeatedly
to select one of the following:
ANALOG – To select an analog signal.
DIGITAL – To select a optical or coaxial digital
signal.
AC-3 RF (VSX-37TX only) – To select an 2 RF
signal.
AUTO – This is the default. If there are analog,
digital and 2 RF signals input, the receiver
automatically selects the 2 RF signal. If there
are analog and digital signals input the digital
will be selected.
FL DIMMER button (See p.52)
Use to adjust the brightness of the main
display.
6 Display (See p.25)
7 Remote sensor
Point the remote control toward the remote
sensor to operate the receiver.
8 MULTI-ROOM & SOURCE button (See
p.78-82)
Press to use the multi room feature (requires
an optional PIONEER Multi-Room Remote
Sensor Unit MR-100 or another IR receiver).
CONTROL button (See p.78-82): Used
together with the INPUT SELECTOR to select
the function or use with the MASTER VOLUME
to select the volume of the MULTI ROOM
system.
STANDBY/ON DSP
MODE
MULTI-ROOM
&SOURCE
INPUT
SELECTOR
MASTER
VOLUME
THX CINEMA ADVANCED STANDARD CONTROL
STANDBY
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
STEREO/
DIRECT
/DTS
N∫m¿≤>ım
DOWN UP
PHONES
S-VIDEO VIDEO
MULTI CH
INPUT
SIGNAL
SELECT FL
DIMMER
TAPE 2
MONITOR
TONE
CHANNEL
SELECT LOUDNESS
DIGITAL
NR CLASS BAND
TUNER CONTROL
MEMORY MPX
VIDEO
SELECT SPEAKERS
- TUNING +
- STATION + - TREBLE + - BASS +
L AUDIO R
VIDEO INPUT
1 2 5 3 6 7 8 9
10 11 12 13 14 15 16
4
VSX-36TX
