/ 2006 PC/104 and Small Form Factors Resource Guide
PC/104 and SMALL FORM FACTORS Resource Guide 2006

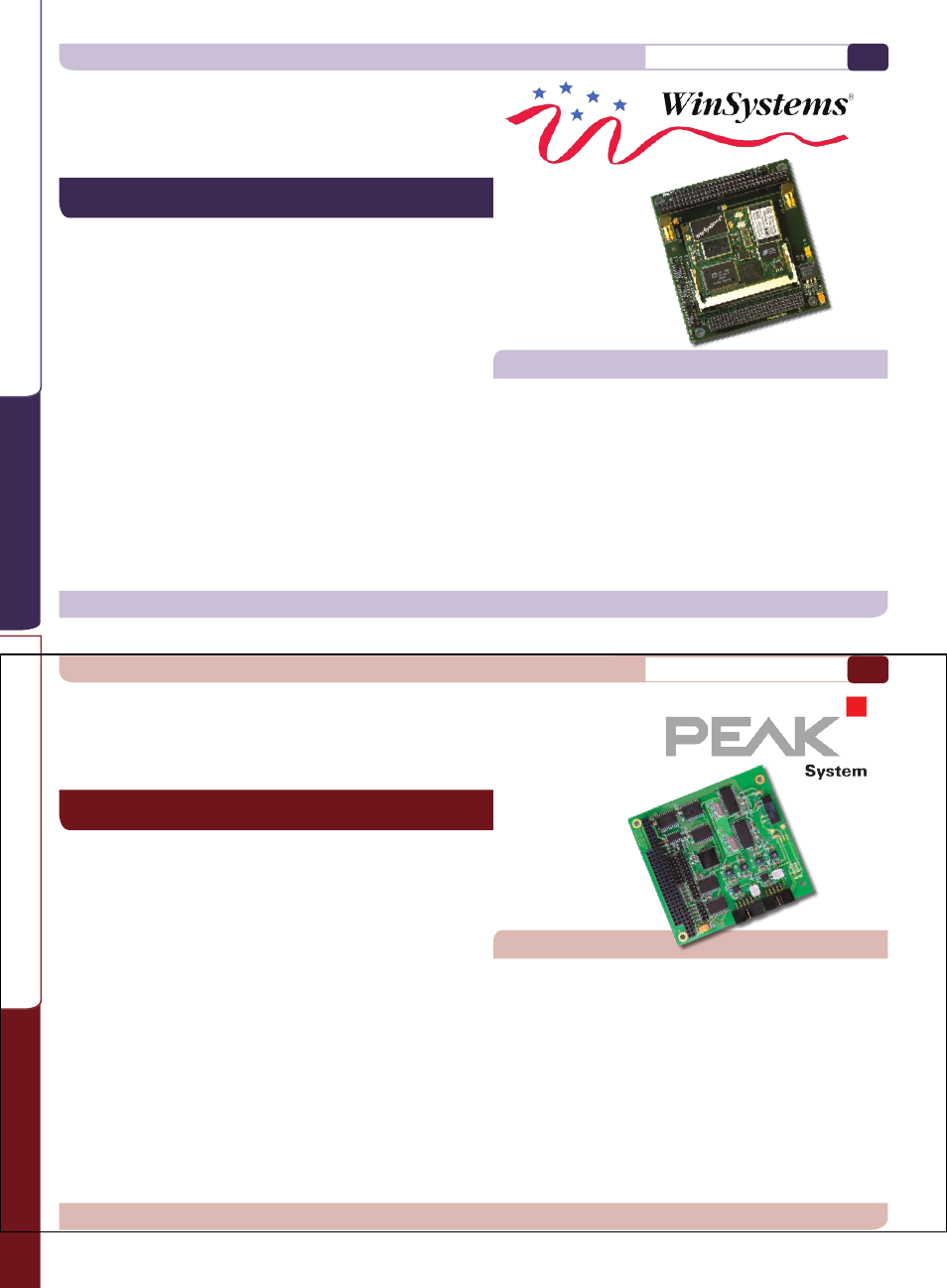

Asis 2U ATCA Shelf
Baud rate settings up to 1 Mbaud; CAN bus connection via
Sub-D, 9-pin (to CiA DS102-1)
Two can be configured totally independently; SJA1000 CAN
controller with 16 MHz clock frequency
Multiple PC/104 cards can be operated in parallel (interrupt
sharing)
Device drivers (VxD) and interface DLL for WIN 9x/ME, NT/2000/XP,
Linux, and RT-Linux support
Choice of 14 different port addresses and eight different interrupt
addresses
Works 100 percent with CANfestival (free CANOpen Master/Slave
SW stack for LINUX)
■
■
■
■
■
■
The PCAN-PC/104 is a compact and powerful PC/104
CAN plug-in card, which enables two CAN networks to
be simultaneously networked with a PC/104 system.
There is ample flexibility when configuring the card to
adapt it to a PC/104 system, since there are 14 different
port addresses and eight interrupt assignments from
which to choose. Two Philips SJA1000 CAN controllers
are used. For ease of installation, the port addresses
available to the user are 200H to 3A0, and the hard-
ware interrupts are IRQ3, IRQ4, IRQ5, IRQ7, IRQ10,
IRQ11, IRQ12, and IRQ15. They can be set by means of
jumpers. Multiple PCAN-PC/104 cards can be operated
without any problem (interrupt sharing).
The PCAN-PC/104 card package includes software and
sources for in-house programming.
For more information, contact: [email protected]
PCAN-PC/104 CAN
PEAK-System Germany
Otto-Roehm-Strasse 69 • Darmstadt, D-64293
Tel: +49-6151-8173-20 • Fax: +49-6151-8173-29
www.peak-system.com
RSC# 24818 @ www.pc104online.com/rsc
FEATURES:
Industr
ial automation
Fieldbus: CAN PC/104 and SMALL FORM FACTORS Resource Guide 2006
IEEE 802.11b/g standard, dual-mode, Wi-Fi-certified wireless
LAN support
Up to 54 Mbps at 2.4 GHz
Industry standard, wireless LAN security support; upgradeable
support for AES
Support for optional antenna for optimized WLAN performance
for multi-antenna systems
PC/104-Plus module available with or without wireless module
installed
■
■
■
■
■
The PPM-Wireless module offers a high-speed, indus-
trial data network based upon MiniPCI wireless modules
and Ethernet utilizing a TCP/IP protocol stack, allowing
simplified cabling installation and configuration issues.
An SMA external connector enables the selection of the
appropriate antenna for the application.
These units are shipped with an empty MiniPCI socket
so that the user can select their own cards from Intel,
Broadcom, Foxconn (Atheros), and others; or with an
Intel PRO/Wireless 2200BG Mini-PCI card installed by
WinSystems.
WinSystems specializes in designing and manufacturing
embedded computers for industrial applications. The
company is recognized as a leading supplier of embed-
ded PC board-level products.
For more information, contact: [email protected]
802.11b/g Wireless
WinSystems, Inc.
715 Stadium Drive • Arlington, TX 76011
Tel: 817-274-7553 • Fax: 817-548-1358
www.winsystems.com
RSC# 20939 @ www.pc104online.com/rsc
Wireless
FEATURES:
Communications
