Polaroid PTV-701 - Manual

DC
Car Charger
AC
Adaptor
A / V
Cables
12
13
14
16
15
18
17
19 20
3
1
2
4 5 6 7 8 9 10 11

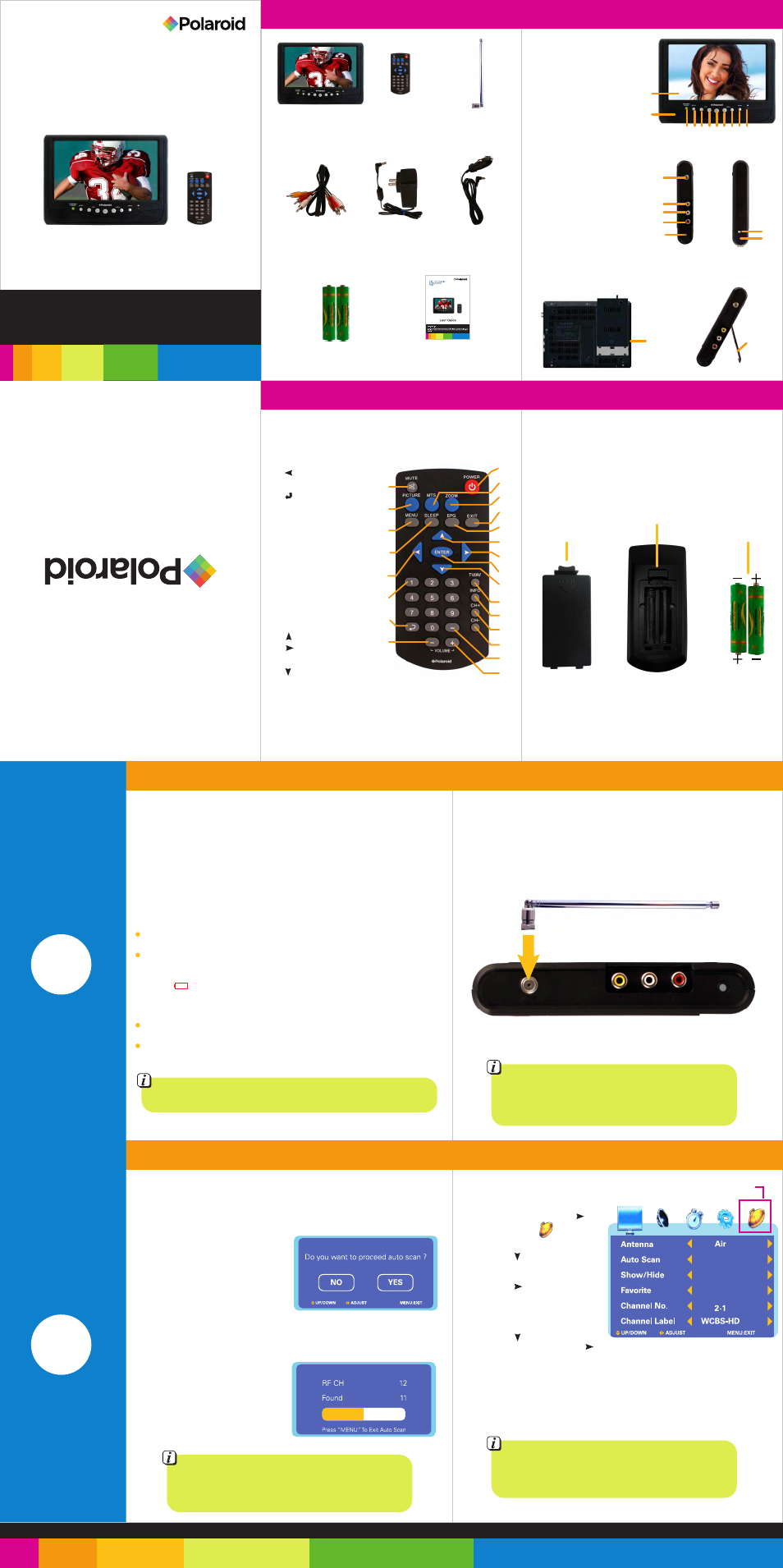

User Guide
In the box
Digital TV Remote
Control
Antenna
Location of controls Included
Installing the batteries
Polaroid and Polaroid & Pixel are trademarks of PLR IP Holdings, LLC, used under license. PLR
IP Holdings, LLC does not manufacture this product or provide any Manufacturer’s Warranty or
support.
www.polaroid.com
9
10
11
12
13
14
15
16
17
18
19
20
21
23
22
1
2
3
4
5
6
7
8
1. Open the battery cover.
2. Place the 2 (AAA) batteries (included) into the
compartment. Be sure the positive and negative
terminals are positioned correctly as shown.
3. Close the battery cover.
2 - (AAA)
Batteries
User Guide
Remote control
Connecting the antenna
1. With the antenna in the down position, screw it into the RF IN antenna jack
on the TV.
2. For the best reception, stretch the antenna out to its fullest length before
scanning for channels.
Charging
This television contains a built-in rechargeable battery. You may power the
television by charging its internal battery or you may power the television by
using the included AC adaptor. Follow the instructions below to charge the
television properly.
1. Connect the AC adaptor to the DC 9-12V IN jack on the TV and plug it into a
wall receptacle.
2. Charging time depends on whether the TV is ON during charging or in
standby mode.
If the TV is ON – the charge time is approximately 6 hours.
If the TV is in standby mode – the charge time is approx imately 4 hours.
3. When battery strength is low, the TV will display the following icon on the
screen: ,this means it is time to recharge the battery.
4. The [Standby/Power] indicator light on the front of the TV turns green when:
The power cord is connected, and the TV is fully charged.
The TV is running on battery power.
The first time the television is turned on you must scan for available channels.
You should also scan for available channels whenever you are in a new area, or
when reception is bad.
1. Make sure that the antenna is connected to the TV and slide the power
[ON/OFF] switch to the ON position.
2. When you turn on the TV for the
first time, the following screen
will be displayed:
3. If this screen does not appear, then press the [AUTO/OK] button on the TV.
4. Press the [VOL+] button to select “Yes” and press [AUTO/OK] button
to confirm.
5. The TV will start scanning
for available channels and
store them into memory.
Scanning by remote control
1. Press the [MENU] button on
the remote and press the [ ]
button to select:
2. Press the [ ] button to select
“Antenna”.
3. Press the [ ] button to select
“Air” or “CATV” (cable TV),
depending on the type of
connection.
4. Press the [ ] button to scroll to
“Auto Scan” and press the [ ]
button twice. The TV will start
scanning for available channels
and store them into memory.
Note: Do not move or unplug the TV while scanning for
channels/subchannels.
2
1
Getting started
Scanning for channels
Note: The antenna must be connected to receive
the highest amount of channels available during
channel scanning.
Note: Use the included car charger to charge the TV in a car
or boat.
This television is not meant to be used in a
moving vehicle. ATSC Digital tuners are not
capable of receiving a signal when in motion.
Do not move or unplug the TV while scanning
for channels/programs as this will interrupt the
scanning process and you will not receive all
possible channels/subchannels.
Select
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
LCD screen
Dual speakers
[Standby/Power] indicator
[MENU] button
[CH-] button
[CH+] button
[AUTO/OK] button
[VOL-] button
[VOL+] button
[MODE] button
Remote sensor
RF IN antenna jack
VIDEO IN jack
AUDIO IN L jack
AUDIO IN R jack
Headphone jack
Power [ON/OFF] switch
DC 9-12V IN jack
TV stand (pull)
Battery compartment
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
[MUTE] button
[PICTURE] button
[MENU] button
[SLEEP] button
[ ] left button
Numeric buttons
[ ] previous channel
button
[VOL-] volume down
button
[POWER] button
[MTS] sound field
button
[ZOOM] display
mode button
[EXIT] button
[EPG] program
guide button
[ ] up button
[ ] right button
[ENTER] button
[ ] down button
[TV/AV] source button
[INFO] program information button
[CH+] channel up button
[CH-] channel down button
[ ---- ] channel program button
[VOL+] volume up button
PTV-701
Portable Digital Television Portable Digital Television
7.0” LCD Display
Cover
Remote control
Batteries
