plastic protective covering from the
threaded shaft before removing the retain-
ing washer.
Retaining
Washer
Dust Cup

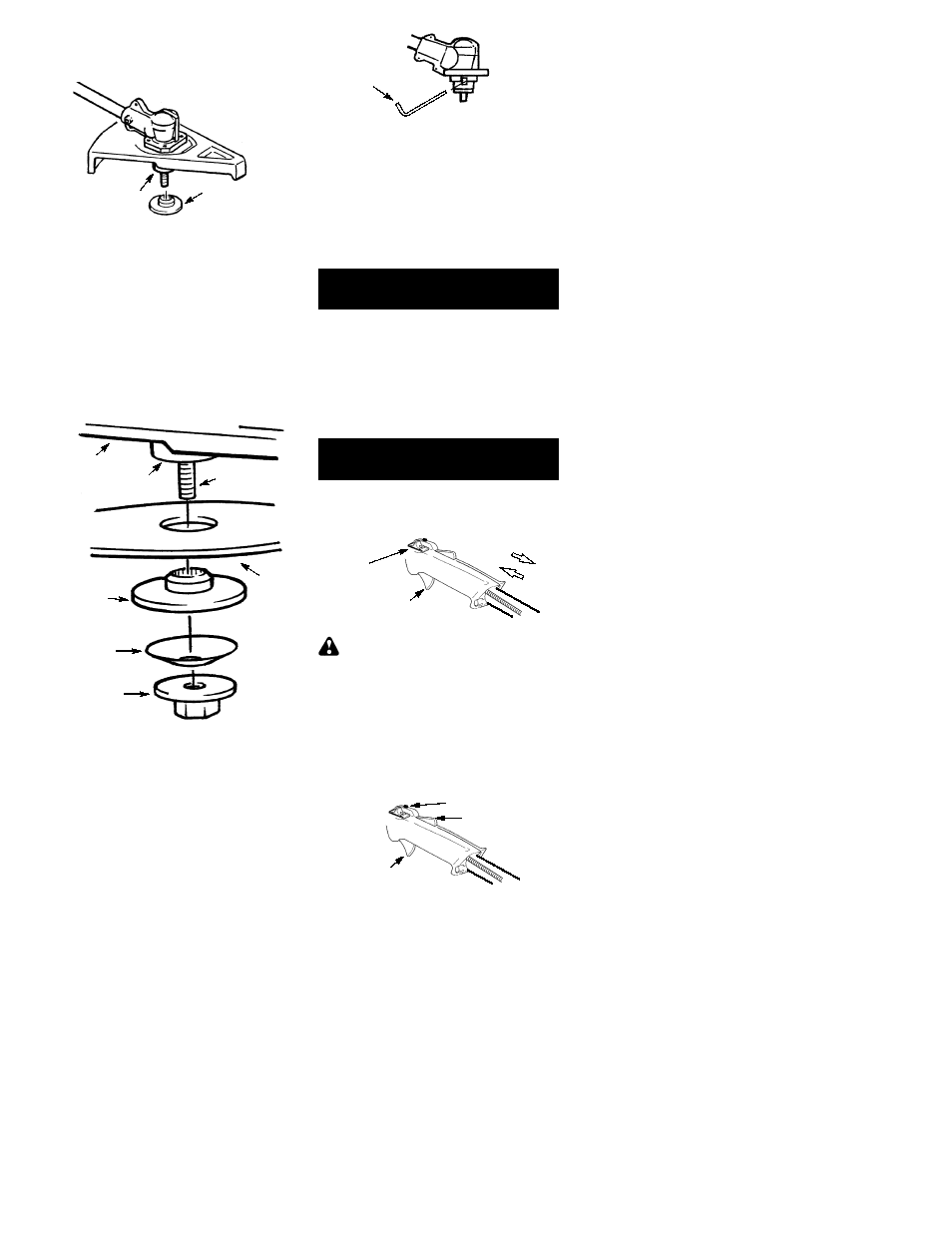

S Install the blade over the threaded shaft ex-
tending from the gearbox between the dust
cup and the retaining washer. Make sure the
raised part of the retaining washer is facing
the gearbox, and the raised area fits into the
hole in the center of the blade.
S Slide the blade and retaining washer onto
the shaft of the gearbox.
S Now place the cupped washer onto the
shaft. Make sure the cupped side of the
washer is toward the blade.
S Install the blade nut by threading onto the
shaft counterclockwise.
Shield
Blade Retaining
Washer
Dust Cup
Cupped
Washer
Nut
Threaded
Shaft
NOTE: Make sure all parts are in place as il-
lustrated, and the blade is sandwiched be-
tween the dust cup and the retaining washer.
There should be no space between the blade
and the dust cup or the retaining washer.
S
Align hole in the dust cup with the hole in the
side of the gearbox by rotating the blade.
S Insert a hex wrench into the aligned holes.
This will keep the shaft from turning while
tightening the blade nut.
Hex Wrench
S Tighten the blade nut firmly with a wrench
while holding hex wrench in position.
S Remove the hex wrench.
S Turn blade by hand. If the blade binds
against the shield, or appears to be uneven,
the blade is not centered, and you must rein-
stall.
NOTE: To remove blade, insert hex wrench
into aligned holes. Un-thread nut and remove
parts. Be sure to store parts and instructions
for future use.
FUEL YOUR UNIT
This engine is certified to operate on unleaded
gasoline. Gasoline must be mixed with a good
quality 2-cycle air-cooled engine oil designed to
be mixed at a ratio of 40:1. Poulan/Weed Eater
brand oil is recommended. (A 40:1 ratio is ob-
tained by mixing 3.2 ounces of oil with 1 gallon of
unleaded gasoline). When mixing fuel follow the
instructions printed on the container. Always
read and follow the safety rules under FUEL
SAFETY.
STARTING
HOW TO STOP YOUR UNIT
To stop the engine, move the ON/STOP
switch to the STOP position (toward the cut-
ting head).
Throttle Trigger
ON/STOP
Switch
ON
STOP
STARTING YOUR ENGINE
WARNING: The blade or trimmer
head will turn while starting the engine. Avoid
any contact with the muffler. A hot muffler can
cause serious burns.
NOTE: A special feature called the “throttle
lock” holds the throttle trigger in the depressed
position during starting.
S
Lock throttle trigger into the starting postion
by first pressing the lock--out lever on the
top of the control handle. While the lock--out
lever is depressed, squeeze and hold the
throttle trigger.
Throttle Trigger
Lock--out
Lever
Lock Button
