Unpacking
Upon delivery, open shipping containers and check
that all parts are in good condition. Any damage
should be reported to your distributor and shipping
agent immediately. Before proceeding further, read
your manual and familiarize yourself thoroughly
with assembly, maintenance and safety
procedures.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly
for assembly, maintenance and safety instructions.
Shipping Contents
Note: This unit is shipped in two cartons.
Stand Carton
1 Jointer Stand
1 Door with Mounting Hardware
1 Dust Chute with Mounting Hardware
Main Unit Carton
1 Jointer Assembly
1 Fence Assembly
1 Pulley Cover
1 Belt
1 Cutterhead
Guard
2 Push Blocks
1 Fence Handle
1 Hardware Bag*
* Contents of Hardware Bag:
(Shown full scale in Figure 1)
4 1/4-20 x 1/2” Pan Head Screws (A)
3 3/8” x 5/8” Spring Washers (B)
4 1/4-20 x 1/2” Flat Washers (C)
3 Lock Bolts (D)
Tools Included (Model 54A)
1 8/10mm Open End Wrench
1 12/14mm Open End Wrench
1 3mm
Hex Wrench
1 4mm T-Hex Wrench
1 8mm Hex Wrench
1 Cross Point Screwdriver
Tools Included (54HH only)
1 8/10mm Open End Wrench
1 12/14mm Open End Wrench
1 3mm
Hex Wrench
2 Star Point Screwdrivers (E)
5 Knife
Inserts (F)
10 Knife Insert Screws (G)
1 Cross Point Screwdriver

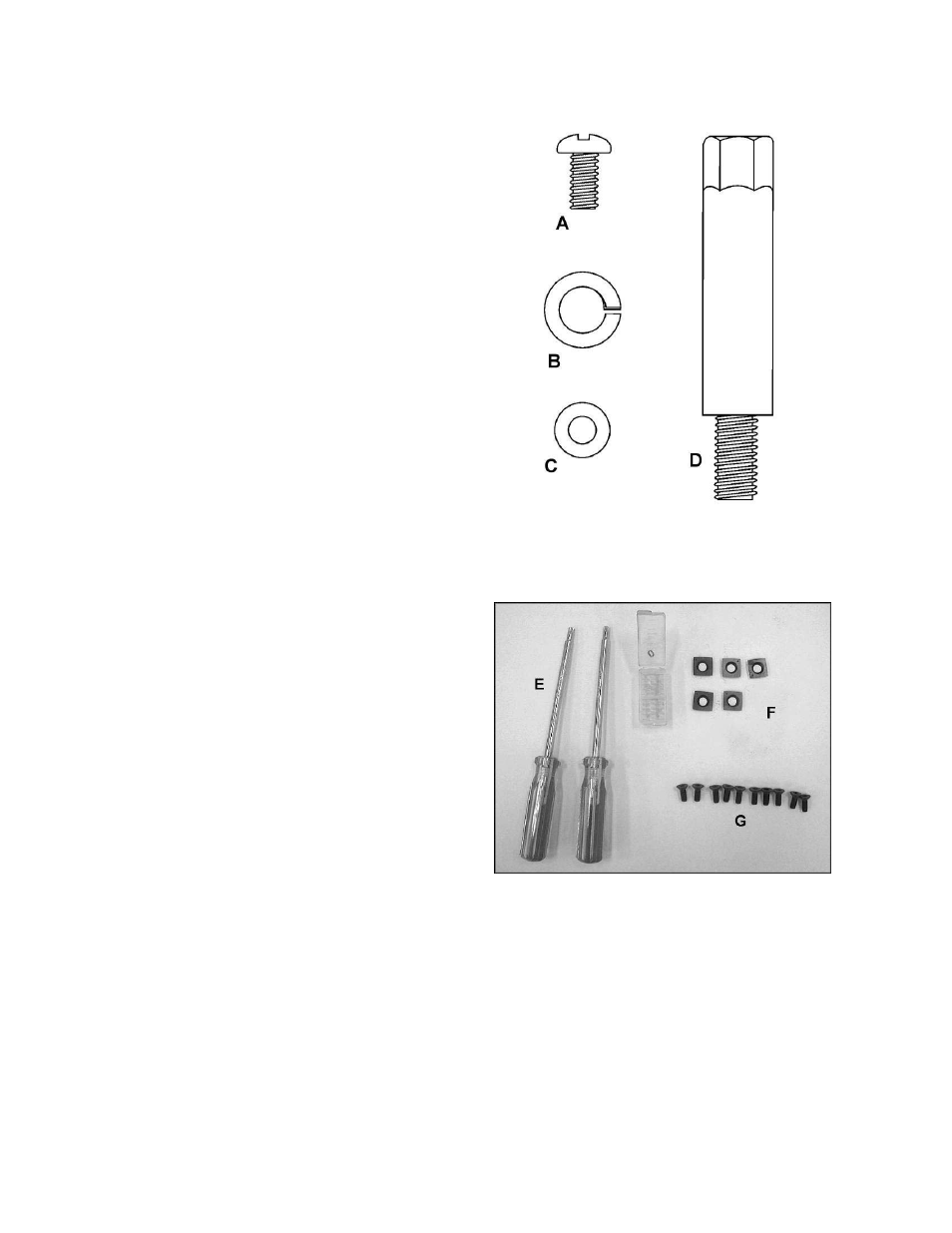

Figure 1
(Hardware Bag contents – all models)
Figure 2
Tools included with 54HH only
Tools Required
open end wrenches (8, 10, 12, 14, & 19mm)
hex wrenches (3 & 6mm)
