ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tools, assembly requires a Phillips screwdriver and two
adjustable wrenches .

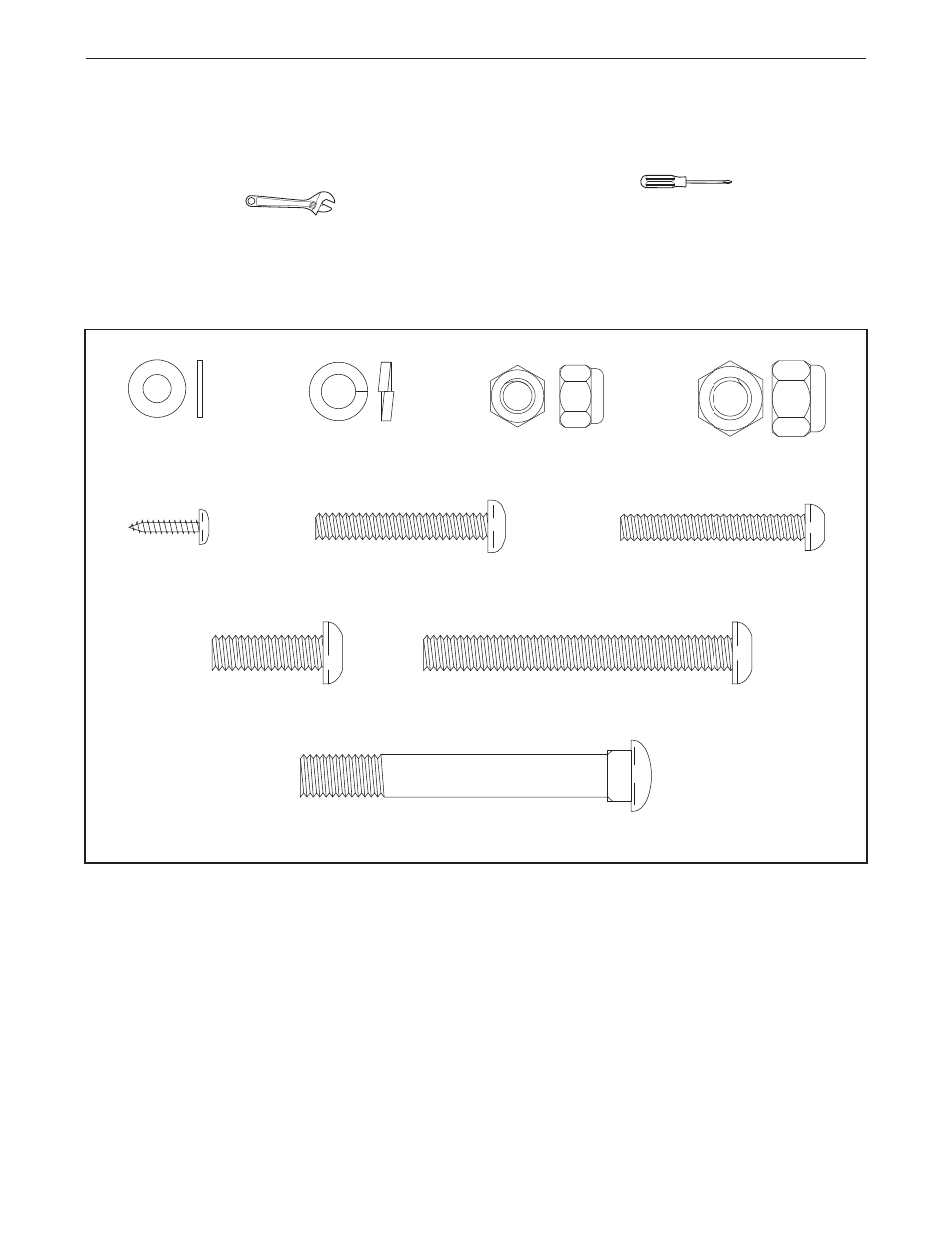

Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on page 14. The number following the key number is
the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in
the parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-533-1333.
M10 x 75mm Carriage Bolt (51)–4
M10 Nylon
Locknut (63)–4
M8 Nylon
Locknut (60)–4
M8 Split
Washer (59)–5
M
M6 Washer
(55)–8
M6 x 38mm Button
Bolt (48)–4
M6 x 42mm Button
Screw (49)–4
M8 x 25mm Button
Screw (33)–3
M8 x 70mm Button
Bolt (54)–2
M4 x 16mm
Round Head
Screw (52)–4
