PUMP-Rec-07 Rev B
PUMP
Recommendation

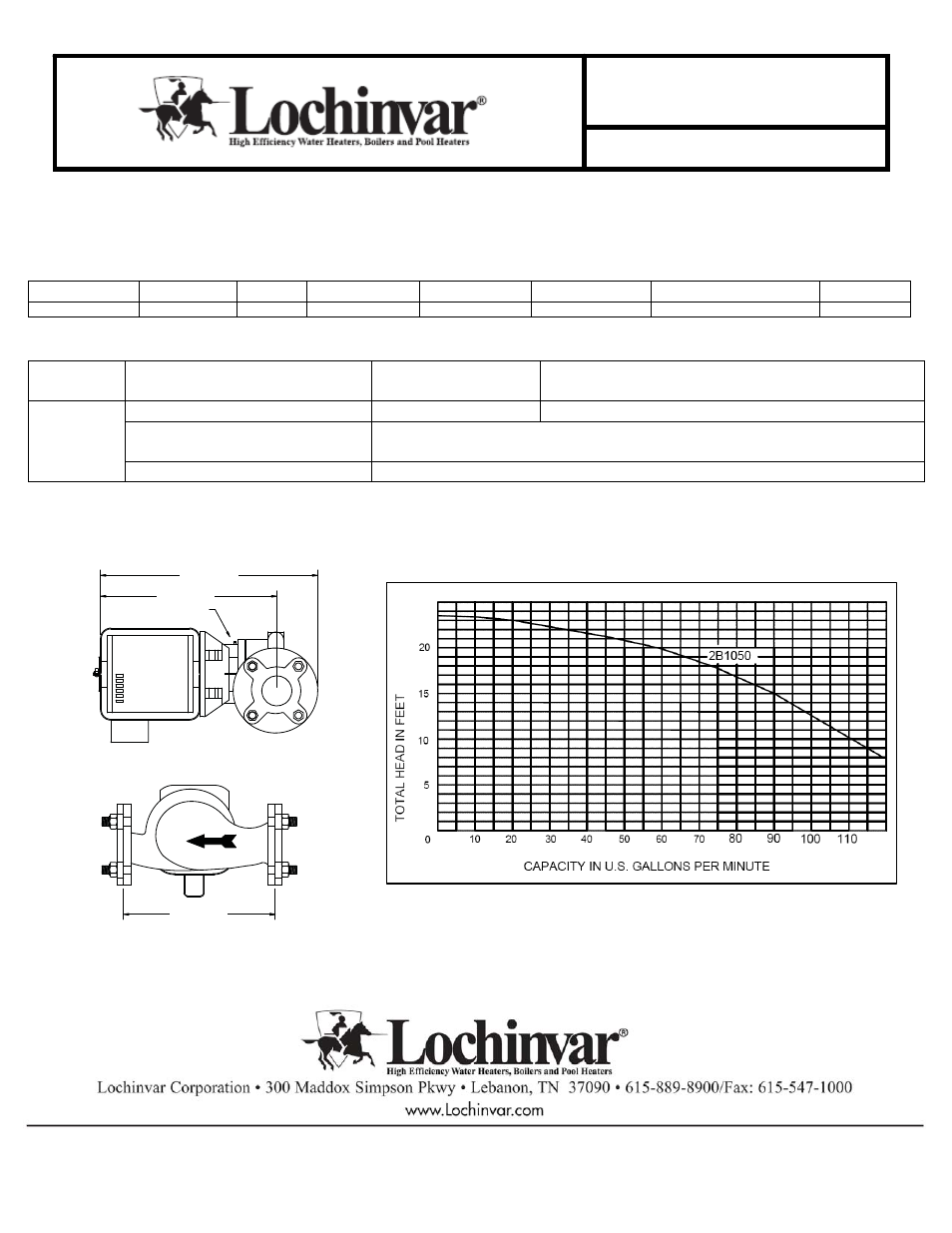

PUMP RECOMMENDATION FOR
COPPER-FIN II 0991-2071 WATER HEATER
Pump Specifications
Part No. HorsePower Flanges Valute Material Flange Material Vendor Vendor Product Series Orientation
ARM3024PAB 1/2 2-1/2" Bronze Bronze Armstrong 2B1050 Horizontal
Installation Specifications
Recommended for Based on
Pump Model Numbers Maximum GPM Installation Type
Copper-Fin II Wtr Htr, CF(N,L) 0991-2071 90 GPM Single Water Heater piped to Single Storage Tank
ARM3024PAB Based on Based on
Minimum Pipe Diameter Connecting piping
2-1/2" Maximum 45 feet straight pipe with 6-Elbows, 2-Unions,2-Ball Valves and 1-Cold Water Inlet Tee
IMPORTANT: Read the Copper-fin II 399-2070 Installation and Operation Manual. If the planned system exceeds
the pump capacity in flow and/or head see “Pump Curves-All Pumps” for alternate pumps and pump curves.
OIL PORT
A
C 16”
19-1/2”
B D 11-1/2”
