Rev. F 10/09 6 2084537 Rev. F 10/09 3 2084537

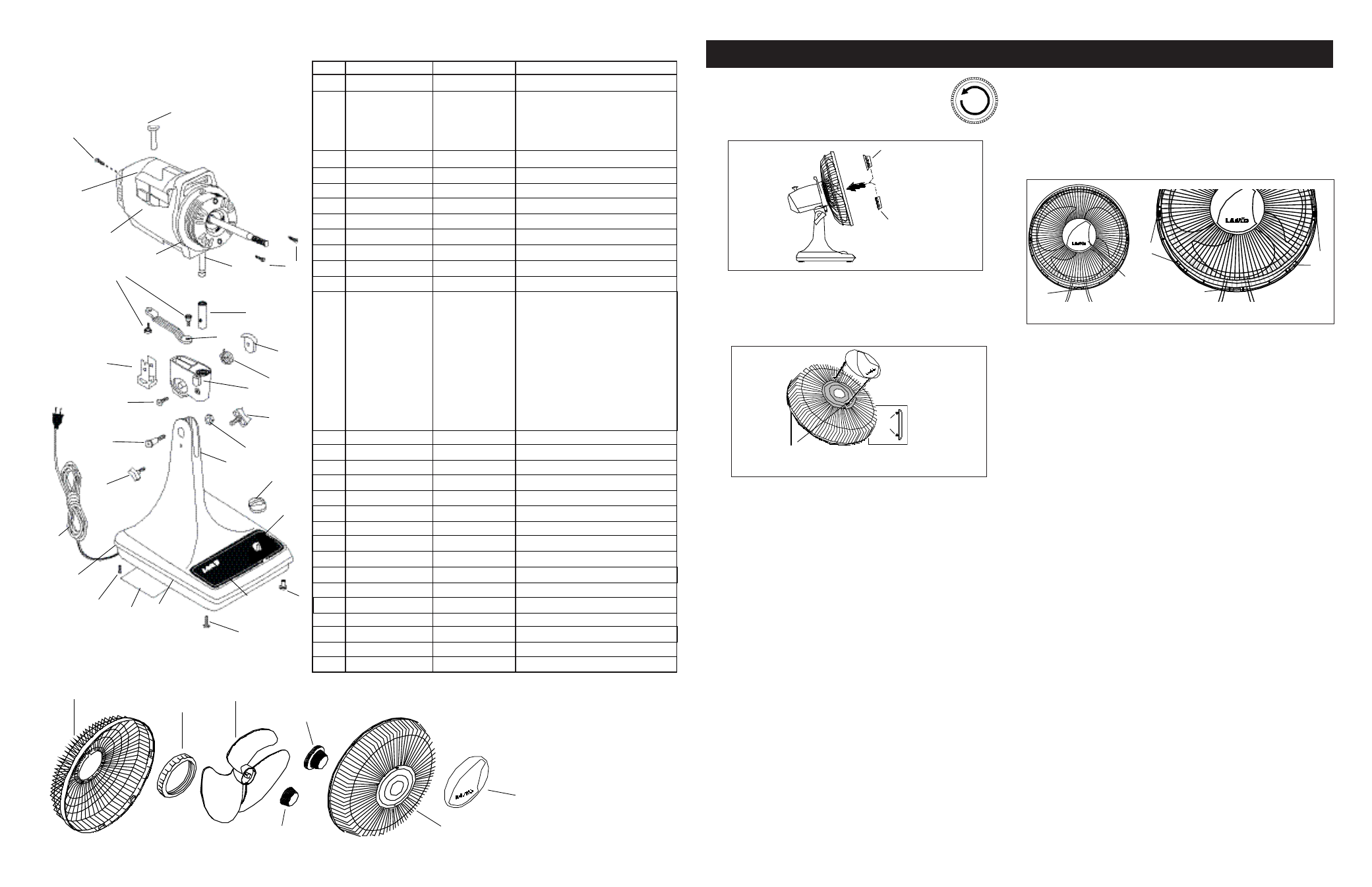

5. To secure Blade, screw Spinner onto Shaft
Counter Clockwise until tight on Blade hub.
(Figure 5)
ASSEMBLY
6. Install Ornament into Metal Front Grill. Insert Tabs into
rectanglar Slots. Snap into place. (Figure 6)
7. With Fan Head tilted back and centered, align Ornament of
Front Grill so it is horizontal. Insert bottom of Front Grill
into Rear Grill. Tabs at the bottom of Rear Grill should be
between two wires of Front Grill. Snap Front Grill into the
Rear Grill beginning at the top and working down both
sides. (Figure 7)
16" Fan Spinner
Figure 5
12" Fan Spinner
Slot
Figure 6
Ornament
Side View
Tab
* Parts 2-4 ordered as a Bagged Assembly
** Parts 14-21 ordered as an Assembly
1
2
6
3 (16")
5
4
3 (12")
11
12
13
16
14
17
18
19
25
22
26
27
28
29
30
31
32
33
34
35
36
24
23
20
21
15
7
8
9
10
1 2011212 2011200M Rear Grill
2098060 2098061 Parts Bag*:
2 2010359 2010359 Plastic Nut (Large)
3 2010058 2010059 Spinner
4 2010380L 2010380L Ornament
5 2096531I 2096529I Front Grill
6 2010008 2011013 Blade
7 2010710 2010710 Motor Cover (Front w/Threads)
8 2010661 2010661 Motor Cover (Rear)
9 02030062GL 02030066GL Motor
10 02090040 02090040 Screw Motor Cover (1)
11 2010119 2010119 Oscillation Knob
12 02090060 02090060 #7 x .080 PPH Type B Screw (2)
13 07091657 07091657 Threaded Spindle
2010263S 2010263S Neck Assembly **:
14 2010251 2010251 Neck Piece Bearing
15 2010276 2010276 Oscillation Link
16 2090140 2090140 Link Screw (2)
17 2060090 2060090 Elevation Washer
18 02090585 02090585 Elevation Spring
19 2010252S 2010252S Neck Piece
20 02090051 02090051 Neck Screw
21 2060071 2060071 Elevation Range Plate
22 02090033 02090033 Hex Nut
23 02090521 02090521 Elevation Shaft
24 02010110A 02010110A Small Adjustment Knob
25 02010109A 02010109A Large Adjustment Knob
26 2010533 2010533 Stand
27 2009224 2009224 Knob
28 02055087 02055087 Switch
29 2010415 2010415 Rubber Feet (4)
30 02065457 02065458 Stand Ornament
31 02090038 02090038 Screw #8 x 9/16 PPH Type 25
32 2010343 2010343 Bottom Plate (Plastic)
33 2060012 2060012 Bottom Plate (Metal)
34 2091145 2091145 Screw #8 x 1.5 Type A POH
35 7091854 7091854 Crimp Connect
36 02050013WB 02050013WB Power Supply Cord w/Plug
37 2084537 2084537 Instruction Sheet (Not Shown)
REPLACEMENT PARTS LIST
KEY 12" OSC 16" OSC DESCRIPTION
Tab
Tab
Snaps
Snaps
Ornament
Figure 7
