Chapter 4. Locating parts, controls, and connectors
This chapter provides information to help you locate your server parts, controls, and connectors.
Front view
Figure 1 “Front control and connector locations” on page 9 shows the locations of the controls and
connectors on the front of your server.

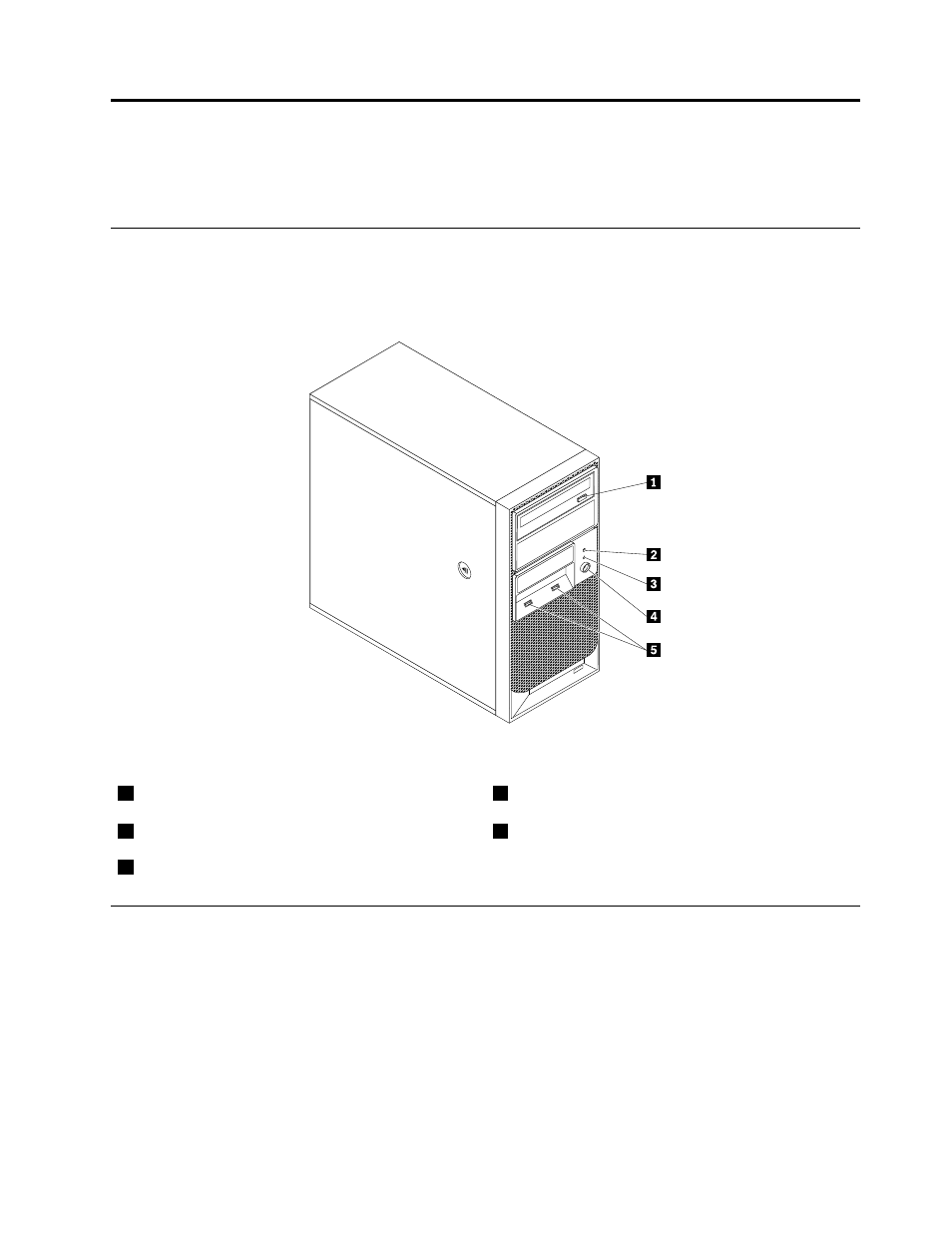

Figure 1. Front control and connector locations
1 Optical drive eject/close button 4 Power switch
2 Hard disk drive activity LED 5 USB connectors (2)
3 Power-on LED
Rear view
Figure 2 “Rear connector locations” on page 10 shows the locations of the connectors on the rear of
your server. Some connectors on the rear of your server are color-coded to help you determine where to
connect the cables in your server.
© Copyright Lenovo 2011 9
