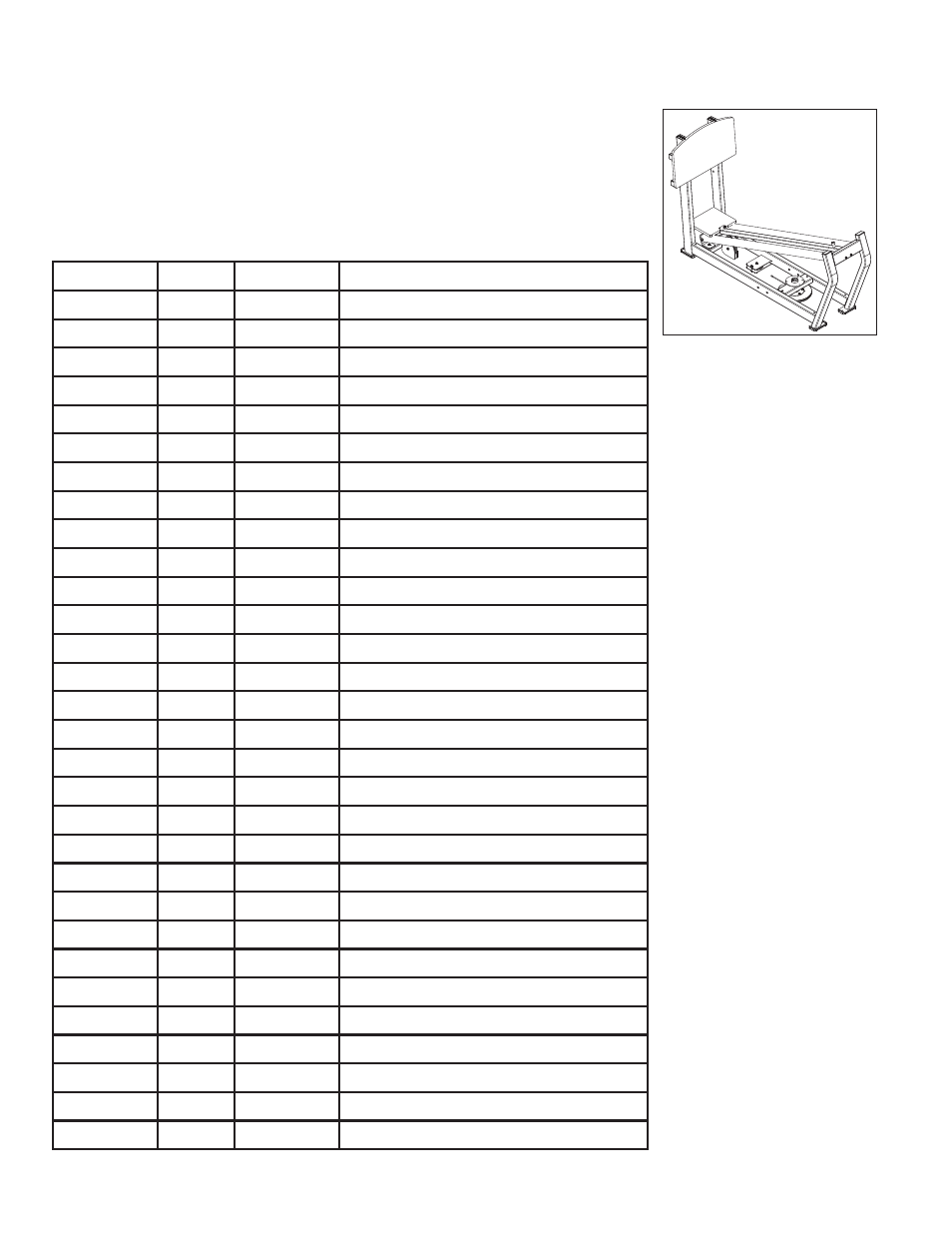

BASE FRAME ASSEMBLY LEGEND
PSSLPSE SEATED LEG PRESS
ITEM NO.
QTY.
PART NO. DESCRIPTION
1
1
7447201
WLDMT, PSSLP MAIN FRAME
2
1
3237801
PULLEY, 4.5" OD
3
2
7352001
BUMPER, 2-1/8 X 4-5/8
4
1
7450901
BOARD, PSSLP LINEXED
5
1
7494301
BOARD, PSSLP LINEXED
6
10
3237401
PLUG, 7/16" HOLE
7
2
7352301
CAP, END 2 X 3
8
2
7352401
CAP, END 2 X 4
9
4
7352201
CAP, END 1-1/2 X 2
10
2
7408895
WLDMT, FZ/PS-SLP RAIL BRKT SG
11
1
3239601
PULLEY, 6" OD x 10MM ID
12
2
7961101
TUBE, RAIL
13
2
7444601
BUMBER, DONUT
14
23
3236601
WASHER, 3/8 SAE SS
15
9
3236208
SCREW, M10 X1.5 55MM
16
9
3236801
NUT, M10 HEX NYLOCK SS
17
2
3236204
SCREW, M10 X1.5 35MM
18
2
3236212
SCREW, M10 X1.5 75MM
19
2
7348101
WASHER, SPACER
20
1
3236207
SCREW, M10 X1.5 50MM
21
2
3241315
SCREW, M12 X1.75 90MM
22
2
3236803
NUT, M12 HEX NYLOCK SS
23
4
7388201
FOOTPAD, PS RUBBER
24
1
7511801
ASSY, FZ/PS-SLP RND CAM
25
1
3243201
BEARING, 6007 BALL
26
1
7511395
WLDMT, FZ/PS-SLP HUB SG
27
1
7511601
KEY, .375 SQUARE X 1.25
28
1
7690101
BUMPER, SLEEVE - 1 INCH DIA
29
2
3236213
SCREW, M10 X1.5 80MM
30
4
3241401
WASHER, FLAT 12MM SS
