7 Chapter 3: Getting to Know the Voice Gateway
The Back Panel
Chapter 3: Getting to Know the Voice Gateway
The Back Panel
The Voice Gateway’s ports are located on the back panel.
LINE Use this port to connect the Voice Gateway to your standard telephone wall jack.
PHONE Use this port to connect an analog phone (or fax machine) with an RJ-11 telephone cable.
ETHERNET The ETHERNET port connects to a network device, such as a PC or a switch, with an
Ethernet network cable.
INTERNET The INTERNET port connects to your cable or DSL modem.
Power The Power port is where you will connect the power adapter.

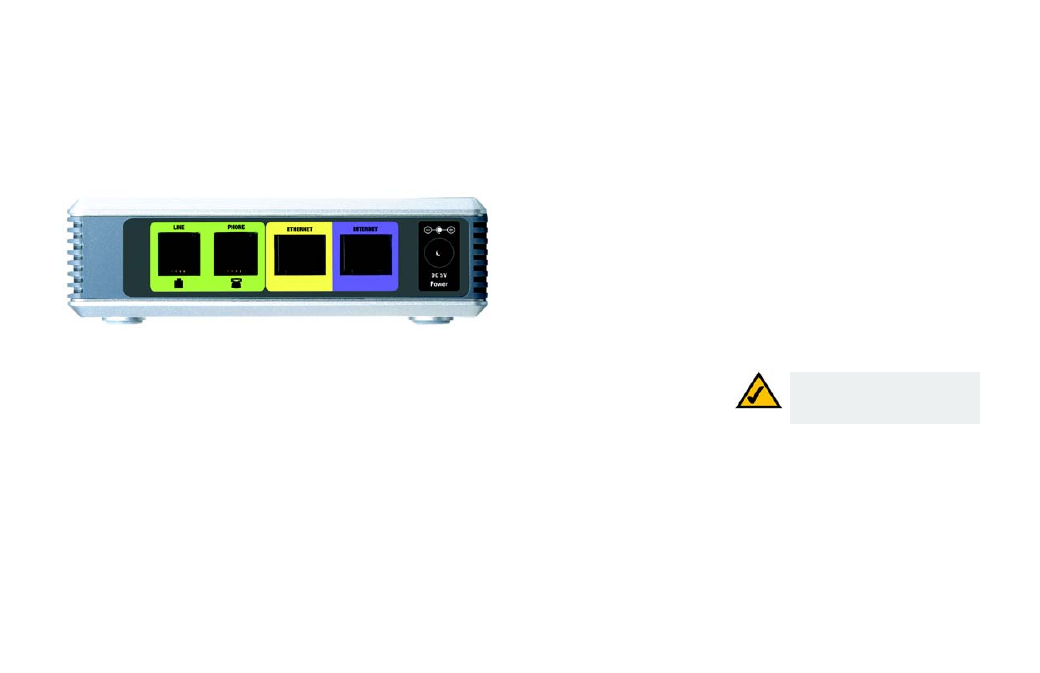

Figure 3-1: Back Panel
NOTE: The LINE port will be
active only if you have
traditional phone service.
