ARCTIC SILVER 97TEZ
97TEZ-0xxx-01

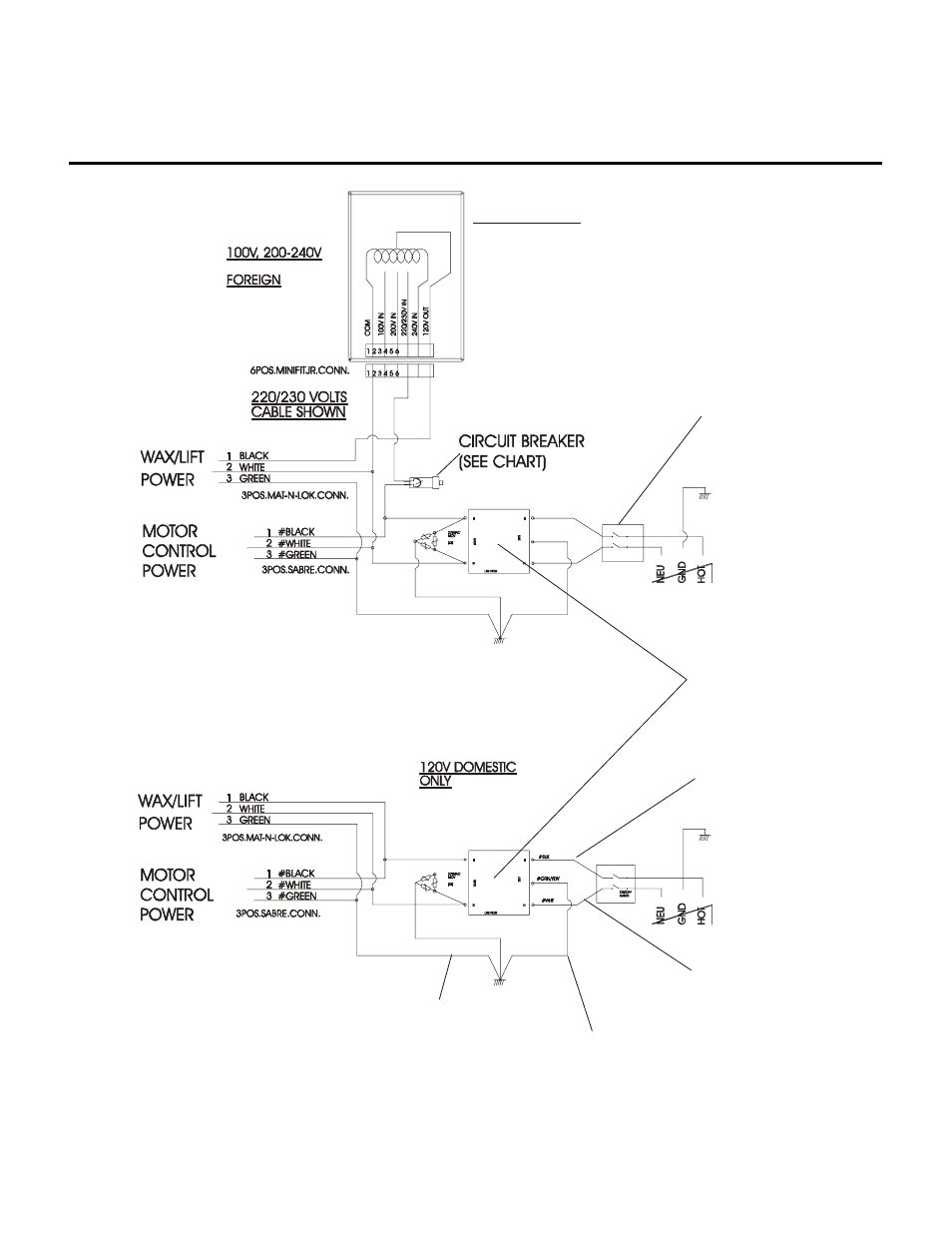

Power Components Schematic
S/N TWZ100000 and up
20 Amp Line Filter
0017-00003-0943
On/Off switch
0017-00032-0198
4” Black Wire
AK58-00081-0000
6” White Wire
AK58-00082-0000
5” Green/Yellow Wire
AK58-00083-0000
Xformer Bracket Assembly
(foreign units only)
AK58-00210-0000
MOV/Filter Cable Assy.
AK58-00224-0001
Line Cord (Plug End Changes)
0017-00003-0947 12’ 120v
0017-00003-0974 Domestic
0017-00003-0948 12’ 220v
0017-00003-0915 RT Angle Plug
0017-00003-0781 220v/60Hz
0017-00003-0696 Continental
0017-00003-0890 240v/59Hz UK
0017-00003-0996 240v+ AUS
