Power Feed 10R
www.lincolnelectric.com
[3]
A CLOSER LOOK
DESIGN
• Easy-to-read gauge for accurate drive roll tension producing a
reference point for the operator to set tension on the wire more accu-
rately.
Patented Drive Roll System
• The Power Feed 10R is a basic wire feeder with an optimized design,
which consists of an industrial motor driving the feeder
mecha-
nism in a sheet metal frame. The logic for controlling the wire feeder
resides in a PC board inside the robotic power source.
• Lower section contains gas solenoid and differential tachometer
amplifier allowing accurate motor speed control up to 100 ft. from
power source.
• Split wire guide provides easy wire loading and accessibility for
maintenance.
• Variety of drive rolls for any application.
• Tool-less access to routine maintenance points.
• High speed gear for most fine wire applications. Low speed gear for
applications requiring higher torque such as welding with
Innershield® electrode.
• Brass-to-brass electrode pairing connections for good connectivity
between welding torch and torch bushing.
• The feeder is self-threading for easy wire loading enabling operator
to feed wire without the need to remove drive rolls.
4-Drive Roll and Split Wire Guide System
QUALITY AND RELIABILITY
• Electronically protected from overloads.
• Feeder can be easily disassembled for servicing.
• Modular construction for easy servicing of individual units.
• Rugged steel and cast aluminum construction.
• Storage temperature for the Power Feed 10R is -40°C to +40°C.
• Operating temperature for the Power Feed 10R is -20°C to
+40°C.
• Three year warranty on parts and labor.
• Manufactured under a quality system certified to ISO 9001
requirements.
Brass Connector
4-Drive Roll
Split Wire Guide

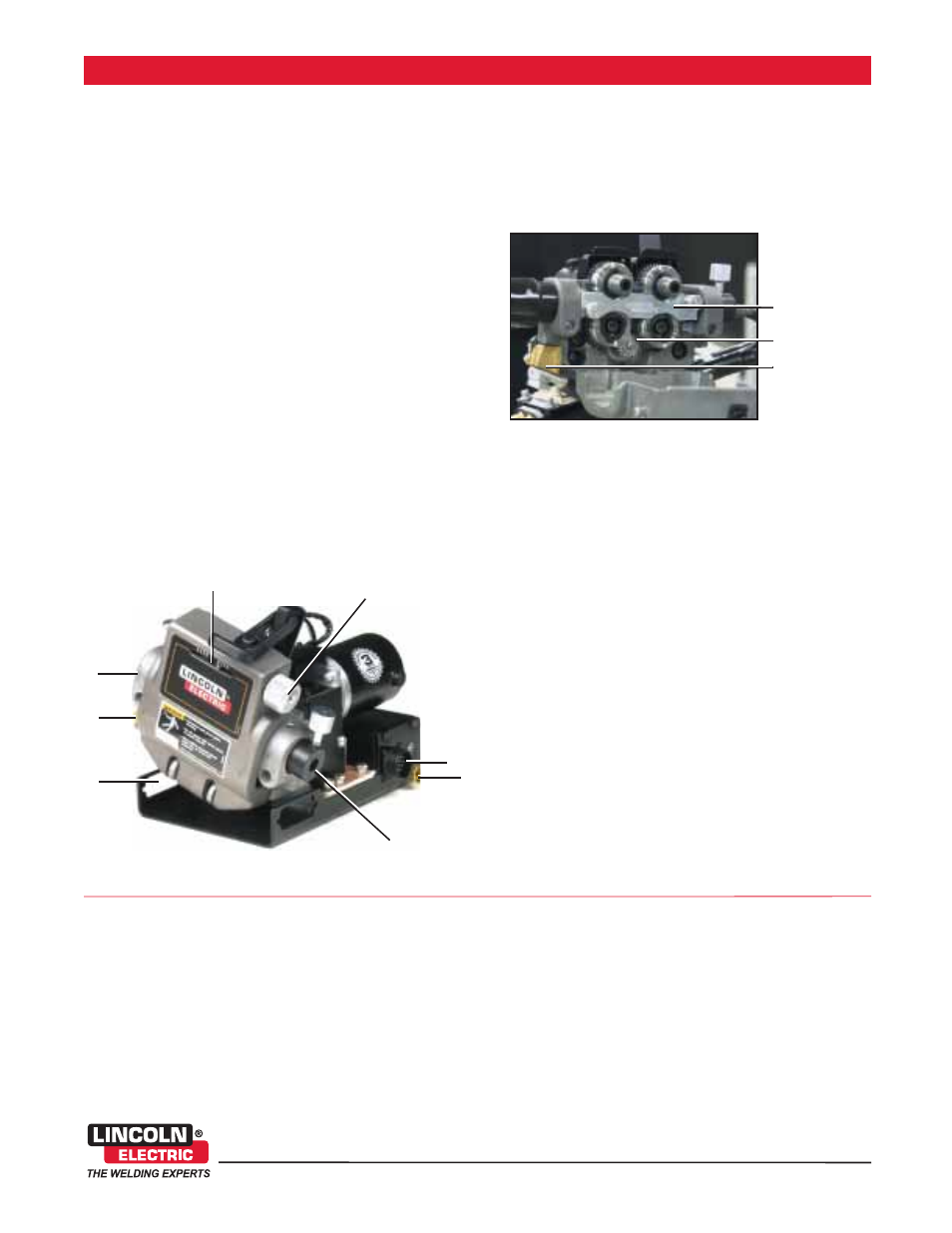

1. Drive Roll Tension Gauge
2. Drive Roll Tension Adjustment Knob
3. 14-Pin Receptacle for Control Cable (Amphenol)
4. CGA Gas Connection
5. Wire Inlet Guide
6. Optional Water Kit (Not Shown)
7. Drive Roll Cover
8. Gun Bushings (K1500-1)
1
2
3
4
5
6
7
8
Key Controls
