Page 7

STEP 3:

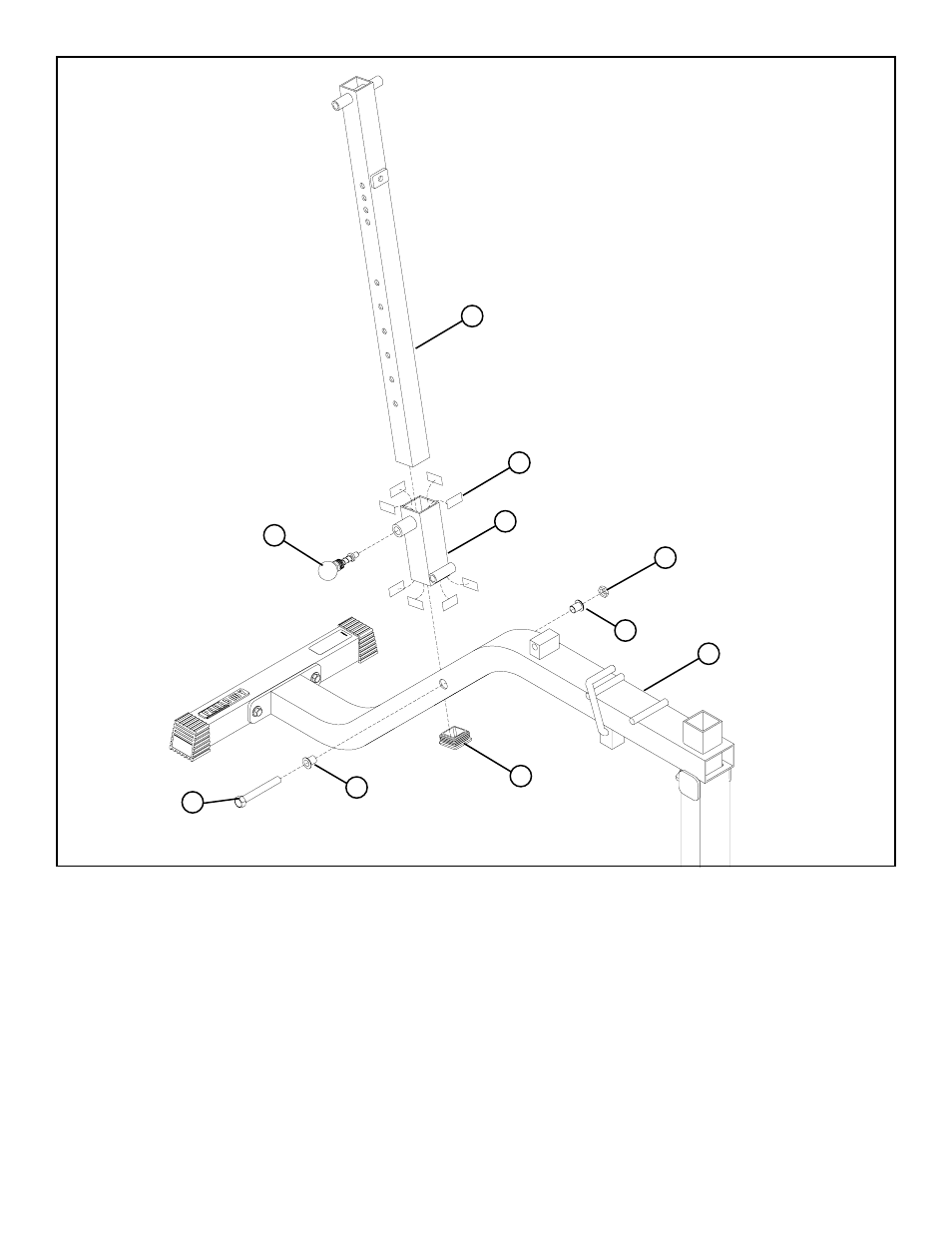

FIGURE 3

• Insert one 1-3/4” END CAP (12) into the end of the ADJUSTABLE SLIDE (2) as shown in FIGURE 3.

• Attach eight 3/4 X 1-1/2” GLIDES (28) to the inside of the ADJUSTABLE SLEEVE (3) as shown in FIGURE 3 using the

following steps:
• Thoroughly clean all surfaces where the 3/4 X 1-1/2” GLIDES (28) are to be attached.
• Remove the 3/4 X 1-1/2” GLIDES (28) from the paper backing and firmly apply them to all shown surfaces.

• SECURELY assemble one SPRING PIN ASSEMBLY (11) to the spring pin barrel on the ADJUSTABLE SLEEVE (3). See FIGURE 3.

• Pull back on the SPRING PIN (11) and CAREFULLY insert the ADJUSTABLE SLIDE (2) into the ADJUSTABLE SLEEVE (3) as shown

in FIGURE 3.

• Assemble the ADUSTABLE SLEEVE (3) to the BENCH FRAME (1) using one 1/2 X 3-3/4” BOLT (21), two 1/2” FLANGE SPACERS (27),

and one 1/2” LOW HEIGHT LOCK NUT (24) as shown in FIGURE 3.

1/2 X 3-3/4” 21

24 1/2” LOW HEIGHT
