Replacing Consumables
150
7

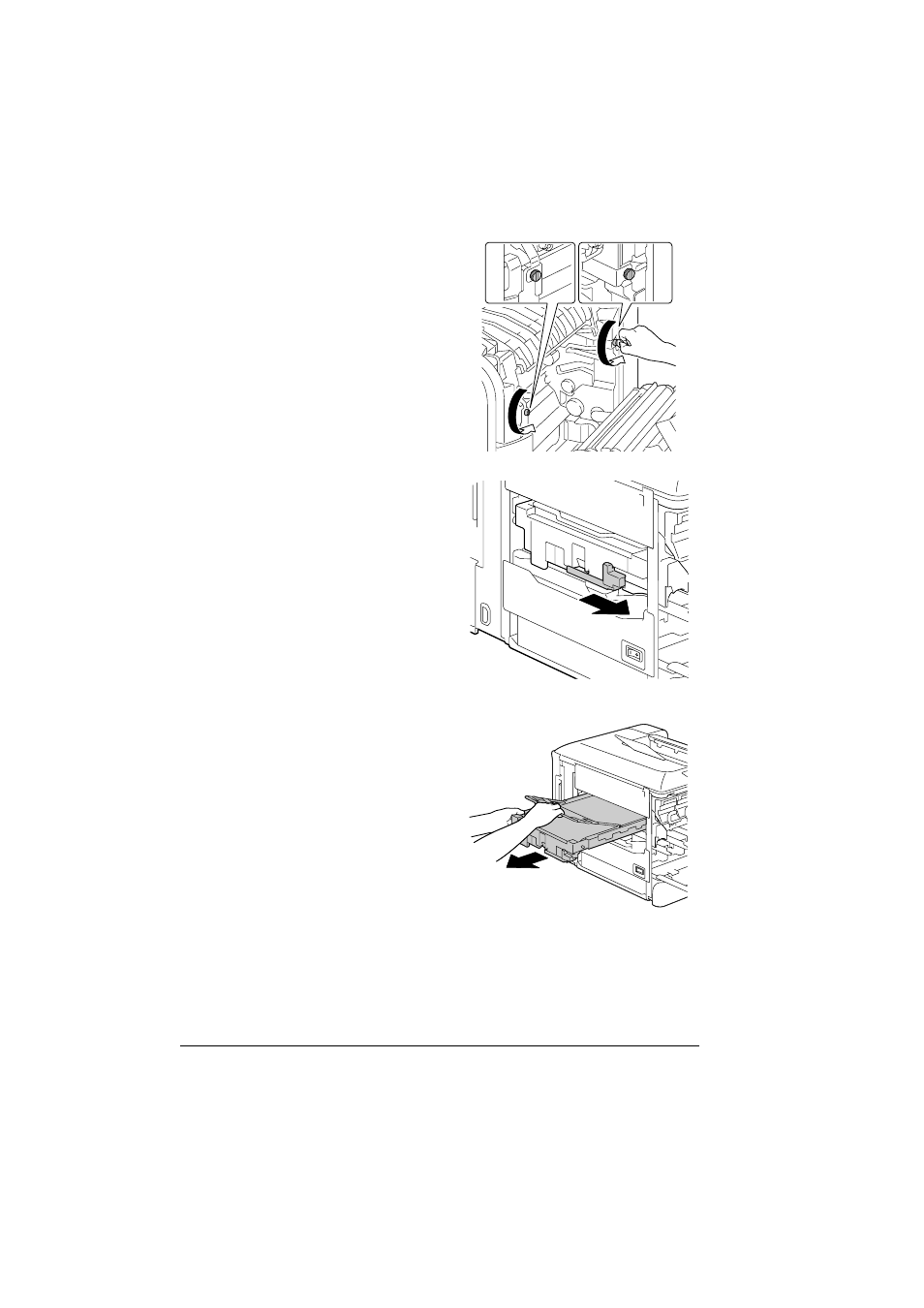

Use a coin to loosen the screws
securing the transfer belt unit.
8
On the left side, pull to the right
the blue shutter lever for the
transfer belt unit.
"
Do not remove the blue
lever.
9
From the side where the left side
cover was removed, hold the
arm, and then carefully pull out
the transfer belt unit.
