3
DEMO MANUAL DC101
SMART BATTERY CHARGER
REFERENCE
DESIGNATOR
QUANTITY PART NUMBER DESCRIPTION VENDOR TELEPHONE
C1, C8, C17, C19 4 12065C104KATMA 0.1
µ
F 50V Chip Capacitor AVX (803) 946-0362
C2, C18 2 TAJB106M010 10
µ
F 10V Tantalum Capacitor AVX (207) 282-5111
C3 1 12063G334ZAT2 0.33
µ
F 25V Chip Capacitor AVX (803) 946-0362
C4, C5 2 12063G105ZATMA 1
µ
F 25V Chip Capacitor AVX (803) 946-0362
C6 1 12065C473KAT 0.047 µ F 50V 10% Chip Capacitor AVX (803) 946-0362
C7 1 12063C153KAT2 0.015 µ F 25V 5% Chip Capacitor AVX (803) 946-0362
C9 1 12063G474ZAT2 0.47
µ
F 25V Chip Capacitor AVX (803) 946-0362
C10, C11, C12, C20 4 THCS50E1E106Z 10 µ F 25V Ceramic Capacitor Marcon (847) 696-2000 x374
C14, C15 2 1206A330KAT2 33pF 50V Chip Capacitor AVX (803) 946-0362
C16 1 VJ1206A101KXA 100pF 50V Chip Capacitor Vitramon (203) 268-6261
D1 1 SF1-BR Red LED Data Display Product (800) 421-6815
D2 1 SF1-G Green LED Data Display Product (800) 421-6815
D3, D5 2 MBRS340T3 Diode Motorola (602) 244-3576
D4, D6 2 BAS16LT1 Diode Motorola (602) 244-3576
J1 1 AMP-787441-1 Connector AMP (717) 780-4409
J2 1 CUI-PJ-002A Connector Cui-Stack (503) 643-4899
JPR1 1 3801S-12-G1 12-Pin Header Jumper Comm Con Conn. (818) 301-4200
L1 1 CTX20-4 20 µ H Inductor Coiltronics (407) 241-7876
Q1,Q2, Q3 3 2N7002LT N-Channel MOSFET Motorola (602) 244-3576
Q4 1 MMBT3904LT1 NPN Transistor Motorola (602) 244-4342
R1, R4, R16 3 CR32-3321F-T 3.32k 1/8W 1% Resistor AVX (803) 946-0524
R2 1 CR32-3010F-T 301
Ω
1/8W 1% Resistor AVX (803) 946-0524
R3, R18 2 CR32-1001F-T 1k 1/8W 1% Resistor AVX (803) 946-0524

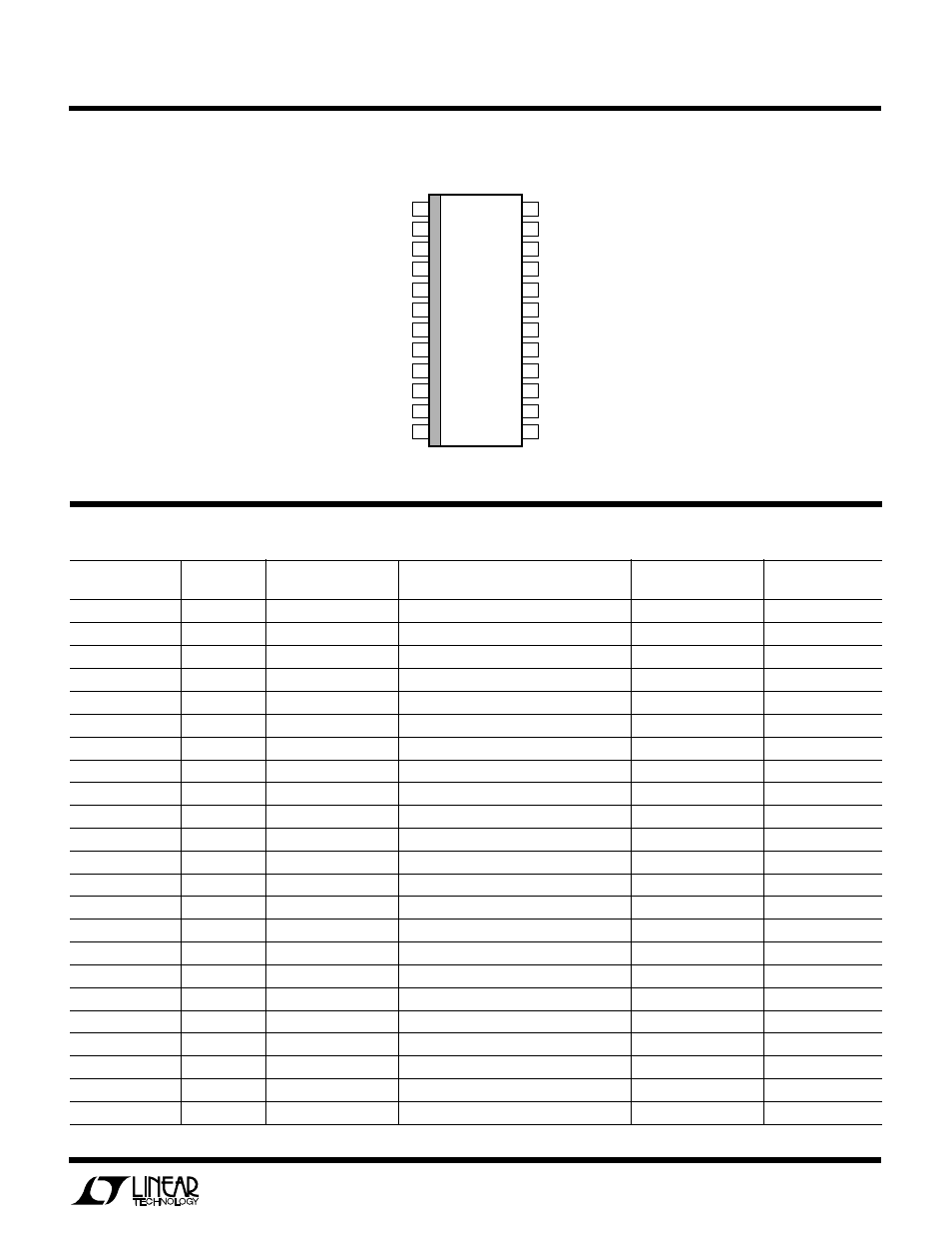

PACKAGE DIAGRA
W
1
2
3
4
5
6
7
8
9
10
11
12
TOP VIEW
SW PACKAGE
24-LEAD PLASTIC SO WIDE
24
23
22
21
20
19
18
17
16
15
14
13
GND
SW
BOOST
GND
GND
UV
GND
OVP
CLP
CLN
COMP1
SENSE
GND
GND
V CC1
V
CC2
V CC3
PROG
V
C
UV
OUT
GND
COMP2
BAT
SPIN
LT1511CSW
PARTS LIST
