Package Contents
1. KVM-0213
2. User Manual
3. Quick Installation Guide
Requirements
Console
Š A VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be
using on any computer in the installation
Š A PS/2 Mouse
Š A PS/2 Keyboard
Computers
The following equipment must be installed on each computer that is to be connected to the
system:
Š A VGA, SVGA or Multisync video port
Š A 6-pin Mini-DIN (PS/2 style) mouse port
Š A 6-pin Mini-DIN (PS/2 Style) keyboard port

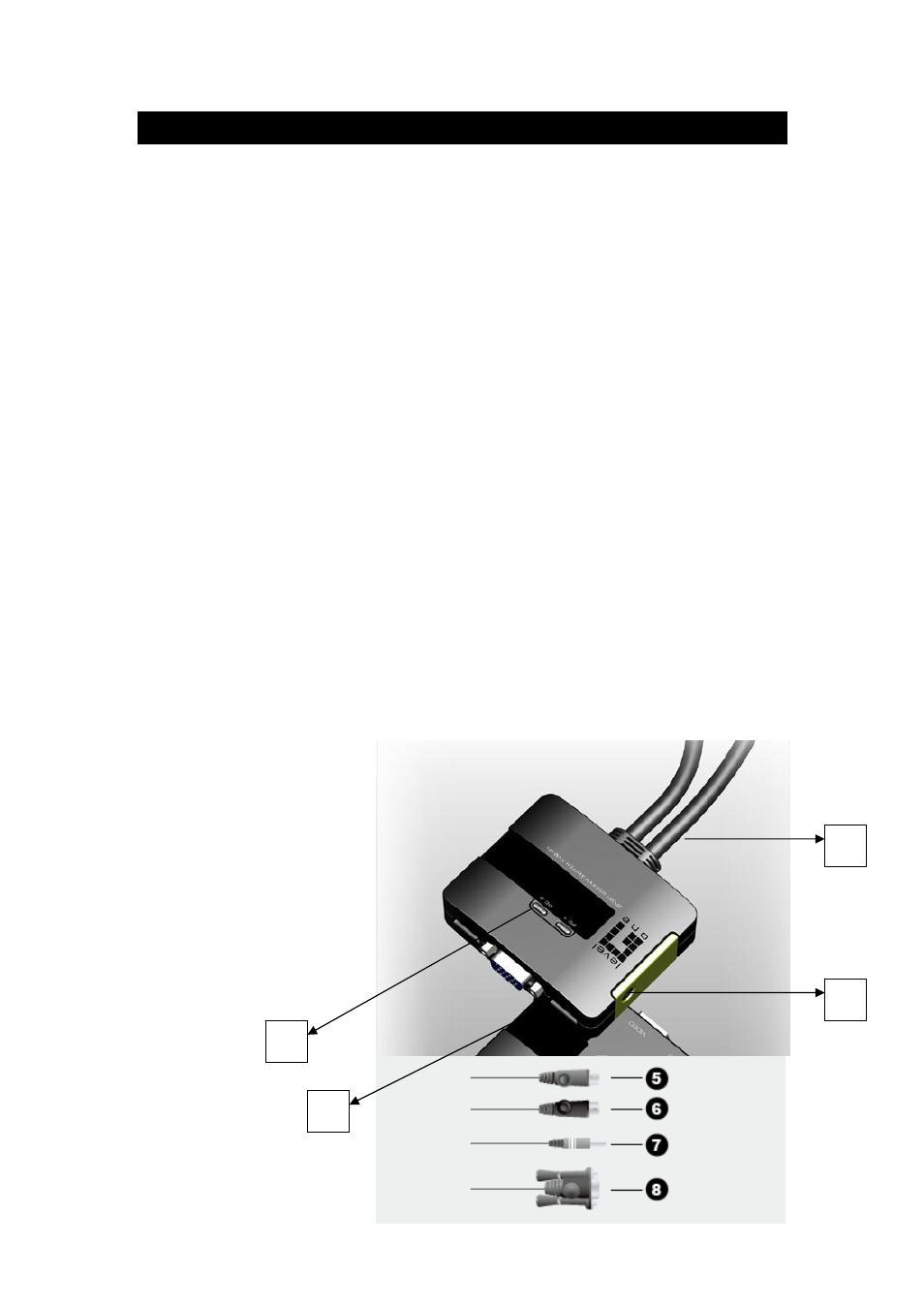

Hardware Review
1. Port LEDs
2. KVM Cables
3. Speaker Jack
4. Console Ports
5. PS/2 mouse connector
6. PS/2 keyboard connector
7. Speaker Plug
8. Video Connector
3
2
4
1
