Figure 5-47: dsl connection – Linksys HG200 User Manual
Page 52
46
Chapter 5: Configuring the Home Wireless-G Gateway
The Status Tab
Home Wireless-G Gateway
The DSL Connection Tab
This screen shows information about the DSL connection and the PVC connection.
DSL Status
This section shows the following: DSL Status, DSL Modulation Mode, DSL Path Mode, Downstream Rate,
Upstream Rate, Downstream Margin, Upstream Margin, Downstream Line Attenuation, Upstream Line
Attenuation, Downstream Transmit Power, and Upstream Transmit Power.
PVC Connection
After you select the PVC connection number from the drop-down menu, you see the following information:
Encapsulation, Multiplexing, QoS, Pcr Rate, Scr Rate, Autodetect, VPI, VCI, Enable status, and PVC Status.
Click the Refresh button if you want to refresh the displayed information.

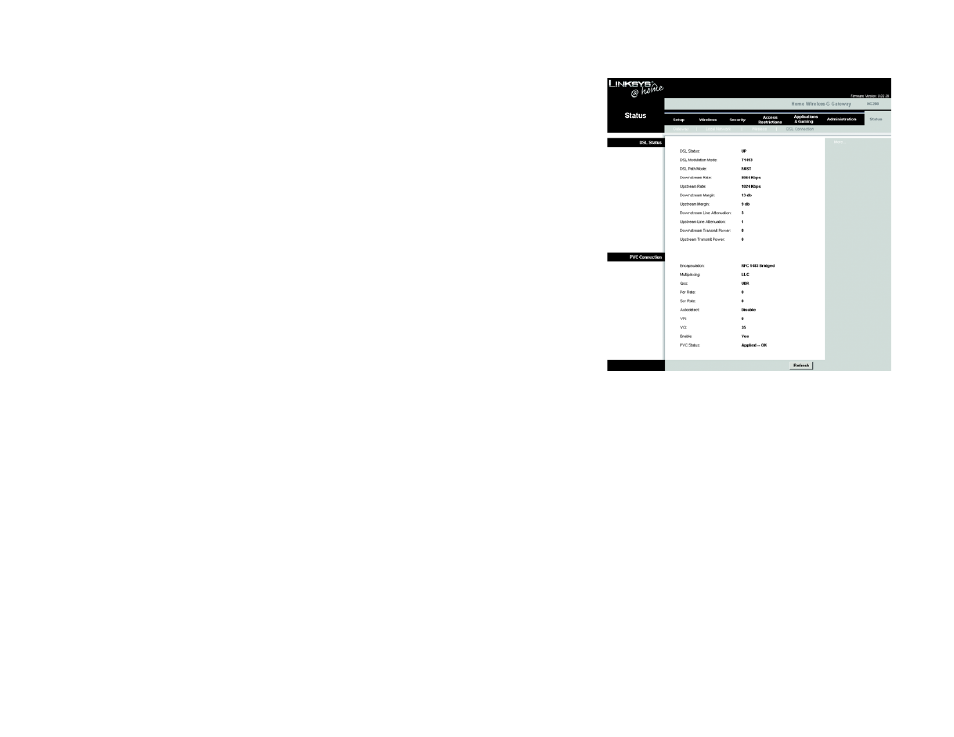

Figure 5-47: DSL Connection
