Leupold VX-II - Manual (Page 32)

32
1 . Turn the focus ring counterclockwise (when viewing though the
eyepiece) until it stops .
2 . Turn the focus ring clockwise until the “10m” mark aligns with the
indicator mark on the bell of the scope .
3 . From this point, all readings of the focus ring are in numerical
order when the ring is turned clockwise from the shooting
position .
4 . Adjust the ring as you would a standard adjustable objective
model .
INSTALLINg A LENS ATTACHMENT
Many Leupold scopes offer threaded objective and eyepiece rings to
allow for the attachment of lens covers and a variety of Alumina ®
accessories . These attachments thread directly into the objective or
eyepiece rings . Turn until finger tight – do not over tighten .

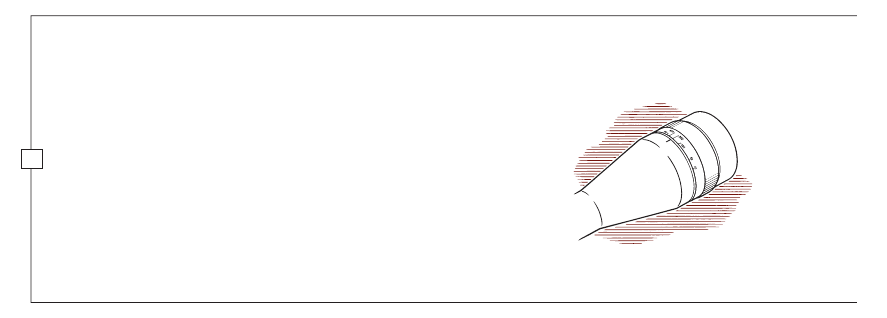

To adjust the parallax distance,
turn the focus ring.
