Job Information Type:
631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • D0609
Architectural Decorative
4R28
Page 2 of 2 Pendalux Traditional 28" Diameter Body 4-26/32/42 Triple Tube
Features
1. Diffusing Reflector: White translucent acrylic, 3/16” thick.
2. Inner Dirt Shield: White translucent acrylic, 1/8” thick.
3. Chassis: Steel 20 gauge, semi-gloss white powder-coat finish.
4. Suspension: Swivel (central) stem, 5/8” steel tube. Canopy, steel, 7” Dia.
fastened internally, no exposed hardware. Permits installation on ceilings
with slope of up to 45°. Complies with California Code.
5. Rods: Reflector Bowl is suspended from a central point on three 3/16”
steel tubes.
6. Lampholder: Multi-wattage, 4-pin, will accept either GX24q-3 or GX24q-4
lamp base.
7. Flange Trim: Steel 20 gauge, Plated or Painted finish.
Lamping (by others)
Compact Fluorescent: Triple Tube, 26, 32, or 42 Watts.
General Electric Osram/Sylvania Philips
26W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F26TBX/*/A/4 CF26DT/E/IN/* PL-T26W/*/4P/ALTO
32W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F32TBX/*/A/4P/EOL CF32DT/E/IN/* PL-T32W/*/4P/ALTO
42W Triple Tube 4-Pin (Amalgam) Compact Fluorescent Lamp
F42QBK/*/A/4P/EOL CF42DT/E/IN/* PL-T42W/*/4P/ALTO
*Manufacturers’ color temperature designation.
Electrical
Ballast: Electronic, 2-Lamp HPF, Class P, Programmed Start. Universal Voltage
120/277V, Multi-Wattage 26/32/42W.
4 Lamp
26 Watt 32Watt 42Watt
Voltage 120V 277V 120V 277V 120V 277V
Total Input Watts 112 110 138 134 182 180
Max. Line Current(amps) 0.92 0.40 1.16 0.52 1.52 0.64
Power Factor >0.95 >0.95 >0.98 >0.98 >0.98 >0.98
Ballast Factor 1.02 1.02 1.00 1.00 0.98 0.98
THD<10% Minimum Starting Temperature: 0°F/-18°C
Mounting
Mounts directly to 4” outlet box, using crossbar hanger, supplied.
Labels
cULus Suitable for Damp Locations.
Application Data
28 Inch Diameter
30' x 30' x 10' Space
Luminaire
Spacing: 10’ x 10’
Susp. Dist. 28”
4 Lamps 26W 32W 42W
TTT TTT TTT
Illum. (FC) Maint. 26 33 45
Lum. Ratio 15/1 15/1 14/1
Watts/Sq. Ft. 1.10 1.36 1.86
Reflectancies: 80% Ceiling, 50% Walls, 20% Floor.
Light Loss Factor = .75 (.88 BF x .85)
FC (footcandles) at 30” work plane.
ANGLE MEAN CP LUMENS
0 309
5 311 30
10 307
15 301 85
20 293
25 283 131
30 269
35 252 158
40 233
45 215 166
50 195
55 172 154
60 148
65 124 123
70 101
75 76 82
80 56
85 37 45
90 35
CERTIFIED TEST REPORT NO. 4R28442A
COMPUTED BY LSI PROGRAM **TEST-LITE**
LIGHTOLIER INDIRECT/DIRECT PENDANT FIXTURE
CAT. #4R28442APBU, 28” DIFFUSER
4-42W T/E OSRAM LAMPS. LUMEN RATING = 3200 LMS.
2-ADVANCE BALLAST #ICF-2S42-M2-LD, 120 VAC
TESTED ACCORDING TO IES PROCEDURES. TEST DISTANCE EXCEEDS FIVE
TIMES THE GREATEST LUMINOUS OPENING OF LUMINAIRE.
ANGLE MEAN CP LUMENS
90 35
95 169 236
100 494
105 819 845
110 1064
115 1245 1234
120 1417
125 1585 1408
130 1692
135 1744 1349
140 1785
145 1825 1146
150 1863
155 1875 862
160 1838
165 1755 491
170 1587
175 1471 146
180 1584

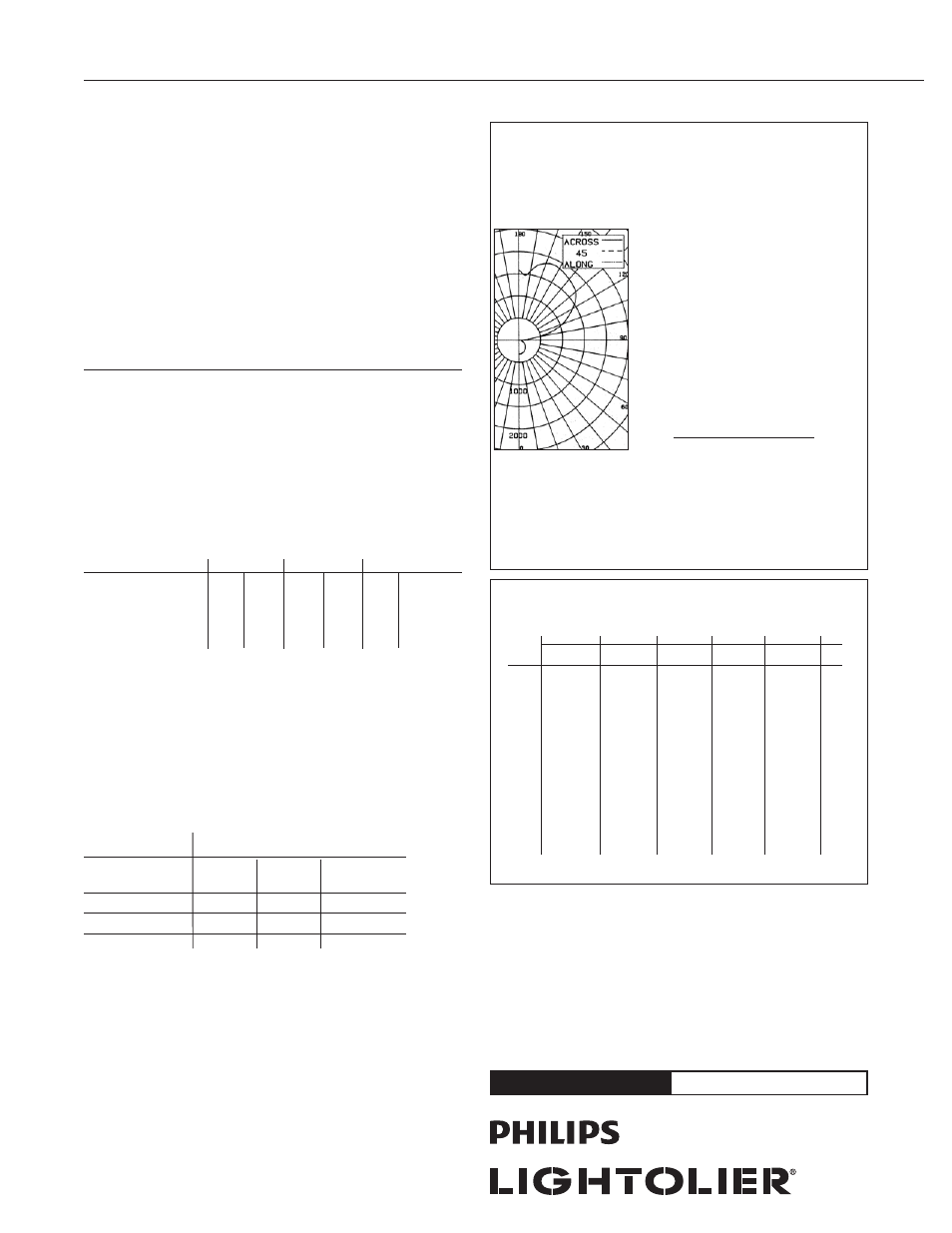

C ANDLEPOWER SUMMARY
DATE: MAR. 1, 2001
PREPARED FOR:
LIGHTOLIER, FALL RIVER, MA
COEFFICIENTS OF UTILIZATION ZONAL CAVITY METHOD
%EFFECTIVE FLOOR CAVITY REFLECTANCE = .20
80 70 50 30 10
50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0
1 .58 .55 .53 .50 .48 .46 .37 .35 .34 .24 .23 .22 .12 .12 .12 .08
2 .50 .46 .43 .44 .41 .38 .32 .30 .28 .21 .20 .19 .11 .10 .10 .07
3 .44 .40 .36 .39 .35 .32 .28 .26 .24 .18 .17 .16 .09 .09 .08 .06
4 .39 .34 .30 .34 .30 .27 .25 .22 .20 .16 .15 .13 .08 .08 .07 .05
5 .34 .29 .26 .30 .26 .23 .22 .19 .17 .15 .13 .12 .08 .07 .06 .04
6 .31 .26 .22 .27 .23 .19 .20 .17 .15 .13 .11 .10 .07 .06 .05 .04
7 .27 .22 .19 .24 .20 .17 .18 .15 .13 .12 .10 .09 .06 .05 .05 .03
8 .25 .20 .16 .22 .17 .15 .16 .13 .11 .11 .09 .07 .06 .05 .04 .03
9 .22 .17 .14 .20 .16 .13 .14 .12 .10 .10 .08 .07 .05 .04 .04 .02
10 .20 .16 .13 .18 .14 .11 .13 .10 .08 .09 .07 .06 .05 .04 .03 .02
DETERMINED IN ACCORDANCE WITH CURRENT IES PUBLISHED PROCEDURES
ZONAL LUMENS AND PERCENTAGES
ZONE LUMENS % LAMP %LUMINAIRE
0-30 358 2.61 3.20
0-40 588 4.29 5.28
0-60 1046 7.80 9.59
0-90 1373 10.73 11.20
40-90 784 6.14 6.56
60-90 327 2.55 2.88
90-180 8040 62.81 88.80
0-180 9412 73.54 100.00
** EFFICIENCY = 73.5% **
