Lightolier 4X4PL User Manual
4x4pl, Calculite, Matrix

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2009 Philips Group • A0409
Job Information
Type:
Job Name:
Cat. No.:
Lamp(s):
Notes:
Calculite
®
Matrix
®
Lensed Downlight
4X4PL
Page 1 of 2

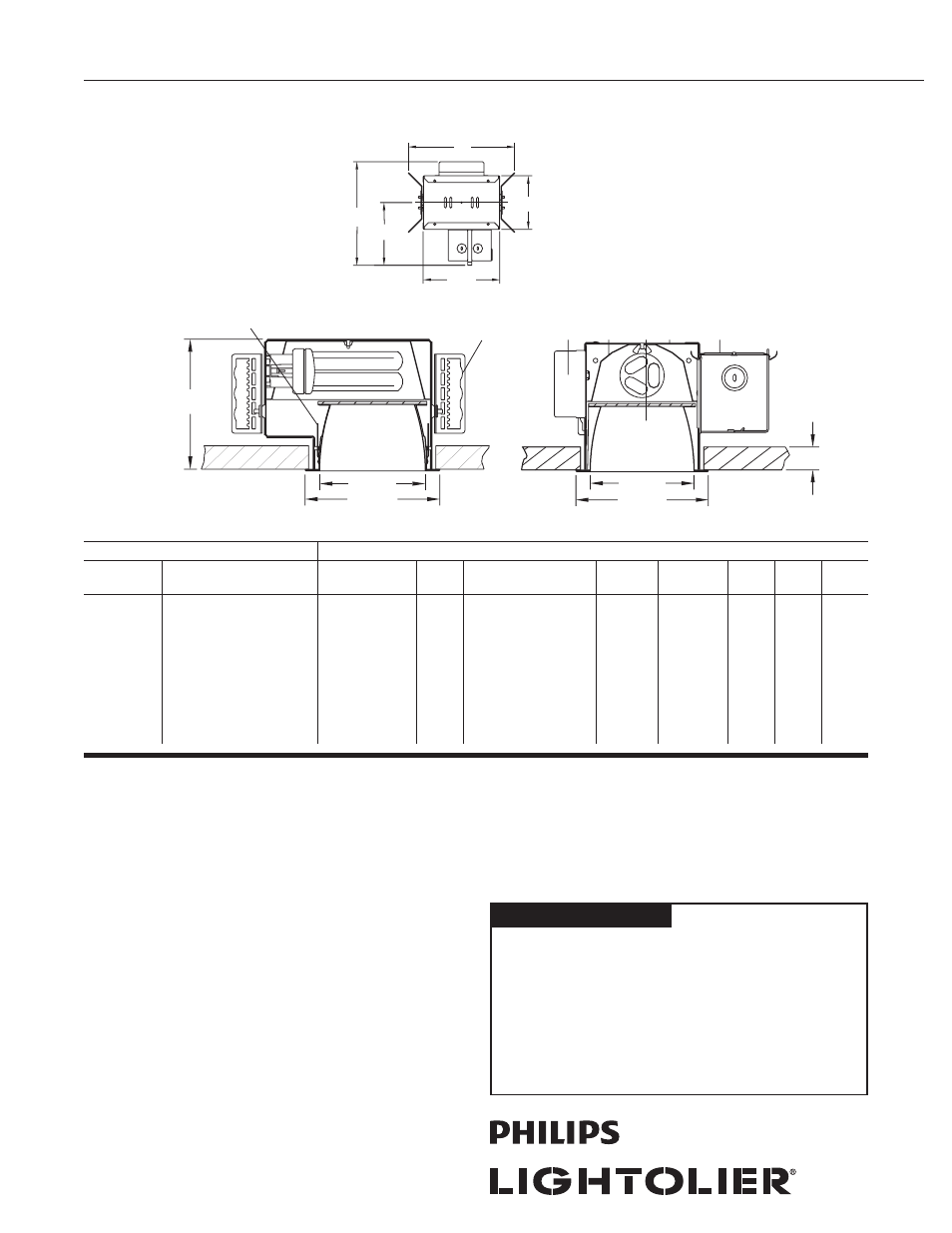

4 1/2" X 4 1/2" Square Aperture (1) 26/32W Triple Tube Prismatic Lens
9 5/8"
10"
5 7/8"
7 1/8"
5"
Top View
Features
1. Reflector Trim: Pre-finished aluminum with low iridescence clear finish.
Overlap flange accommodates different ceiling types. Precision mitered
flange corners. Prismatic spread lens, 5/32" thick tempered glass.
2. Upper Reflector: High efficiency, 97%, Specular Clear.
3. Housing: 22 Ga. galvanized formed steel. Centerline notches and holes
for consistent alignment of multiple fixtures. Accommodates ceilings up to
1 1/4" thick.
4. Ballast Assembly: Door-mounted for easy service, allows replacement from
inside of fixture.
5. Torsiontite Springs: Precision-tooled steel springs secure reflector trim
to housing for quick tool-less installation. Positive tension holds flange tight
against ceiling.
6. J-Box: 14 Ga. galvanized steel. Accessible from inside and outside of the
fixture. Outside J-box door is hinged for easy access.
7. Mounting Brackets: 16 Ga. steel. Adjustable from inside fixture. Utilize
3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.
Options & Accessories
Chicago Plenum with Fuse (slow blow): add LCF suffix to frame-in kit,
consult factory for specifications.
Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA".
Electrical
UL Listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply
conductors.
Note: For complete ballast data and lamp / ballast compatibility refer to “Ballast"
specification sheet.
General
UL Listed for wet locations, I.B.E.W. Union Made.
5
5 1/2"
4 1/2"
5 3/4"
7
1
2
4
3
6
1 1/4" Max.
Ceiling Thickness
4 1/2"
5 3/4"
Ceiling Cutout: 5 1/8" L X 5 1/8" W
Trim Kits
Frame-In Kits
Reflector
Trims
Finish / Flange
Frame-In Kits
Type
Ballast
Input
Voltage
Triple Tube
Wattage
Length Width
Height
4X4PLCLW
Specular Clear / White
4X4132HU
Non-IC
Electronic
120/277V
26/32W
10"
9 1/2"
5 3/4"
4X4PLCLP
Specular Clear / Polished
4X4132HUEM4E
Non-IC
Electronic - Emergency
120/277V
26/32W
10"
11"
5 3/4"
4X4PLCCLW
Comfort Clear / White
4X4132HCU3
Non-IC
PowerSpec
®
HDF Dimming 120/277V
26/32W
10"
9"
5 3/4"
4X4PLCCLP
Comfort Clear / Polished
4X4132HJUM7
Non-IC
Mark 7
®
Dimming
120/277V
26/32W
10"
9 1/4"
5 3/4"
4X4PLCCDW
Comfort Clear Diff. / White
4X4132HJ1MX
Non-IC
Mark 10
®
Dimming
120V
26/32W
10"
9 1/4"
5 3/4"
4X4PLCCDP
Comfort Clear Diff. / Polished
4X4132HJ2MX
Non-IC
Mark 10
®
Dimming
277V
26/32W
10"
9 1/4"
5 3/4"
4X4PLCCGP
Clear Corrugated / Self Flange
4X4PLWHW
White / White
