Multi-information Displays & Monitors
(continued)
The standard Energy Monitor shows a simplified representation of the approximate
flow of energy within the hybrid system. The display does not show all of the
components of the system. The display is located at the center of the dashboard.
The Energy Monitor display changes as the LS 600h L transitions through different
driving conditions. The Energy Monitor display will show the changes in energy and
power flow through the system at a given time as the vehicle is driven.
The Energy Monitor
Energy Monitor description
Orange =
Mechanical
drive power
Yellow =
Electrical
drive power
Green =
Electrical /
regenerative
power
Hybrid battery status.
Energy flow
• "ELECTRIC MOTOR" represents Electric Starter Motor/Generator (MG1) and Electric Drive
Motor/Generator (MG2) together.
• "ENGINE" represents the V8 Gasoline Engine
Press to go to the Consumption Monitor.
(continued on next page)

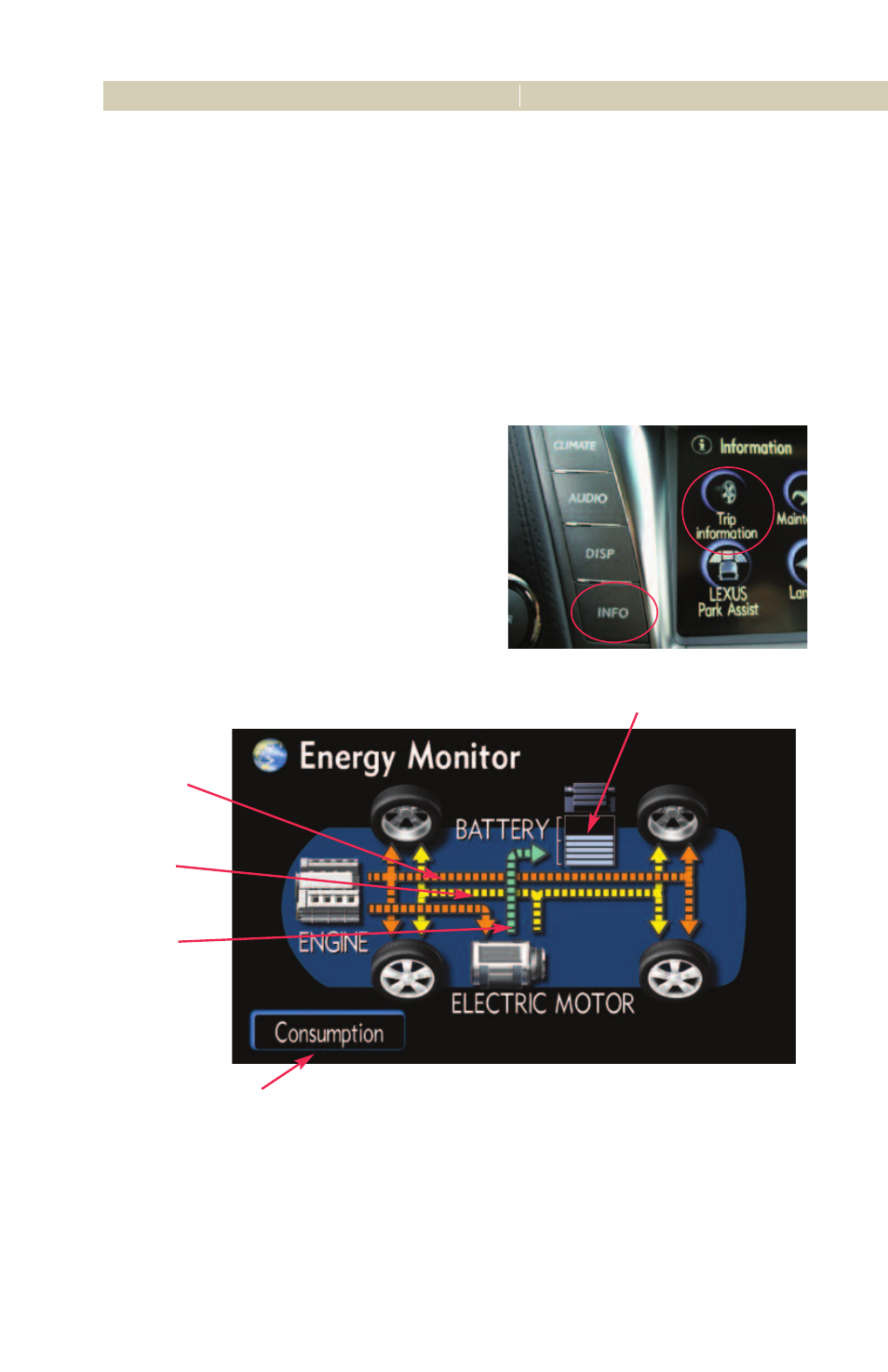

To access the Energy Monitor,
press the “INFO” button located on the left
edge of the display. On the touch screen that
appears, touch the “Trip Information” button.
HYBRID OVERVIEW
