Idealarc DC-600
www.lincolnelectric.com [2]
FEATURES
PERFORMANCE
• The Idealarc® DC-600 is a multiprocess DC arc welding power
source that produces outstanding arc characteristics on both
constant voltage and constant current processes. This provides
great welding versatility in a single power source.
• The Idealarc DC-600 is designed for GMAW (MIG), FCAW, and
submerged arc welding processes within the capacity of the
machine, plus the capability of stick, and air carbon arc gouging
up to 3/8” (10mm) diameter. It produces outstanding performance
with a single range continuous control potentiometer.
FEATURES
• 3-position field or factory installed Multi-Process Switch option
allows quick change from electrode positive or negative
semiautomatic/automatic wire feed welding to stick, TIG or air
carbon arc gouging.
• Air carbon arc gouge with up to 3/8" (10mm) diameter carbons.
Key Controls
QUALITY AND RELIABILITY
• Fan-cooled with electronic and thermostatic protection from
current overload and excessive temperatures.
• Manufactured under a quality system certified to ISO 9001
requirements and ISO 14001 environmental standards.
• Three-year warranty on parts and labor.
• Seven-year warranty on the power rectifier.

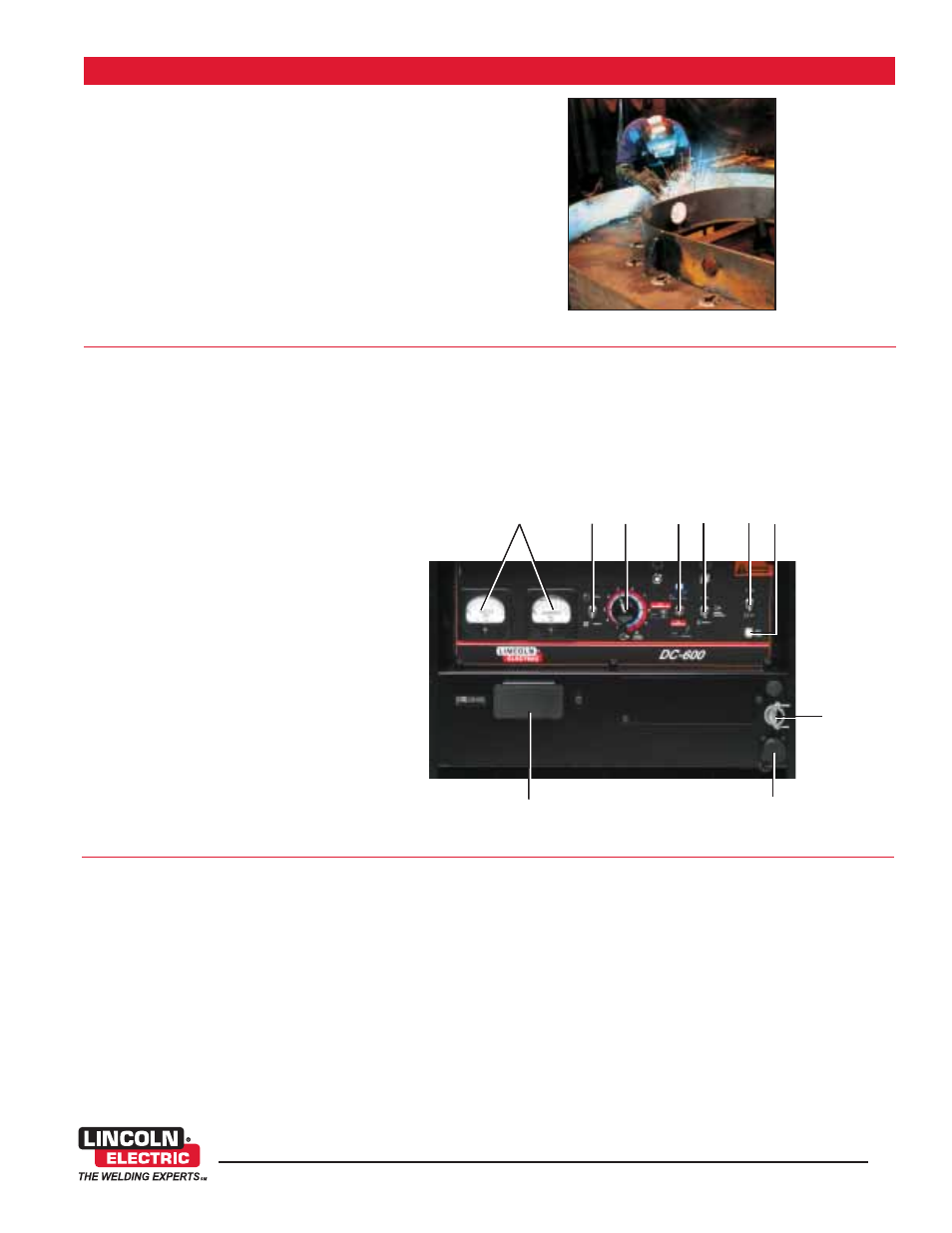

1. Ammeter/Voltmeter
2. Local/Remote Output Control
3. Output Control Potentiometer
4. Mode Selection Switch
5. Weld Terminals On or Remotely Controlled
6. On/Off Switch
7. Power Source Pilot Light
8. Strain Relief for Terminal Strip Connection
9. 14-Pin MS-Style Connector for Wire
Feeder Connection
10. 115 VAC, 15A Covered Outlet
1. 2. 3. 4. 5. 6. 7.
9. 10.
8.
