InstAllAtion Reference Sheet
Model - Strike
S3.10.4
S3.10.8
S3.12.4
S3.12.8
S3.15.4
S3.15.8
Nominal Impedance
4
Ω
8
Ω
4
Ω
8
Ω
4
Ω
8
Ω
Voice Coil Diameter
2.0”
2.0”
2.0”
2.0”
2.0”
2.0”
FS (Hz)
33
32
32
28
27
26
QTS
0.454
0.41
0.65
0.53
0.62
0.59
VAS (cu.ft.)
1.1
1.2
2.2
2.6
4.6
5.3
VAS (liter)
31.7
34
61.3
73.7
130
149.1
Xmax (in.)
0.29
0.26
0.3
0.27
0.29
0.26
Xmax (mm)
7
7
8
7
7
7
SPL (dB M/W)
85.6
86.2
86.8
86.8
87.9
88.0
Power Handling (RMS)
300
300
300
300
300
300
Power Handling (Max)
900
900
900
900
900
900
Mounting Dia. (in.)
9
9⁄
16
9
9⁄
16
11
9⁄
16
11
9⁄
16
14
9⁄
16
14
9⁄
16
Mounting Dia. (mm)
242
242
293
293
369
369
Mounting Depth (in.)
5 3⁄16
5 3⁄16
5 3⁄4
5 3⁄4
7
7
Mounting Depth (mm)
132
132
146
146
178
178
Speaker Dis. (cu. ft.)
0.06
0.06
0.09
0.09
0.113
0.113
Speaker Dis. (liters)
1.7
1.7
2.5
2.5
3.2
3.2
Sealed Box Vol. (cu. ft.)
0.5
0.5
1
1
2
2
Sealed Box Vol. (liters)
14.2
14.2
28.3
28.3
56.6
56.6
specificAtions
WIRING CONFIGURATIONS
FeAtures
• Complex Thermoplastic Elastomer Surround –
Advanced surround material for max cone isolation and
ultimate control.
• Kapton Matrix Former – Ultralight Kapton material
with matrix construction for zero flex and seriously tight
sound.
• Injection Molded Polypropylene Cone – Provides a
rigid, lightweight cone for excellent sound quality and
minimum flexing.
• X2 Spiders – Twice the control, even at max excursion.
• Flow Grate – Cools the voice coil for proven torture
tested performance.
• Woven-In Tinsel Leads
ChecK our website for updAtes on your products.
www.LightningAudio.com

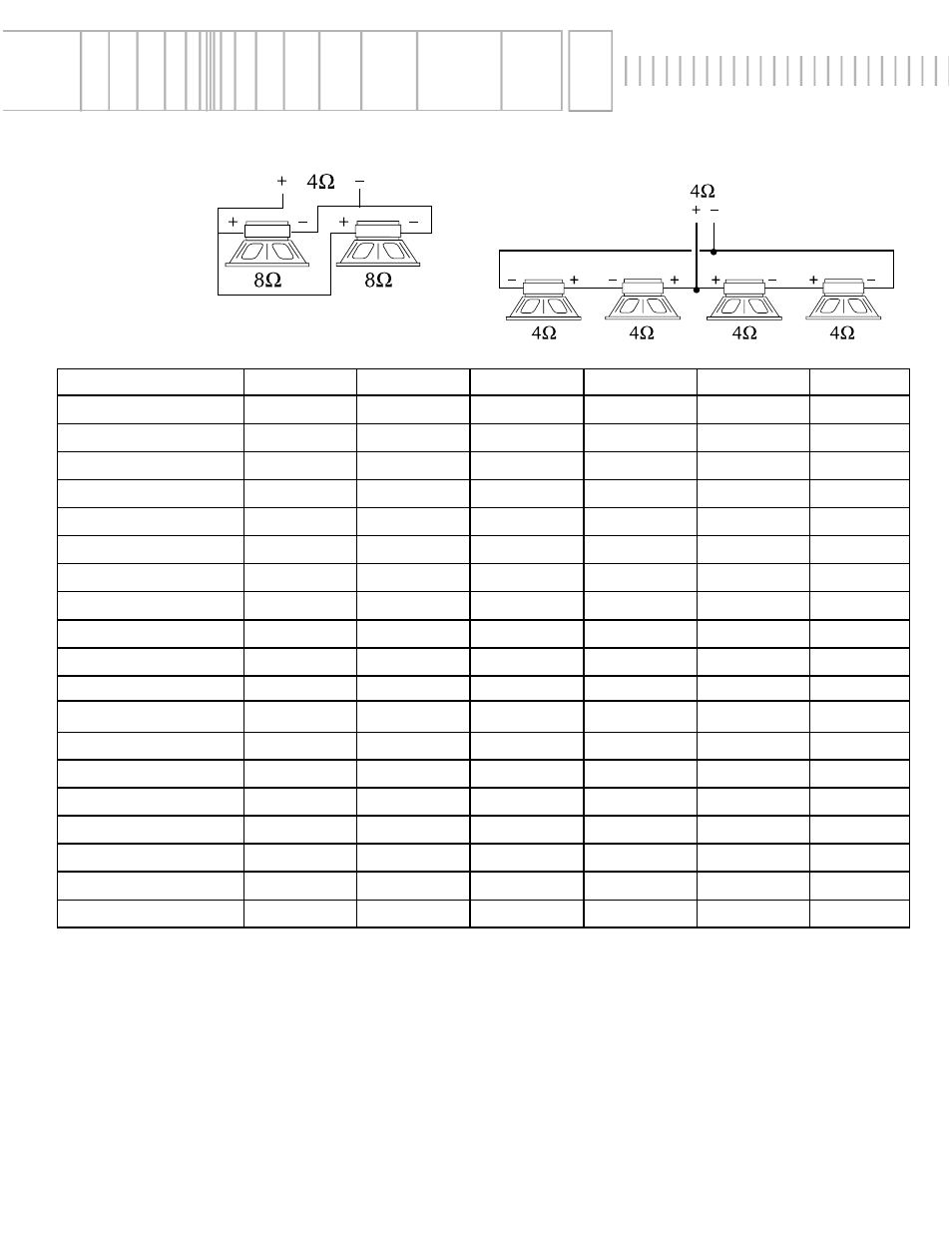

Series/Parallel Wiring
Câblage/en série/parallèle
Cableado en serie/paralelo
Reihen-/parallelgeschaltet
Cablaggio di serie/parallelo
Parallel Wiring
Câblage en parallèle
Cableado en parale-
lo
Parallelgeschaltet
Cablaggio di paral-
lelo
