Pag. 26

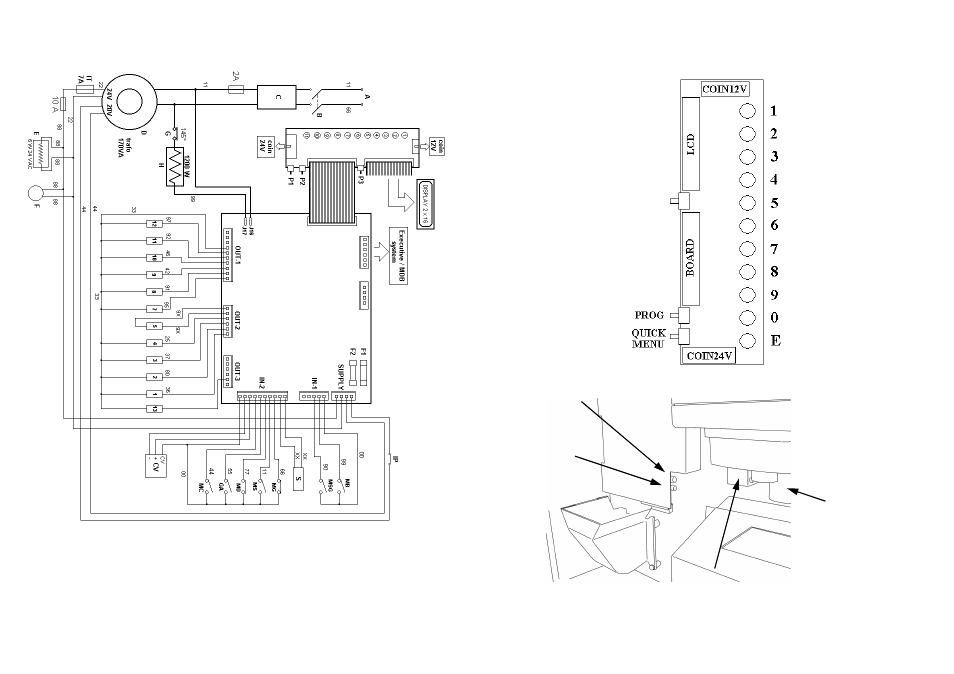

ELECTRIC DIAGRAM
WIRES’ COLOR LEGEND
00 Black 66 Blue
11 Brown 77 Violet
22 Red 88 Grey
33 Orange 99 White
44 Yellow XX Pink
55 Green YY Light blue
Pag. 7
KEYBOARD
CUPS
RELEASING
MOTOR
CUP’S
RELEASING
MICROSWITCH
“PROG”
BUTTON
“QUICK”
BUTTON
